Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps With Illuminated Entry >> Grove Box, Trunk Lamp and Cigarette Lighters >> Part 1 of 4

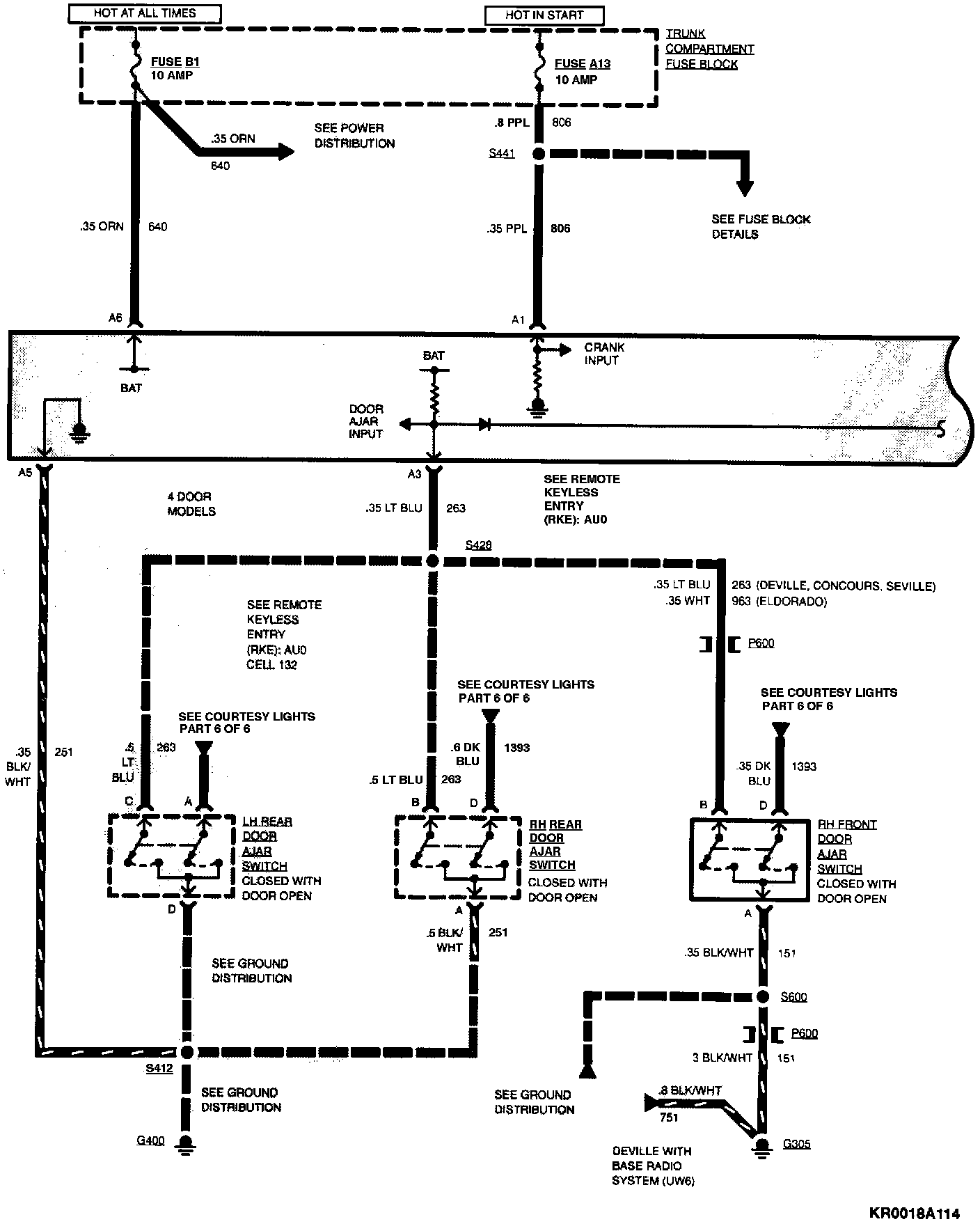

Part 1 of 4

Interior Lamps With Illuminated Entry:
