Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> U.S.A Harness >> Turn/Hazard/Stop Lights >> Part 1 of 4

Part 1 of 4

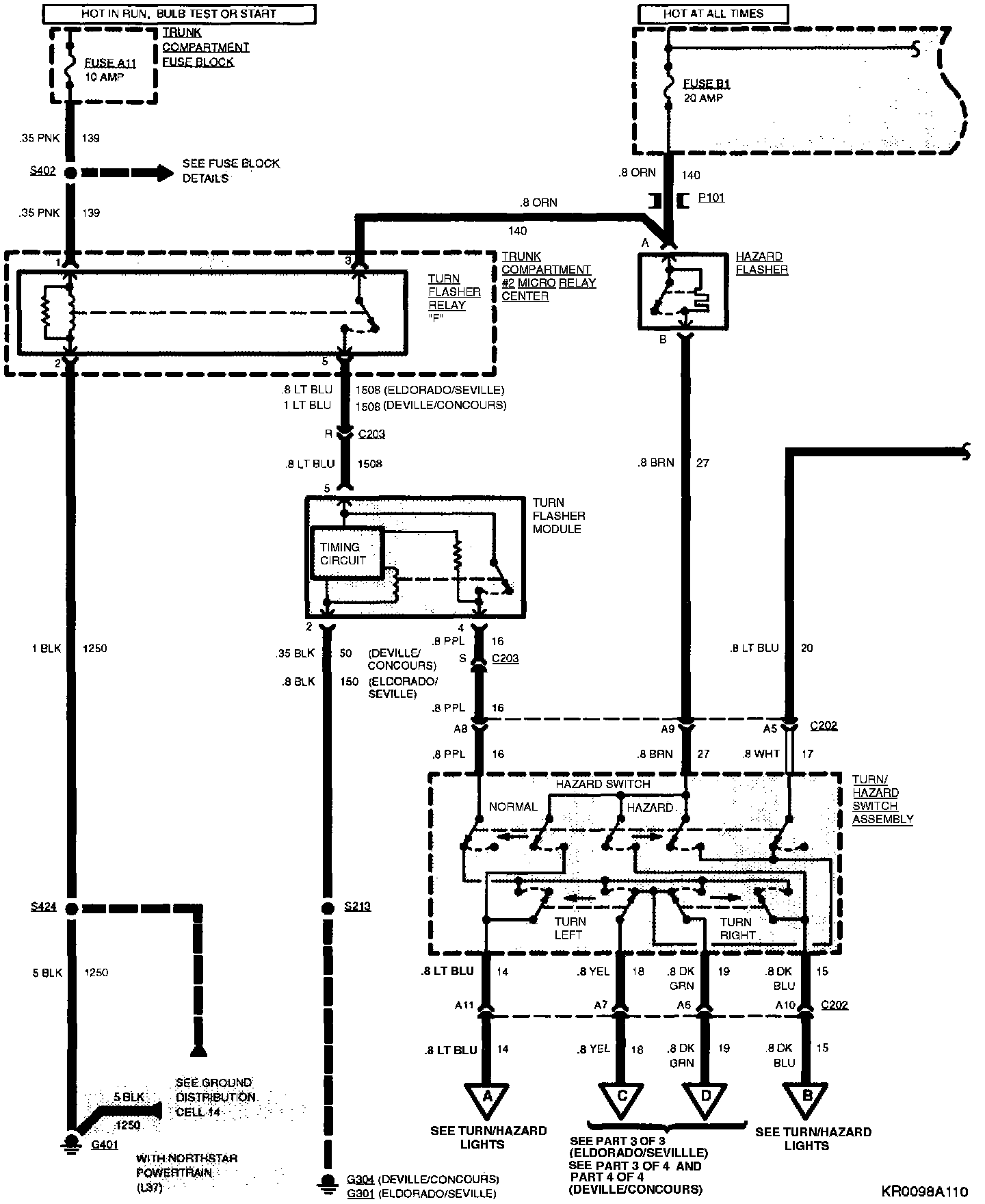

Turn/Hazard/Stop Lights:
