Twilight Sentinel/DRL Module
Twilight Sentinel/DRL Module

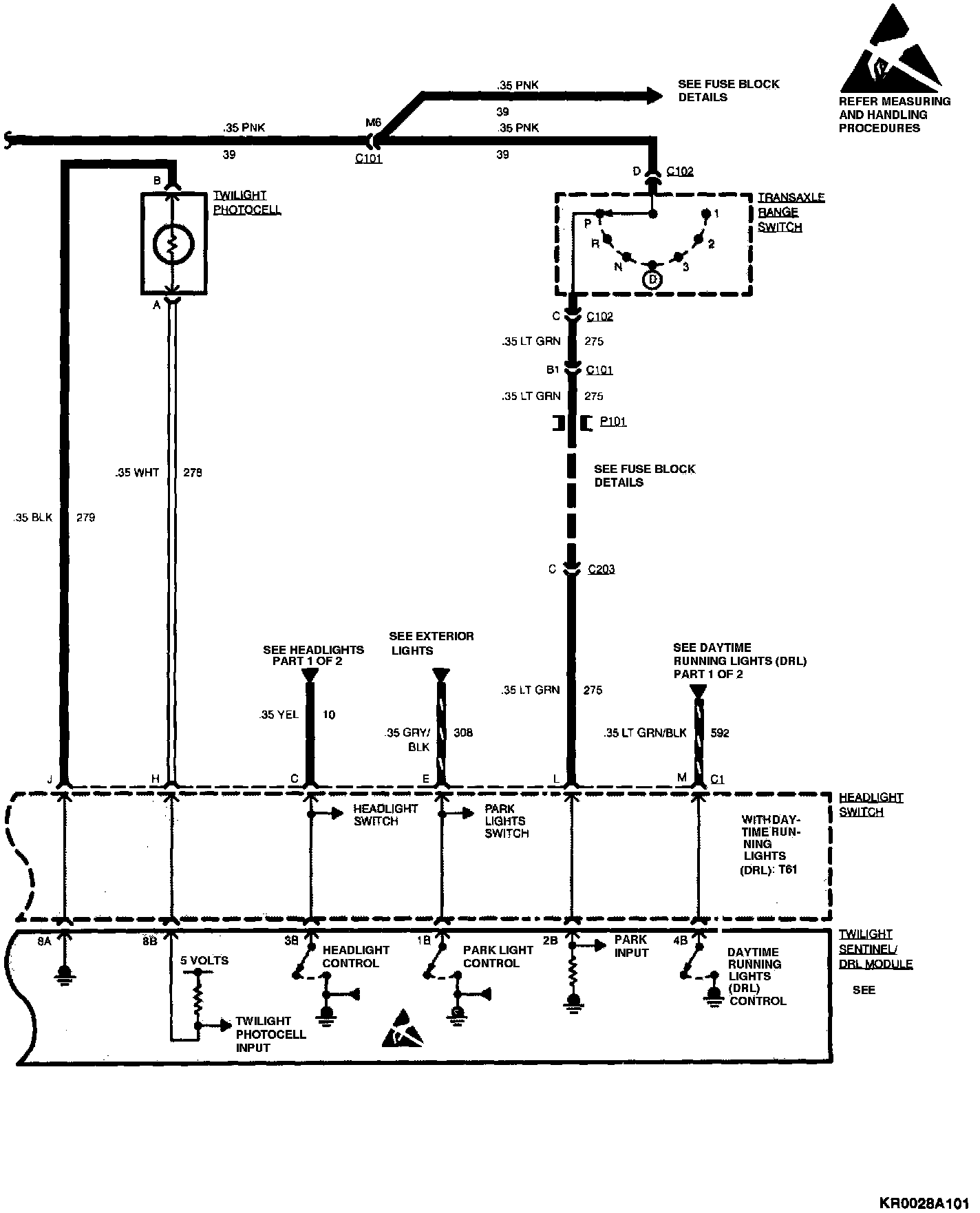

Twilight Sentinel/DRL Module (Part 1 Of 2):

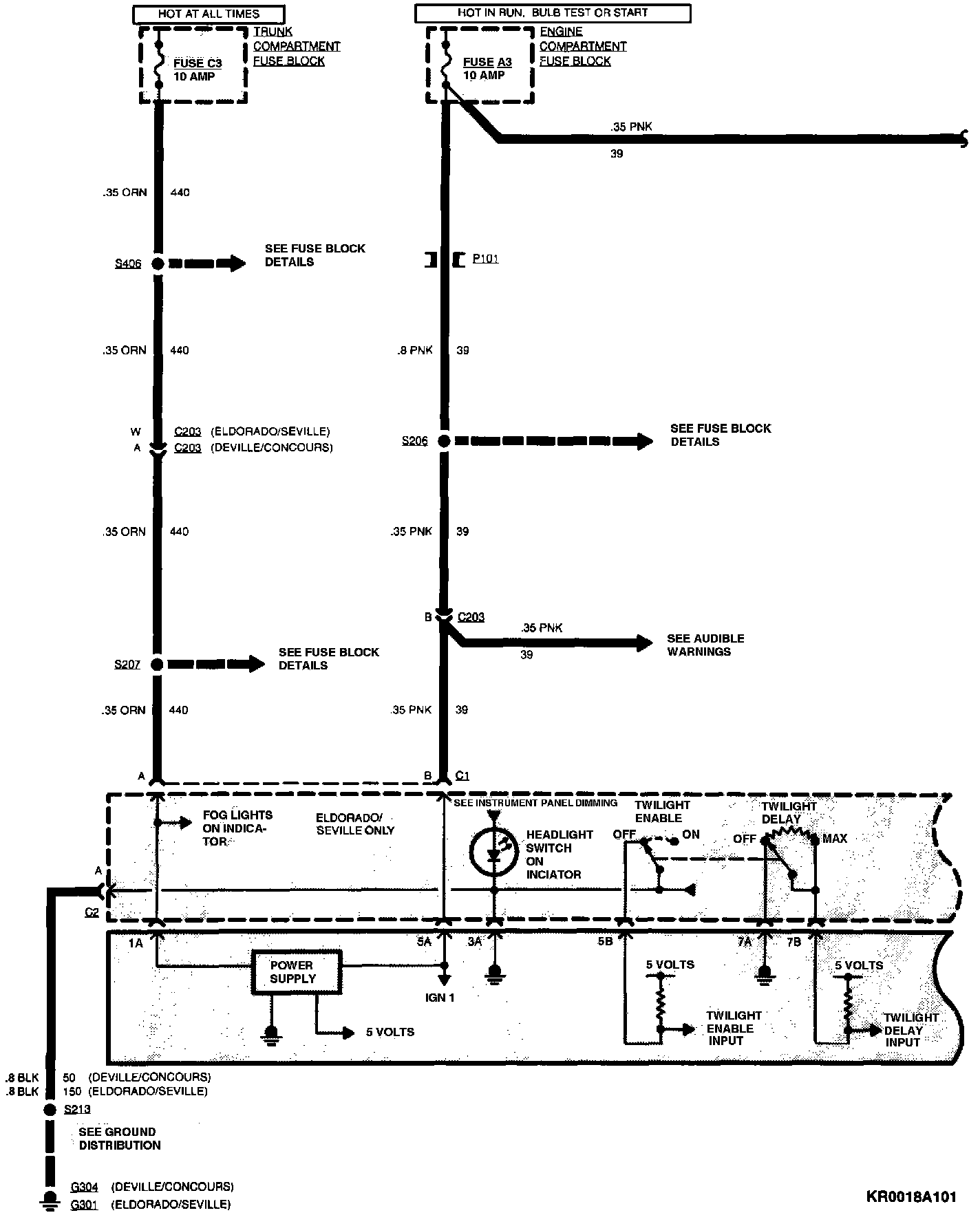

Twilight Sentinel/DRL Module (Part 2 Of 2):
