Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Trunk Lid

Trunk Lid

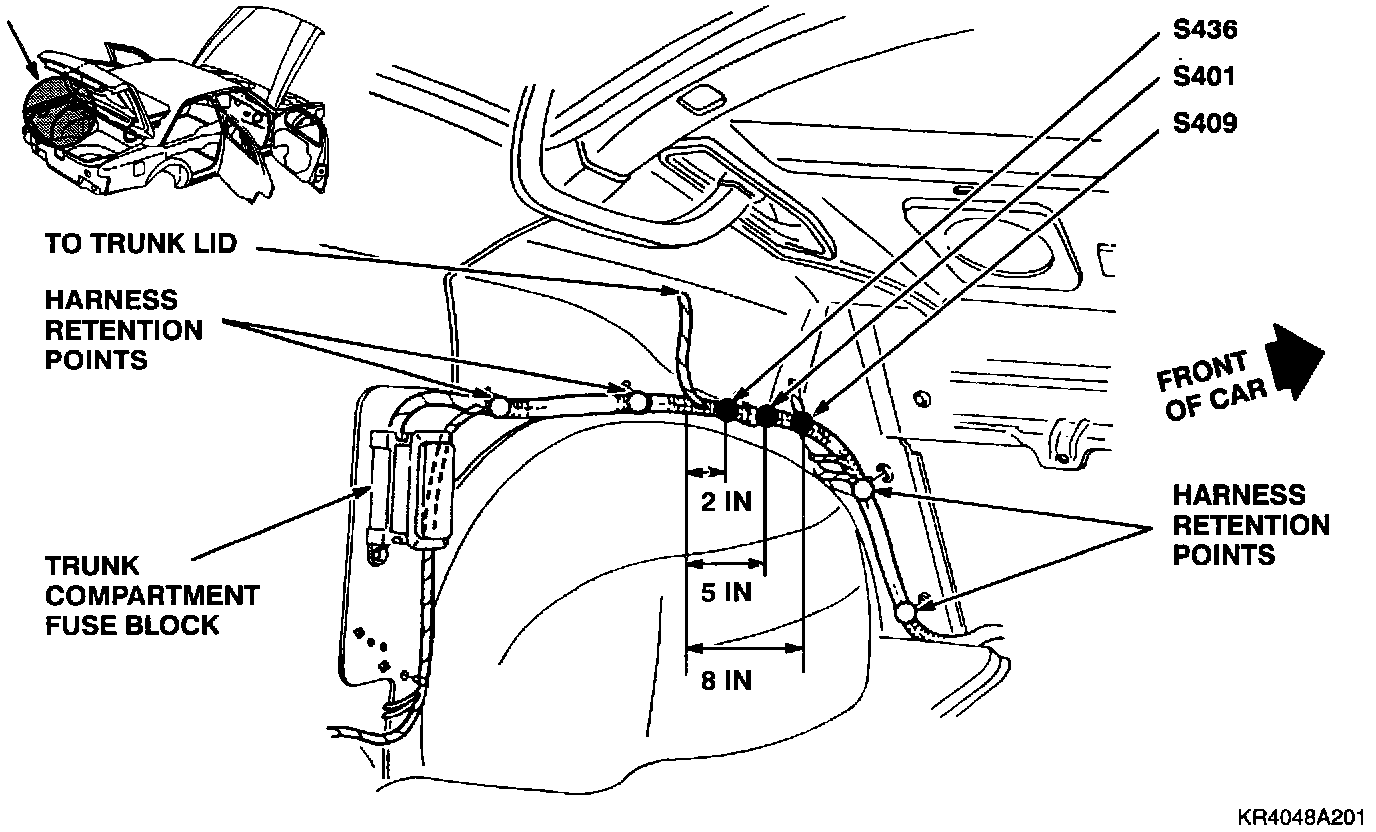

LH Side Of Trunk:

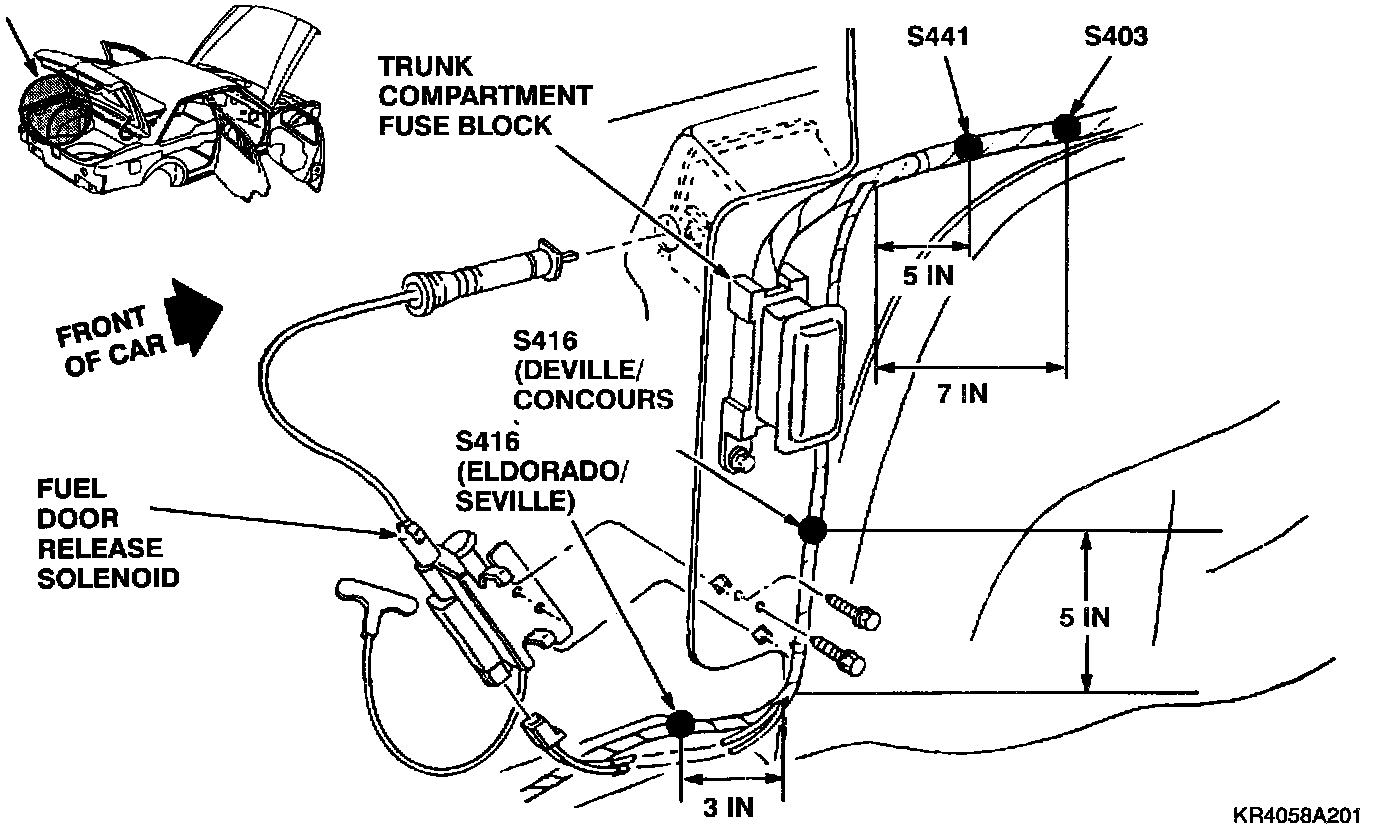

LH Rear Of Trunk (Deville/Concours Shown, Eldorado/Seville Similar):
