Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Chart C: Seat Memory Module C3 Pin-Out Test

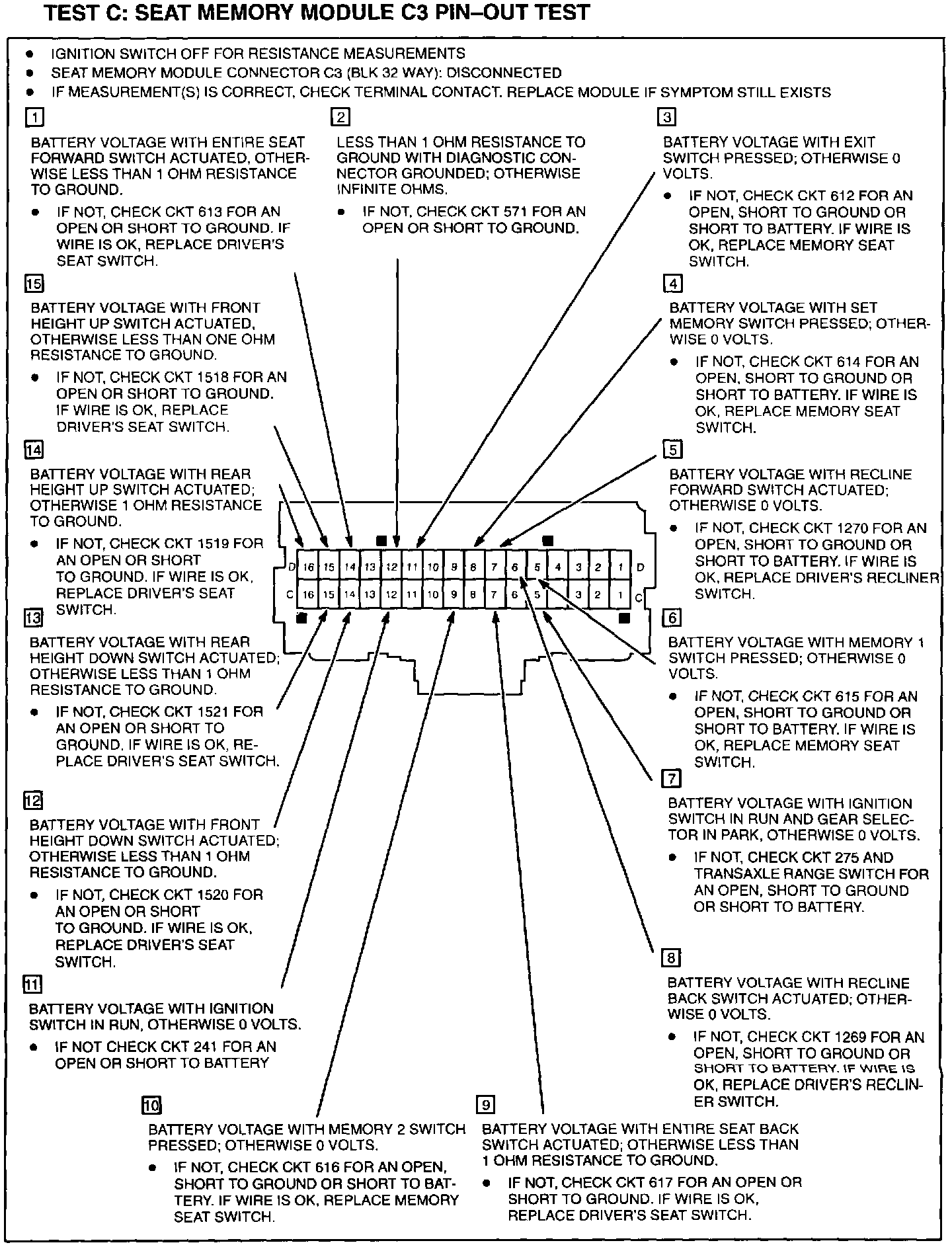

Chart C: Seat Memory Module C3 Pin-Out Test

Test C: Seat Memory Module C3 Pin-Out Test:
