Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Tests >> Test F: Door Lock Relay Inhibit Test

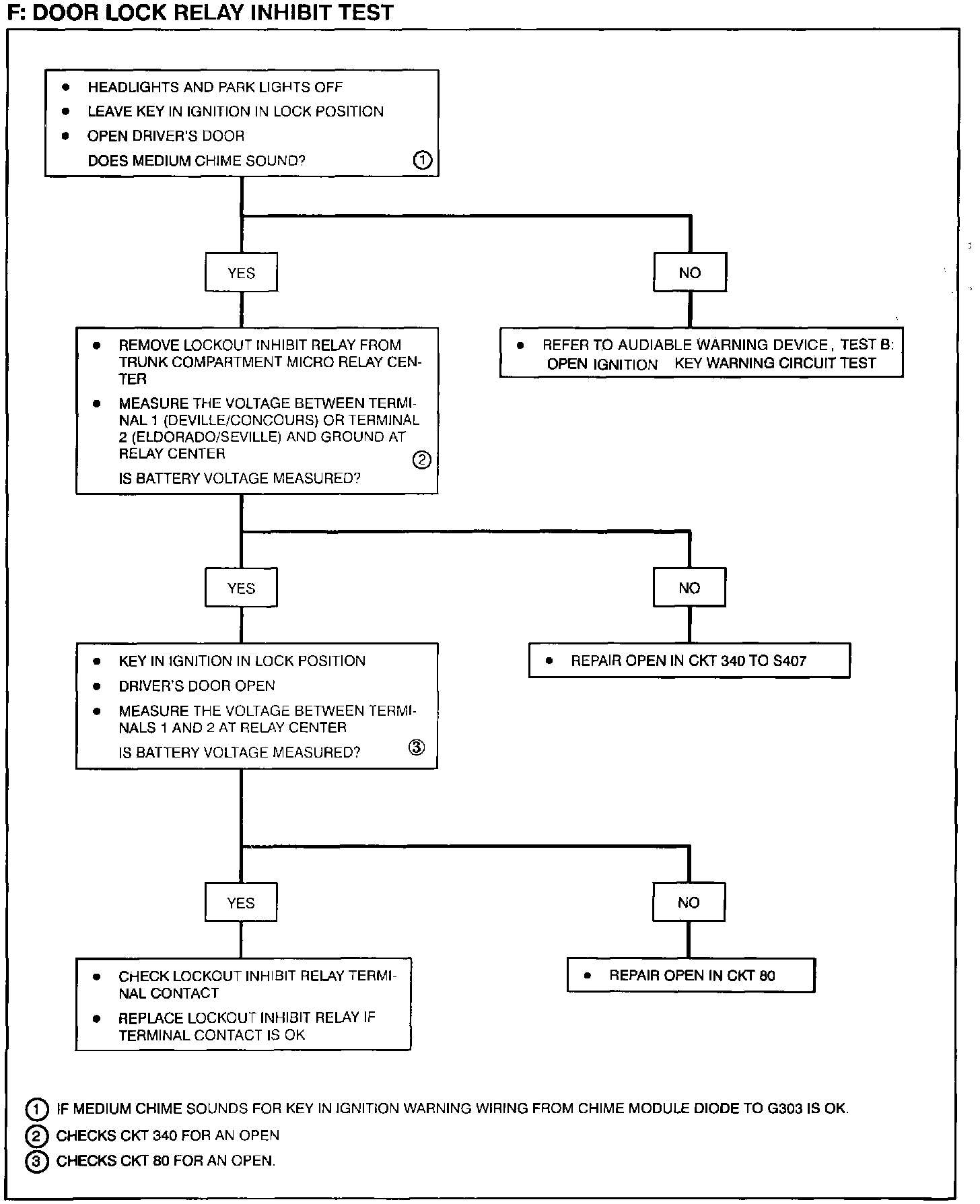

Test F: Door Lock Relay Inhibit Test

F: Door Lock Relay Inhibit Test:
