Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Tests >> Test E: Door Lock Switch Test

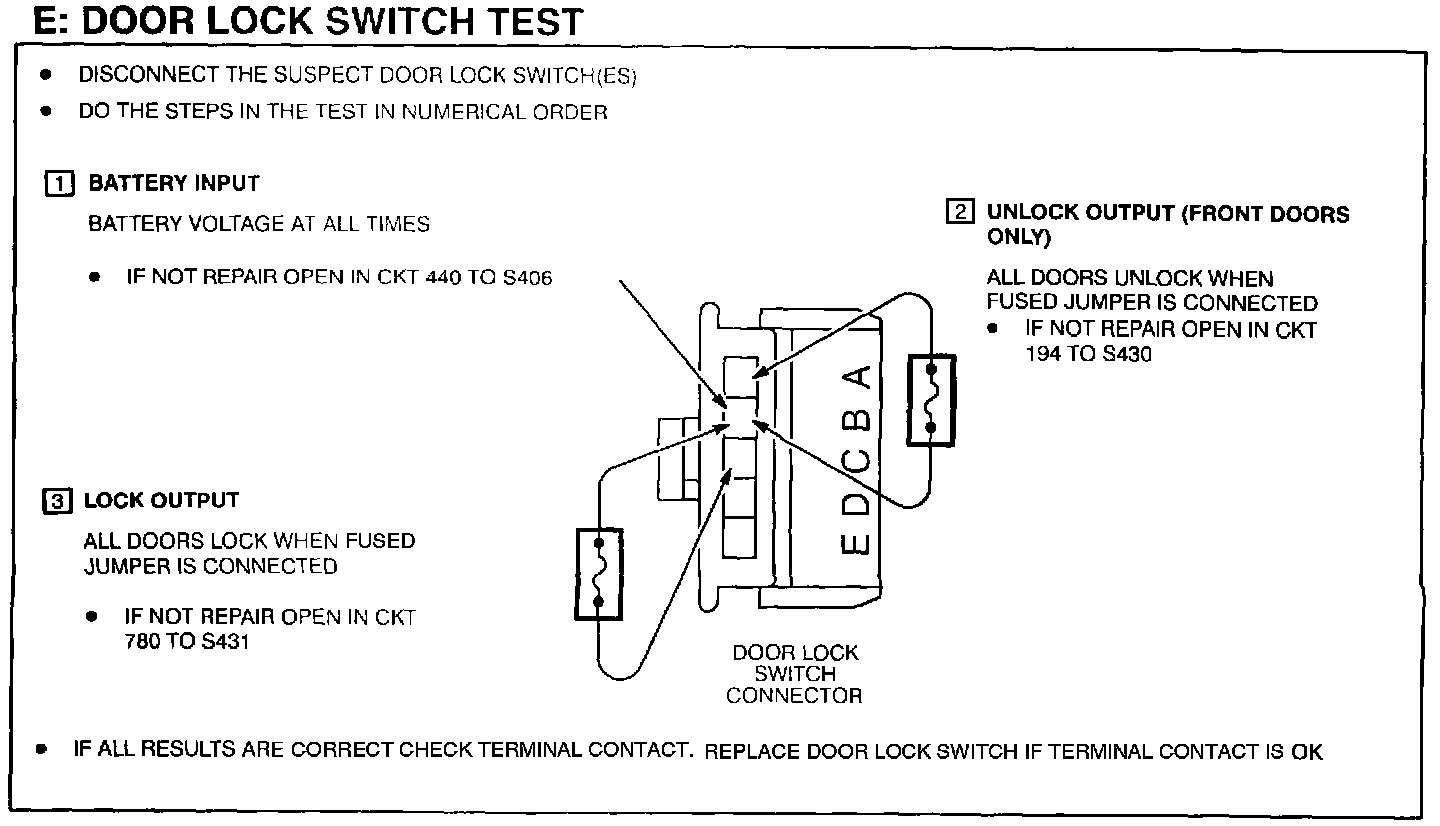

Test E: Door Lock Switch Test

E: Door Lock Switch Test:
