P060

DTC PO60:

Cruise Control Circuit:

CIRCUIT DESCRIPTION
Code P060 will set if the cruise control is engaged and the transaxle pressure switch is indicating that the transaxle is in PARK or NEUTRAL.

TEST CONDITIONS
1. Cruise control enabled.
2. Cruise control engaged.

FAILURE CONDITION
Transaxle pressure switch input to the Powertrain Control Module (PCM) indicating transaxle in PARK or NEUTRAL.

ACTION TAKEN
PCM disengages cruise control.

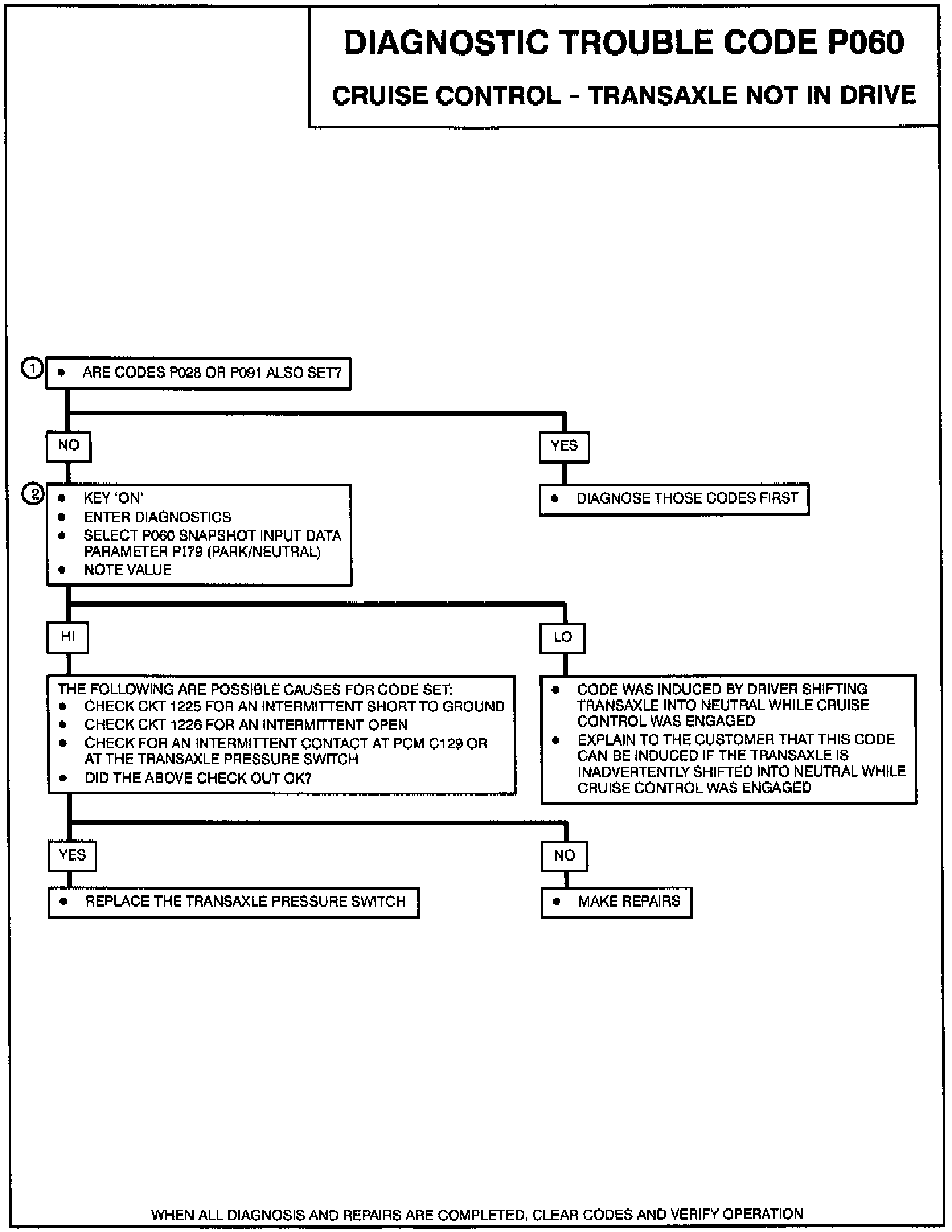

NOTES ON FAULT TREE
1. Checking if Code P028 or P091 are set because they can cause P060 to set.
2. Checking if the PARK/NEUTRAL input to the PCM from the transaxle range switch agrees with the transaxle pressure switch. If they agree the transaxle was in PARK/NEUTRAL at code set, the code was driver induced by shifting into PARK/NEUTRAL while cruise control was engaged. If they differ, check for an intermittent fault.
