S076

TEST CONDITIONS:

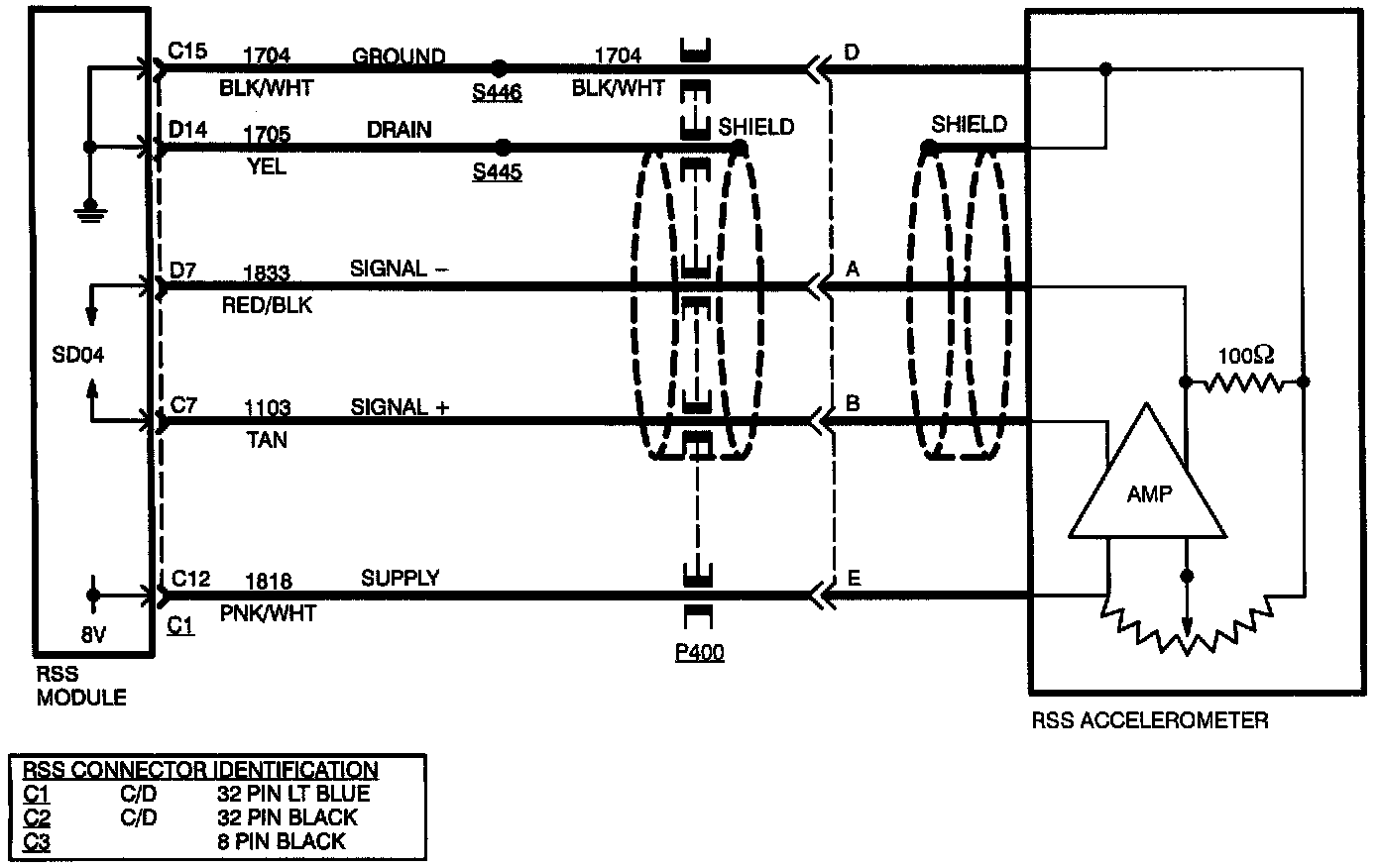

The RTD module monitors the accelerometer power supply for a short to ground.

FAULT CONDITIONS:

If a short is indicated a code is set.

ACTION TAKEN:

Set code. This code will not set the "SERVICE RIDE CONTROL" message, but will be retained in memory.

DESCRIPTION:

The RTD module monitors the accelerometer power supply for a short to ground if a short is indicated a code is set.

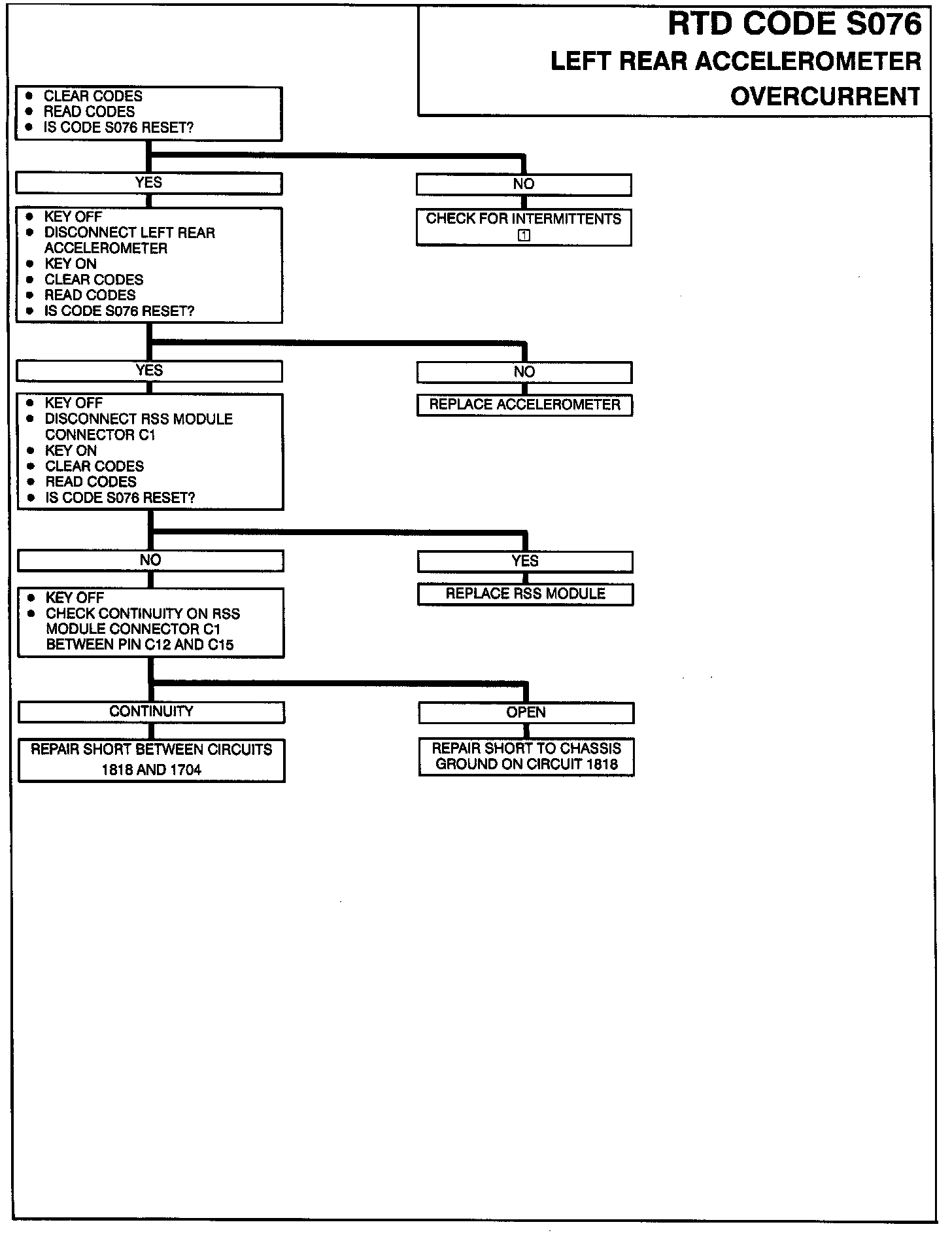

NOTES ON FAULT TREE:

1. Refer to notes on intermittents. To diagnose this condition:

^ Enter output cycling
^ Manipulate affected wiring
^ Recheck for codes.

DO NOT BACKPROBE SENSORS OR DAMPERS

WHEN ALL DIAGNOSIS AND REPAIRS ARE COMPLETE, CLEAR CODES AND VERIFY OPERATION.
