S043

TEST CONDITIONS:

The RSS module compares calculated road speed to the IPC road speed.

FAULT CONDITIONS:

Car must be driven over 20 mph for code to set.

ACTION TAKEN:

Set code S043, turn on "SERVICE RIDE CONTROL message, command all four dampers to full firm.

DESCRIPTION:

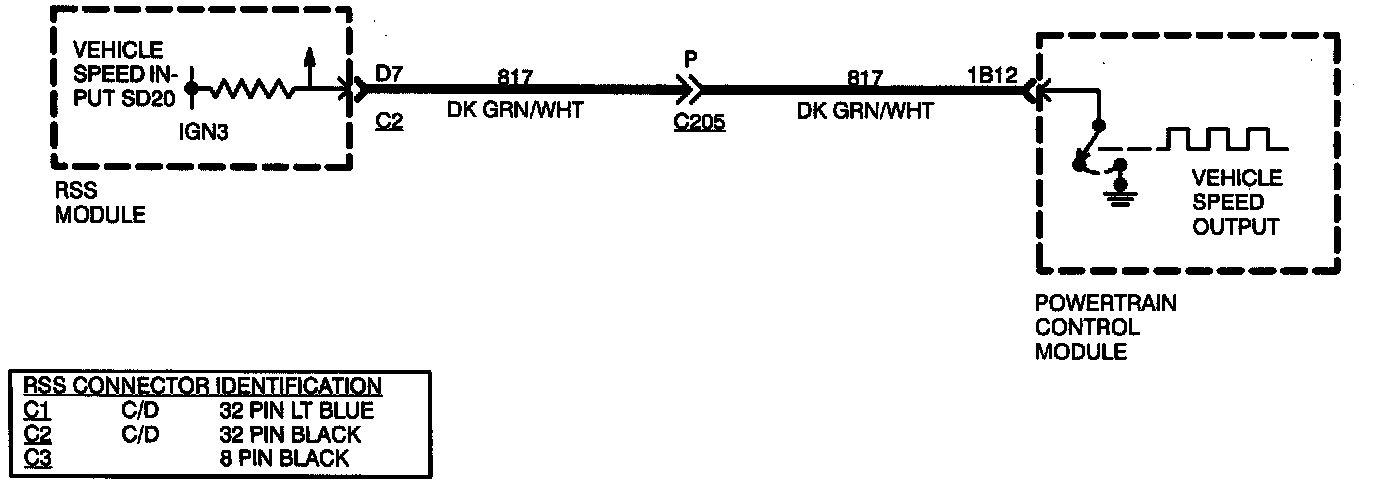

With every regularly scheduled diagnostic communication, the IPC passes its calculated road speed to the RSS module. The module compares this road speed to the RSS calculated road speed. If the IPC road speed is greater than 20 MPH while the RSS road speed is less than 3 MPH for 10 seconds, this error is activated.

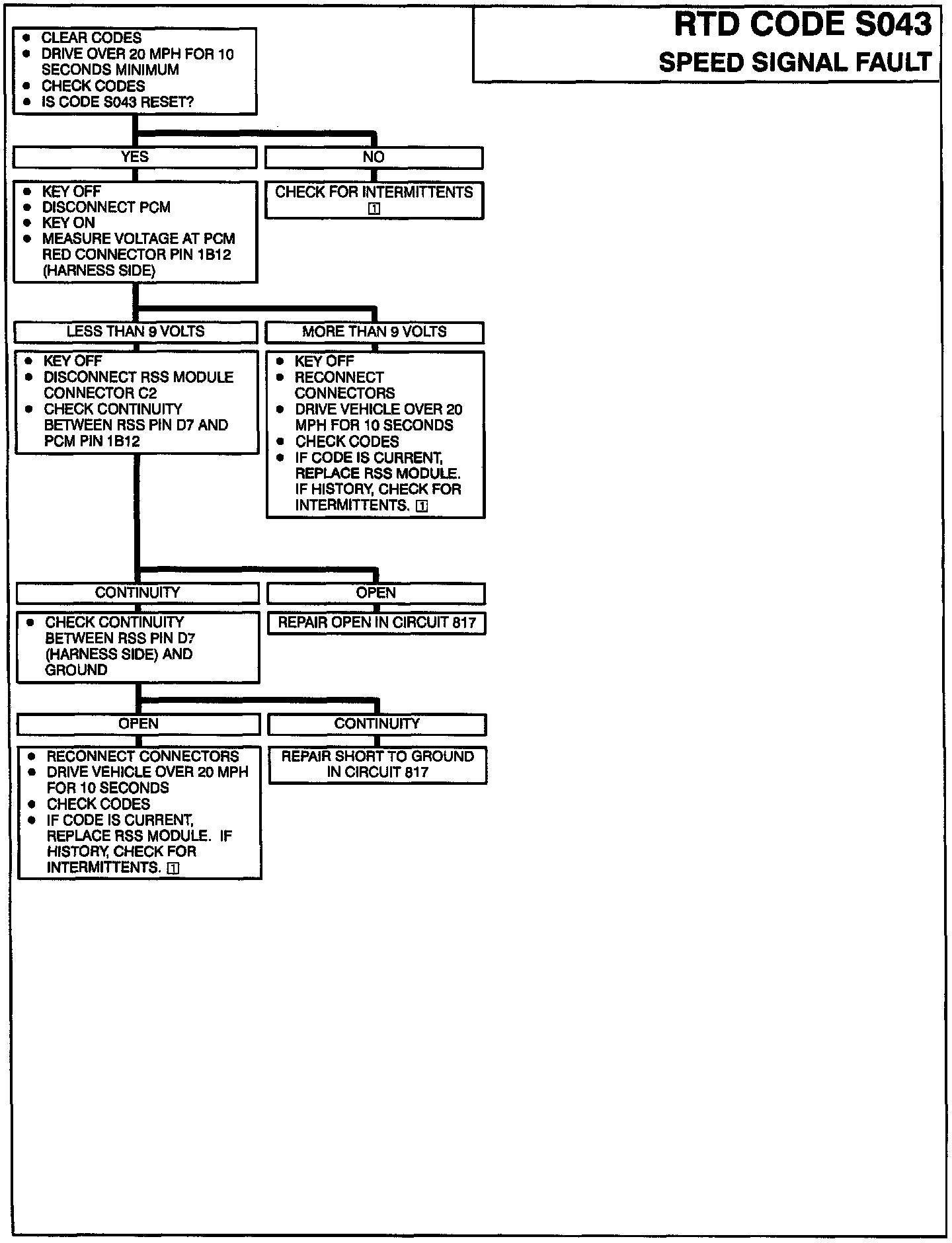

NOTES ON FAULT TREE:

1. Refer to notes on intermittents. To diagnose this condition:

^ Enter output cycling
^ Manipulate affected wiring
^ Recheck for codes.

NOTES ON INTERMITTENTS:

If the customer complains of harsh ride but the car has no RTD codes set, check for erratic HVAC operation. If so, check RTD Data SD20 and IPC Inputs for road speed. If both are equal to zero when car is driven then there is a problem with the PCM.

WHEN ALL DIAGNOSIS AND REPAIRS ARE COMPLETE, CLEAR CODES AND VERIFY OPERATION.
