Vertical Acceleration Sensor: Diagrams




Component Connector End Views

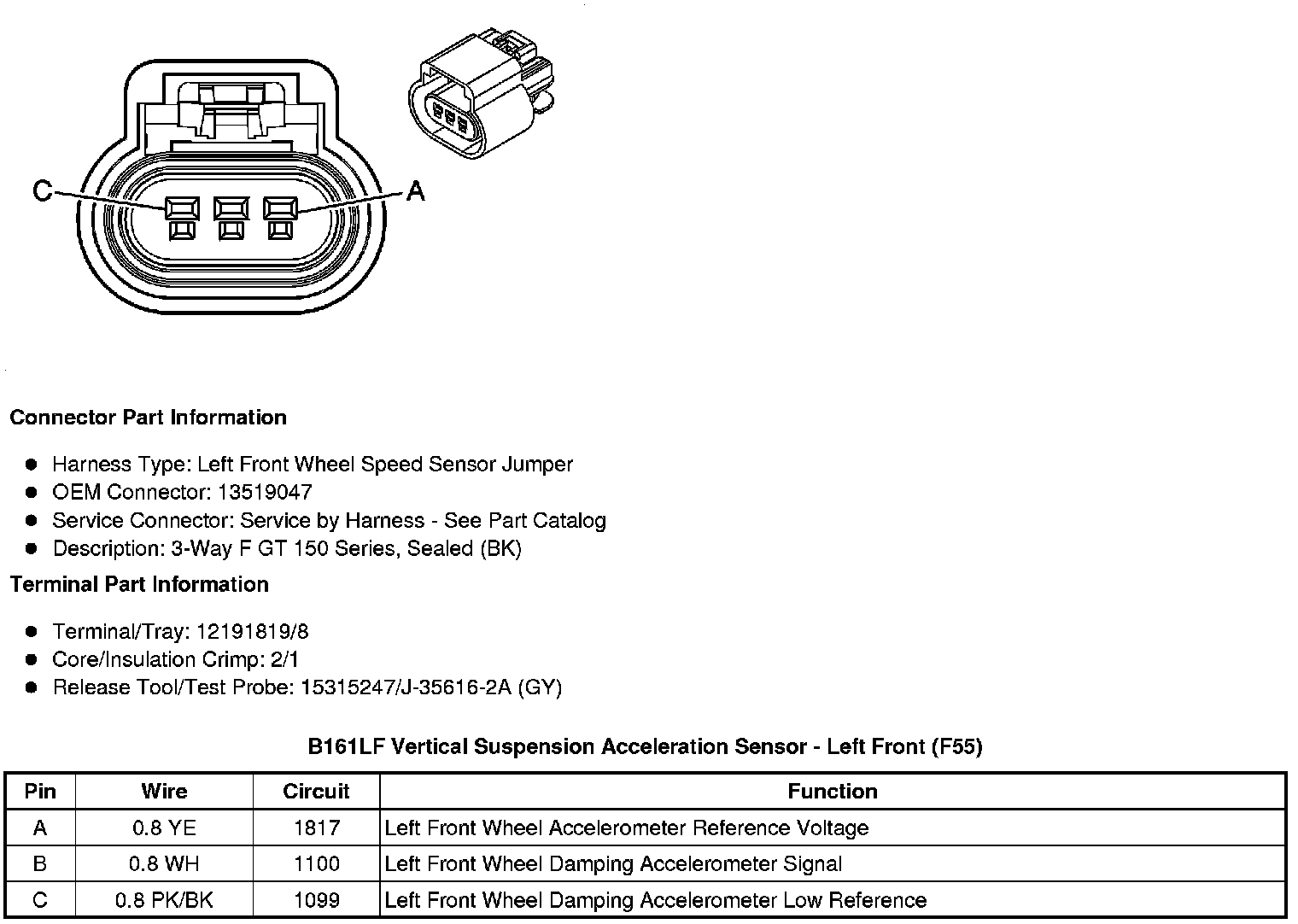

B161LF Vertical Suspension Acceleration Sensor - Left Front (F55)





B161RF Vertical Suspension Acceleration Sensor - Right Front (F55)





B162LF Vertical Body Acceleration Sensor - Left Front (F45)

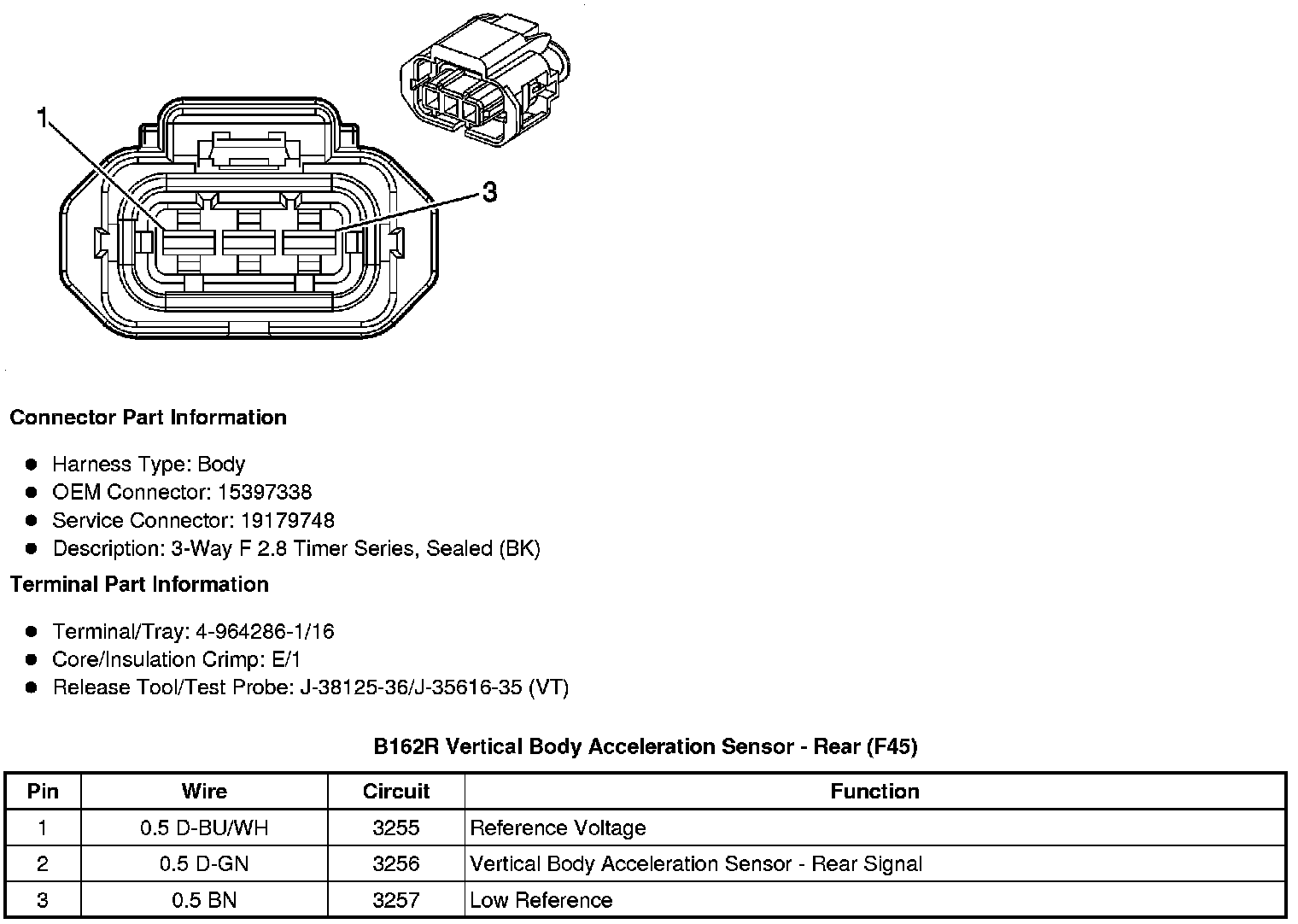

B162R Vertical Body Acceleration Sensor - Rear (F45)





B162RF Vertical Body Acceleration Sensor - Right Front (F45)
