Windshield Washer Nozzle Replacement

Windshield Washer Nozzle Replacement

Removal Procedure

1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement Service and Repair.

2. Disconnect the washer hose from the washer nozzles.

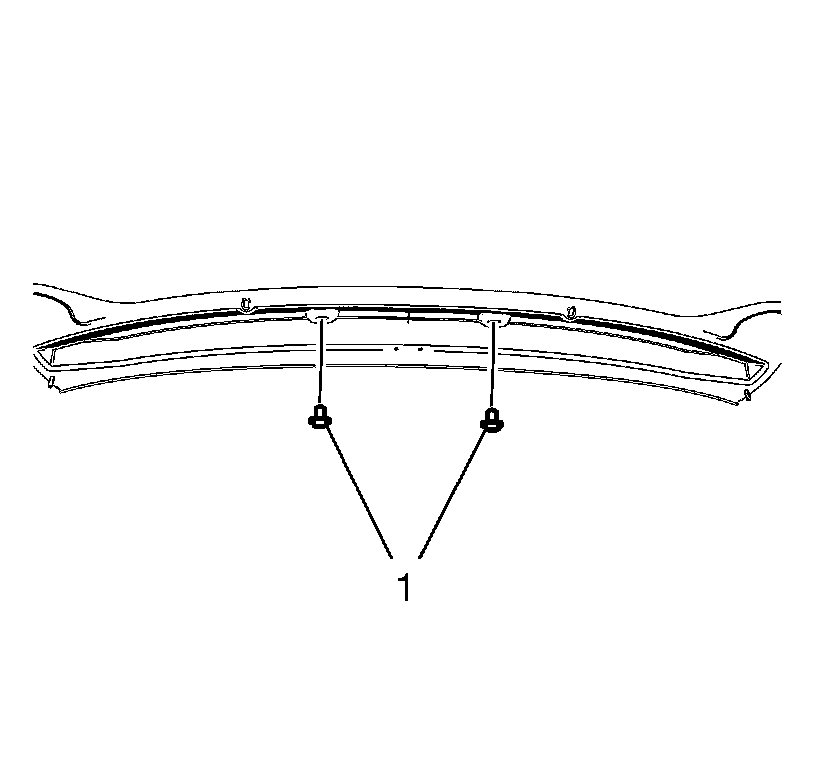

3. Remove the windshield washer nozzle (1), unclip the washer nozzle from the bottom side in order to release the nozzle and push the nozzle through the air inlet grille panel to remove.

Installation Procedure




1. Install the windshield washer nozzle (1).

2. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement Service and Repair.
