Washer Fluid Level Switch: Diagrams

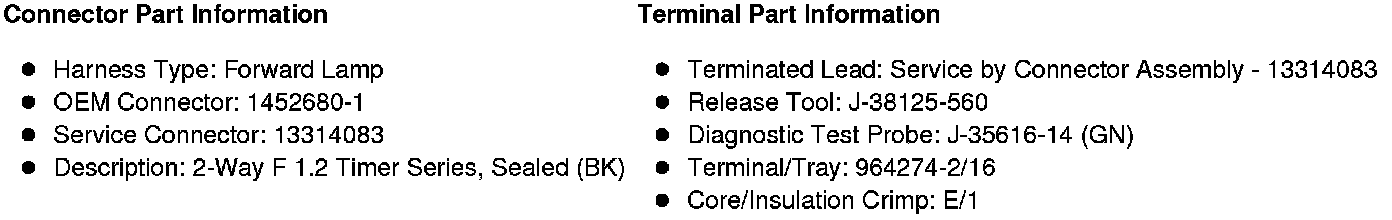

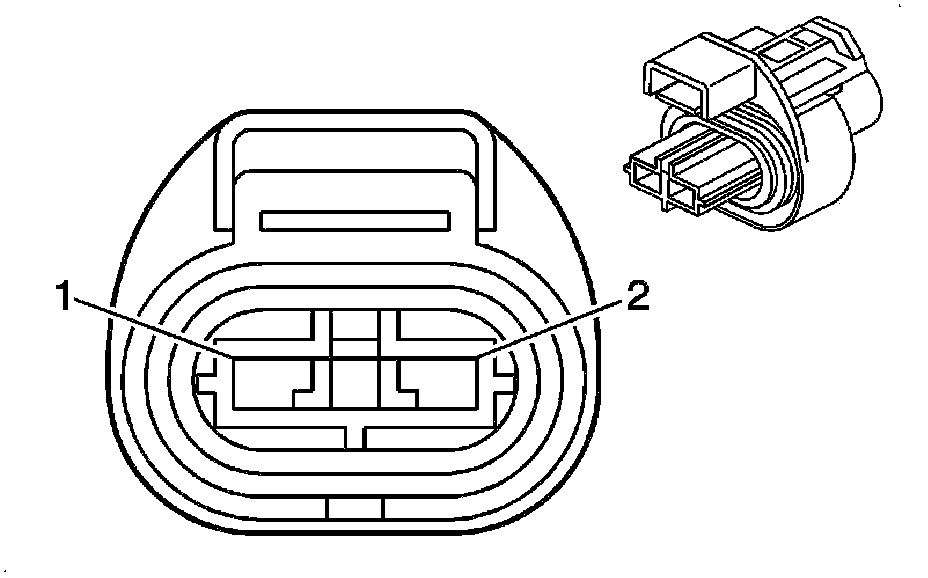

Component Connector End Views

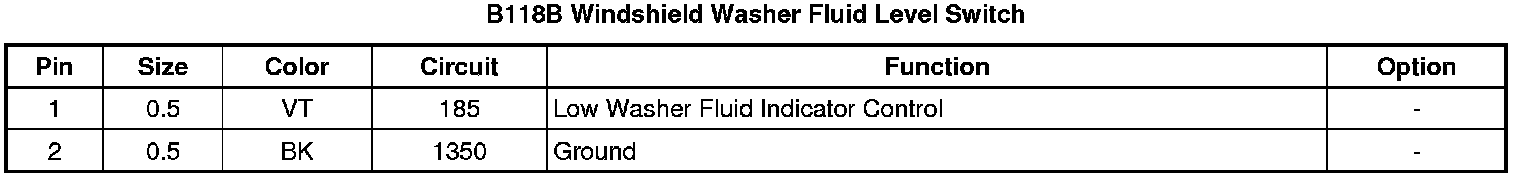

B118B Windshield Washer Fluid Level Switch
