Window Motor - Passenger (AEF)
Window Motor - Passenger (AEF)

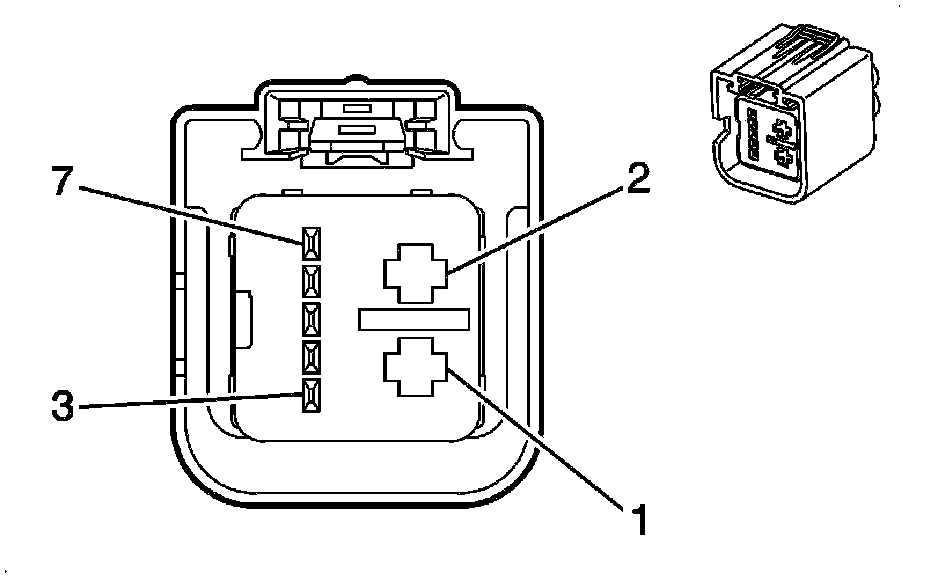

Component Connector End Views

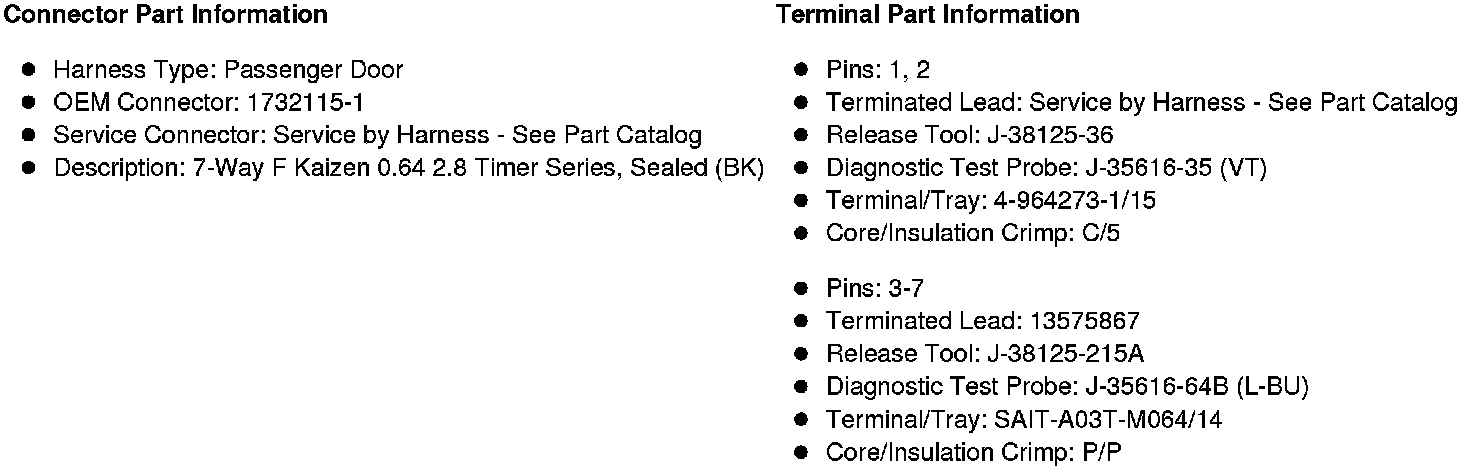

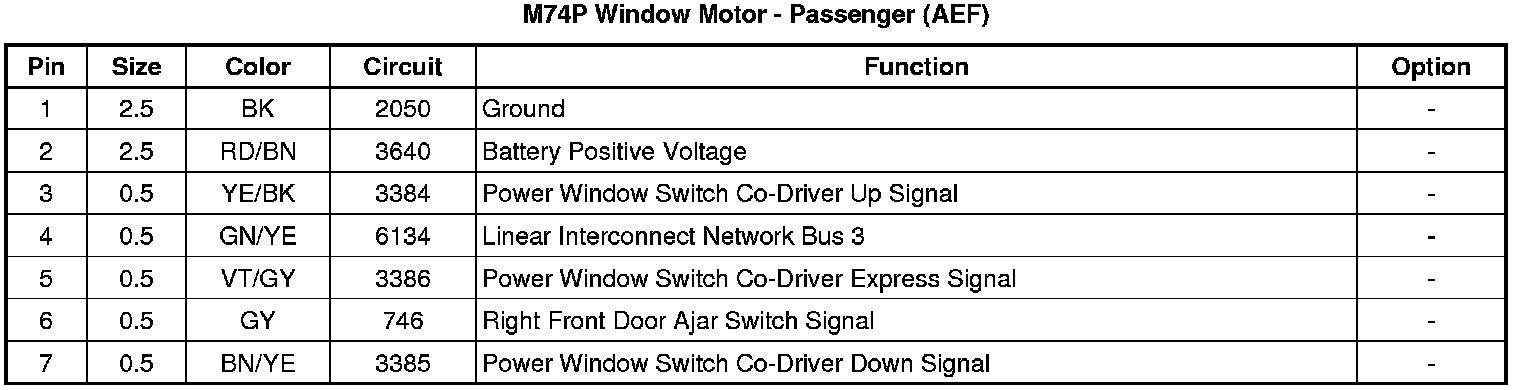

M74P Window Motor - Passenger (AEF)
