Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Window Motor - Left Rear

Window Motor - Left Rear

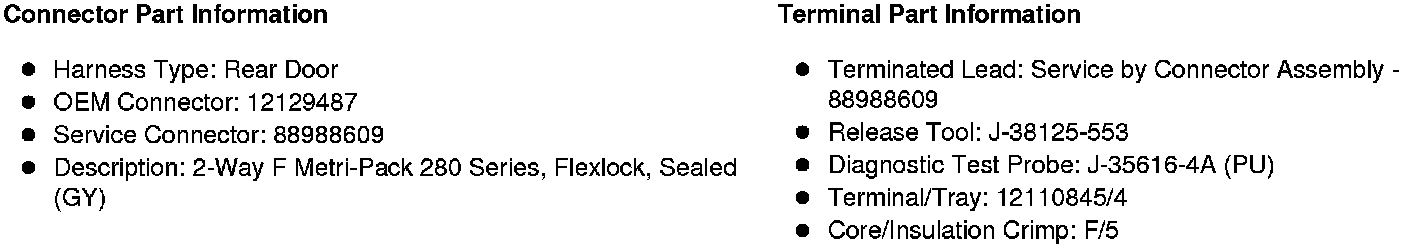

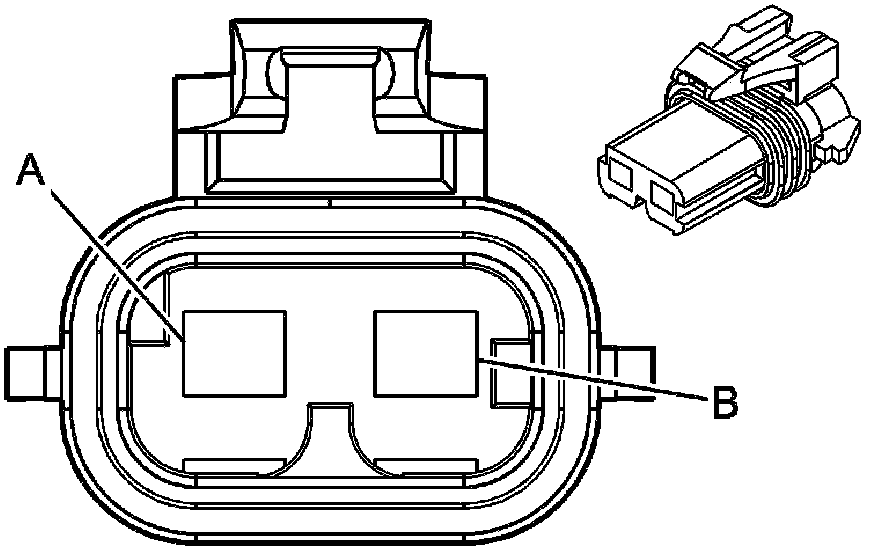

Component Connector End Views

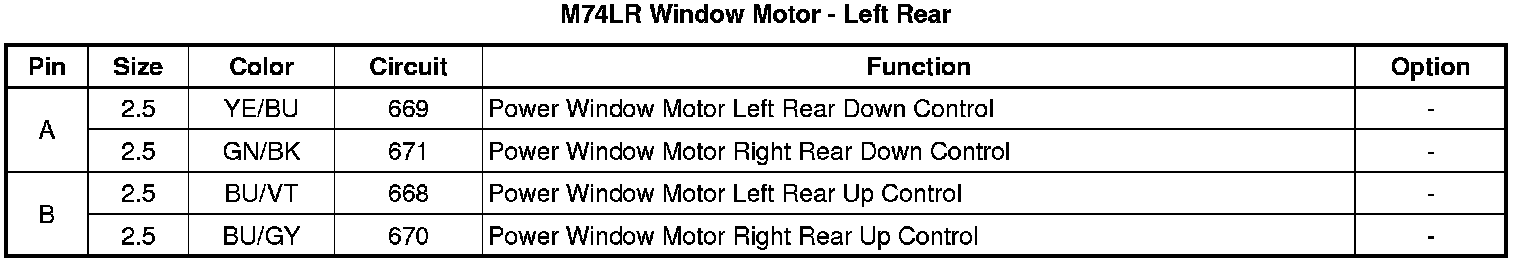

M74LR Window Motor - Left Rear
