Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Window Switch - Right Rear

Window Switch - Right Rear

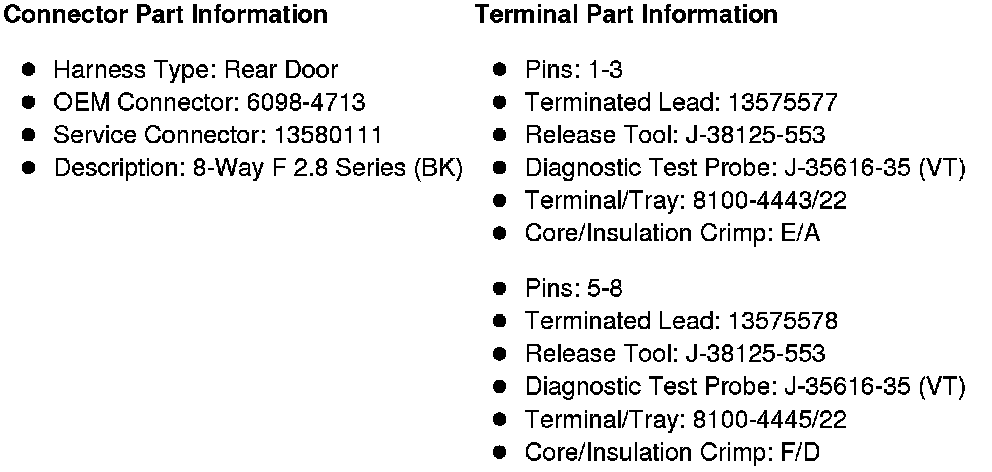

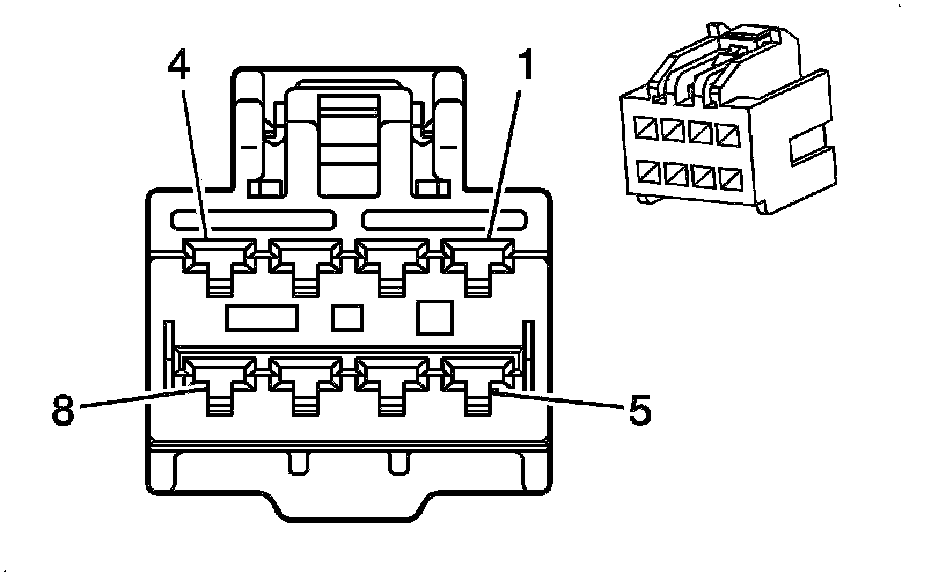

Component Connector End Views

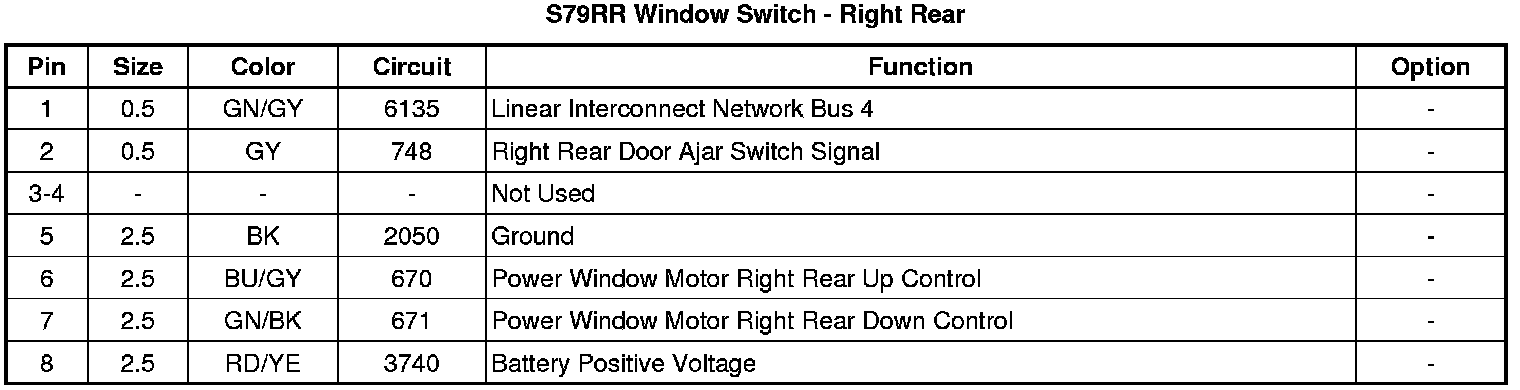

S79RR Window Switch - Right Rear
