Transmission Rear Mount Replacement

Transmission Rear Mount Replacement

Removal Procedure

1. Remove steering gear - EPS. Refer to Steering Gear Replacement Steering Gear Replacement.

2. Remove rear transmission mount bracket. Refer to Transmission Mount Bracket Replacement - Rear Transmission Mount Bracket Replacement - Rear.

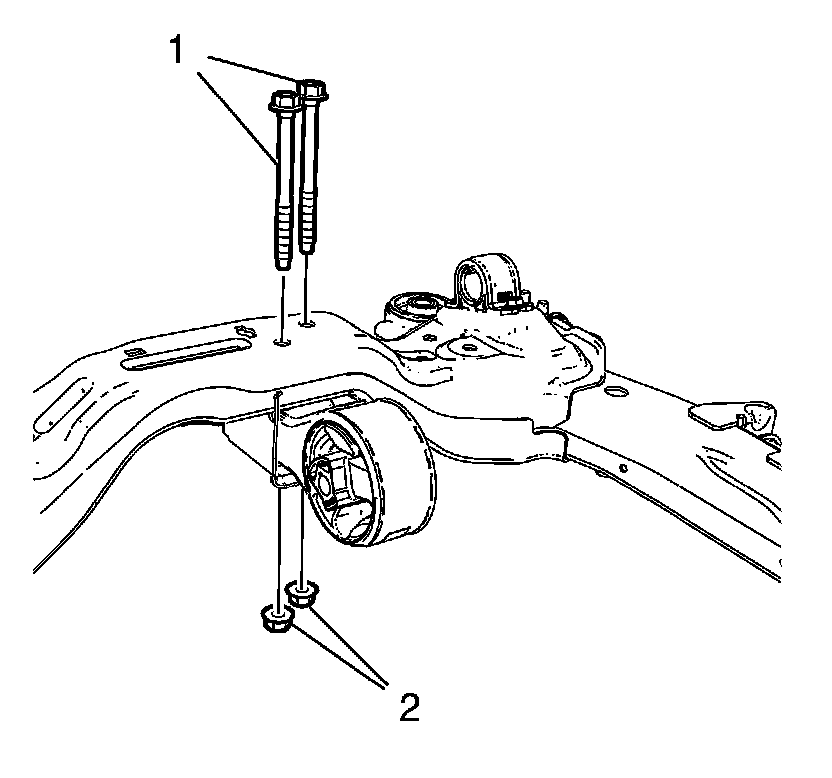

3. Remove rear transmission mount to frame bolts (1) and nuts (2).

4. Remove rear transmission mount.

Installation Procedure





1. Install rear transmission mount.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install rear transmission mount to frame bolts (1) and nuts (2) and tighten to 110 Nm (81 lb ft).

3. Install rear transmission mount bracket. Refer to Transmission Mount Bracket Replacement - Rear Transmission Mount Bracket Replacement - Rear.

4. Install steering gear - EPS. Refer to Steering Gear Replacement Steering Gear Replacement.
