Transmission Mount Bracket Replacement - Left Side

Transmission Mount Bracket Replacement - Left Side

Removal Procedure

1. Remove battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.

2. Remove transmission mount - left side Transmission Mount Replacement - Left Side Transmission Mount Replacement - Left Side.

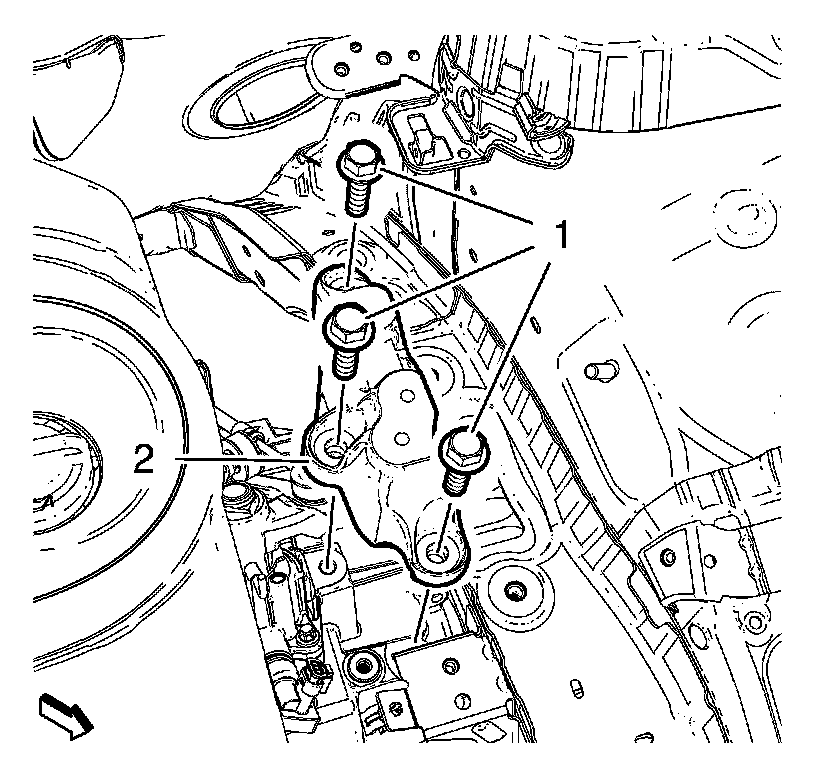

3. Remove 3 transmission mount bracket bolts (1).

4. Remove transmission mount bracket (2).

Installation Procedure





1. Install transmission mount bracket (2).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install 3 transmission mount bracket bolts (1) and tighten to 100 Nm (74 lb ft).

3. Install transmission mount - left side Transmission Mount Replacement - Left Side Transmission Mount Replacement - Left Side.

4. Install battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.
