Front Wheel Drive Shaft Seal Replacement - Left Side

Front Wheel Drive Shaft Seal Replacement - Left Side

Special Tools

* DT-519 - Installer Drift

* DT-586 - Remover Hook

* DT-7004 - Slide Hammer

For equivalent regional tools, refer to Special Tools Tools and Equipment.

Removal Procedure

1. Remove left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side Front Wheel Drive Shaft Replacement - Left Side.





2. Remove front wheel drive shaft oil seal (1) using DT-7004 - slide hammer (3) in conjunction with DT-586 - remover hook (2).

Installation Procedure

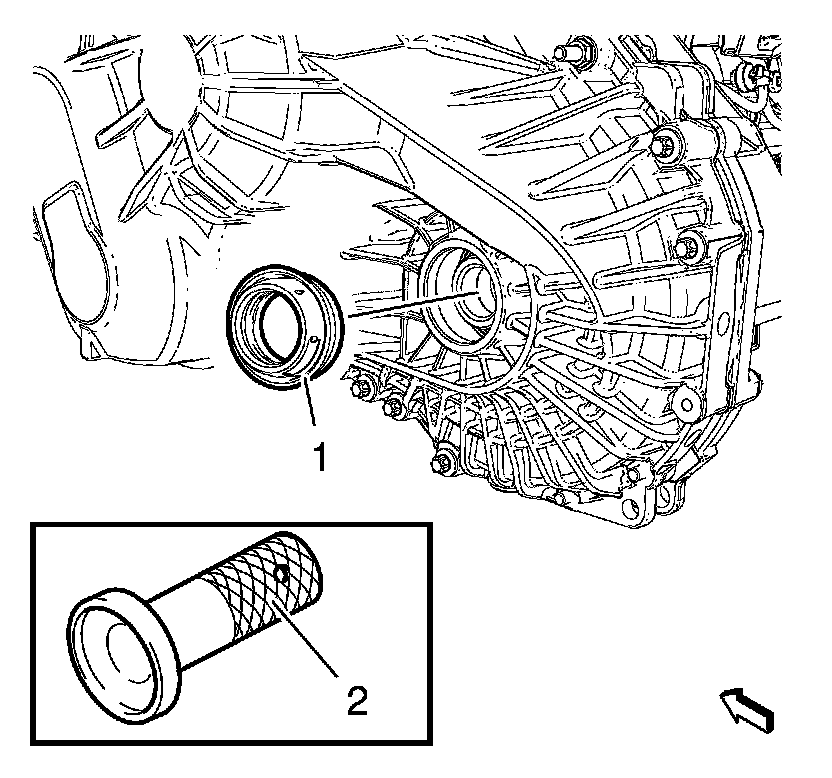

1. Install NEW front wheel drive shaft oil seal (1) using DT-519 - installer drift (2) and a hammer.

Note:
Coat seal lips with NEW transmission fluid.

2. Install left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side Front Wheel Drive Shaft Replacement - Left Side.
