Clutch Actuator Cylinder Front Pipe Replacement

Clutch Actuator Cylinder Front Pipe Replacement

Removal Procedure

1. Remove battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.

2. Remove radiator surge tank Radiator Surge Tank Replacement Radiator Surge Tank Replacement and lay aside.

3. Place basin underneath.





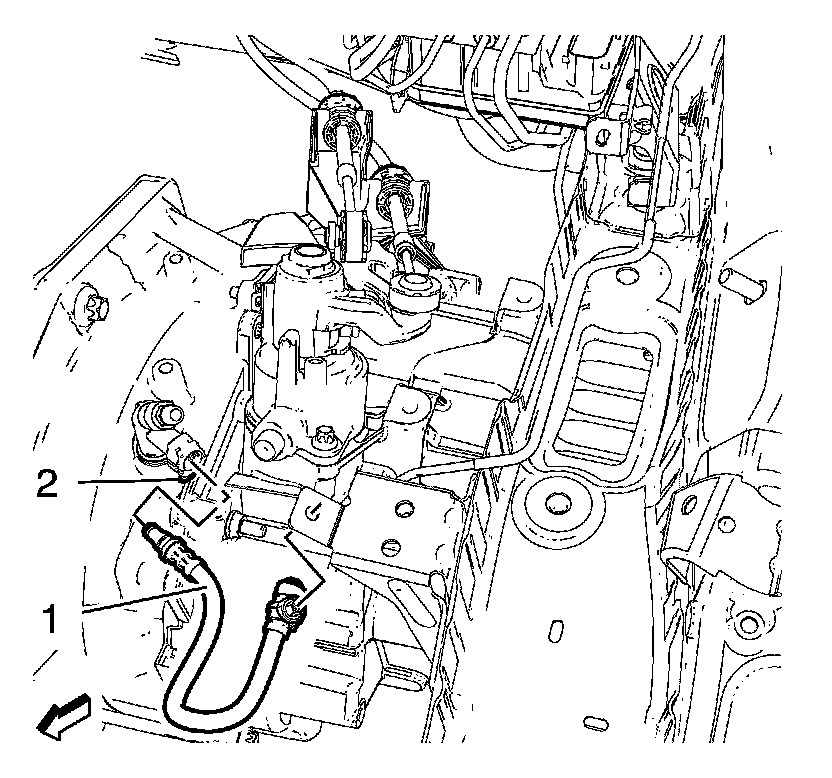

4. Clip clutch actuator cylinder front pipe (2) out of 2 retainers.

5. Open retaining clip (1).

6. Disconnect clutch actuator cylinder front pipe from clutch actuator cylinder pipe elbow.

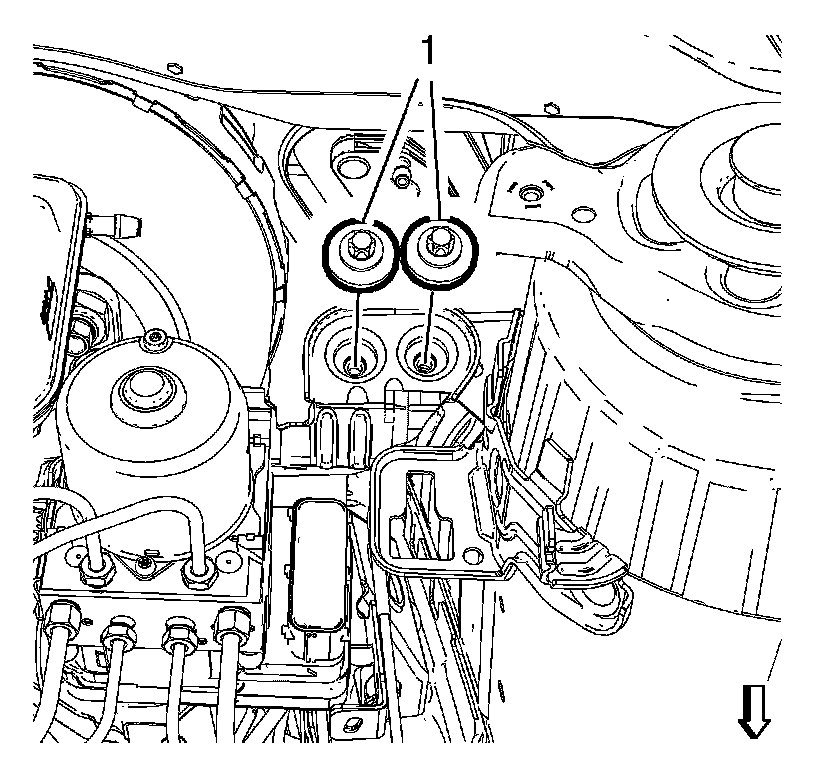

7. Remove 2 brake pressure modulator valve bracket bolts (1).

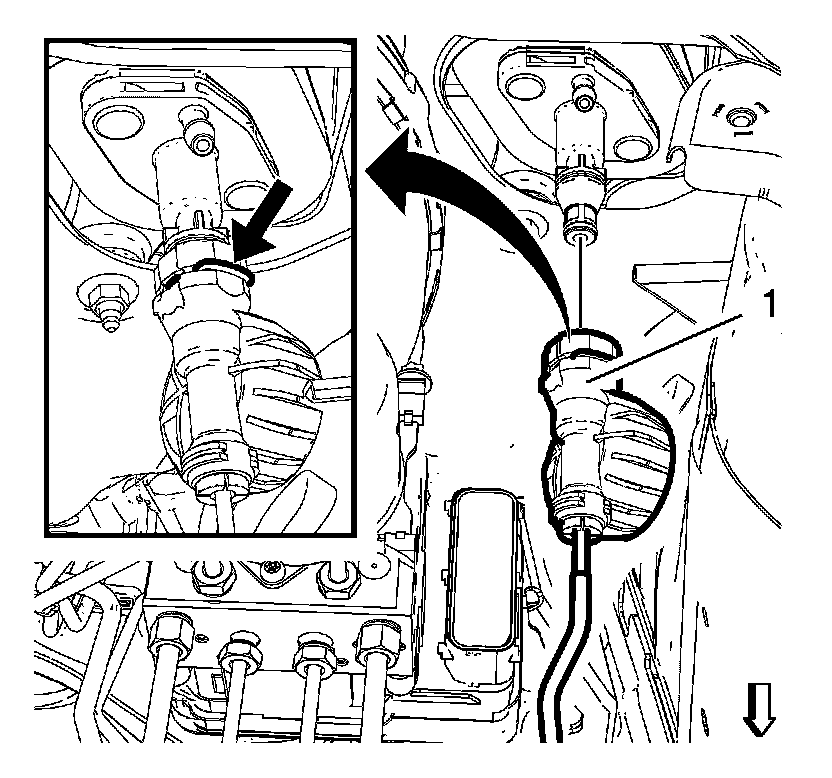

8. Open retaining clip (arrow).

9. Disconnect clutch actuator cylinder front pipe (1) from clutch master cylinder.

Note:
For removal of clutch actuator cylinder front pipe lift brake pressure modulator valve bracket carefully.

10. Remove clutch actuator cylinder front pipe.

Installation Procedure

Note:
For installation of clutch actuator cylinder front pipe lift brake pressure modulator valve bracket carefully.

1. Install clutch actuator cylinder front pipe.





2. Connect clutch actuator cylinder front pipe (1) to clutch master cylinder.

3. Close retaining clip (arrow).





4. Connect clutch actuator cylinder front pipe (2) to clutch actuator cylinder pipe elbow.

5. Close retaining clip (1).

6. Clip clutch actuator cylinder front pipe (1) into 2 retainers.





Caution:
Refer to Fastener Caution Fastener Caution.

7. Install 2 brake pressure modulator valve bracket bolts (1) and tighten to 20 Nm (15 lb ft).

8. Install radiator surge tank Radiator Surge Tank Replacement Radiator Surge Tank Replacement.

9. Bleed hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding Service and Repair.

10. Install battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.
