Transmission Fluid Pump Disassemble (6T40/45/50)




Transmission Fluid Pump Disassemble (6T40/45/50)

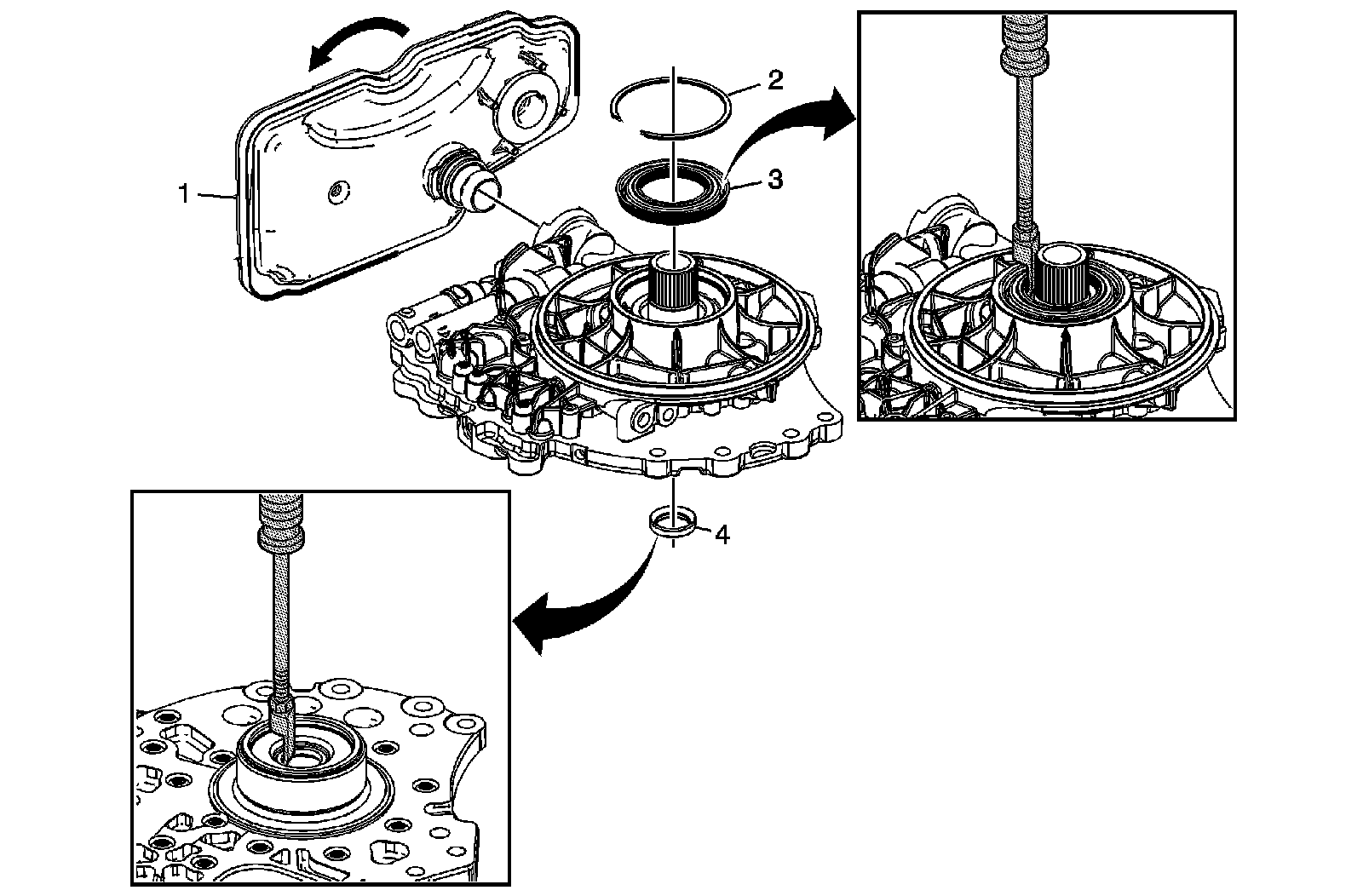

Fluid Filter Assembly and Torque Converter Fluid Seal Disassemble

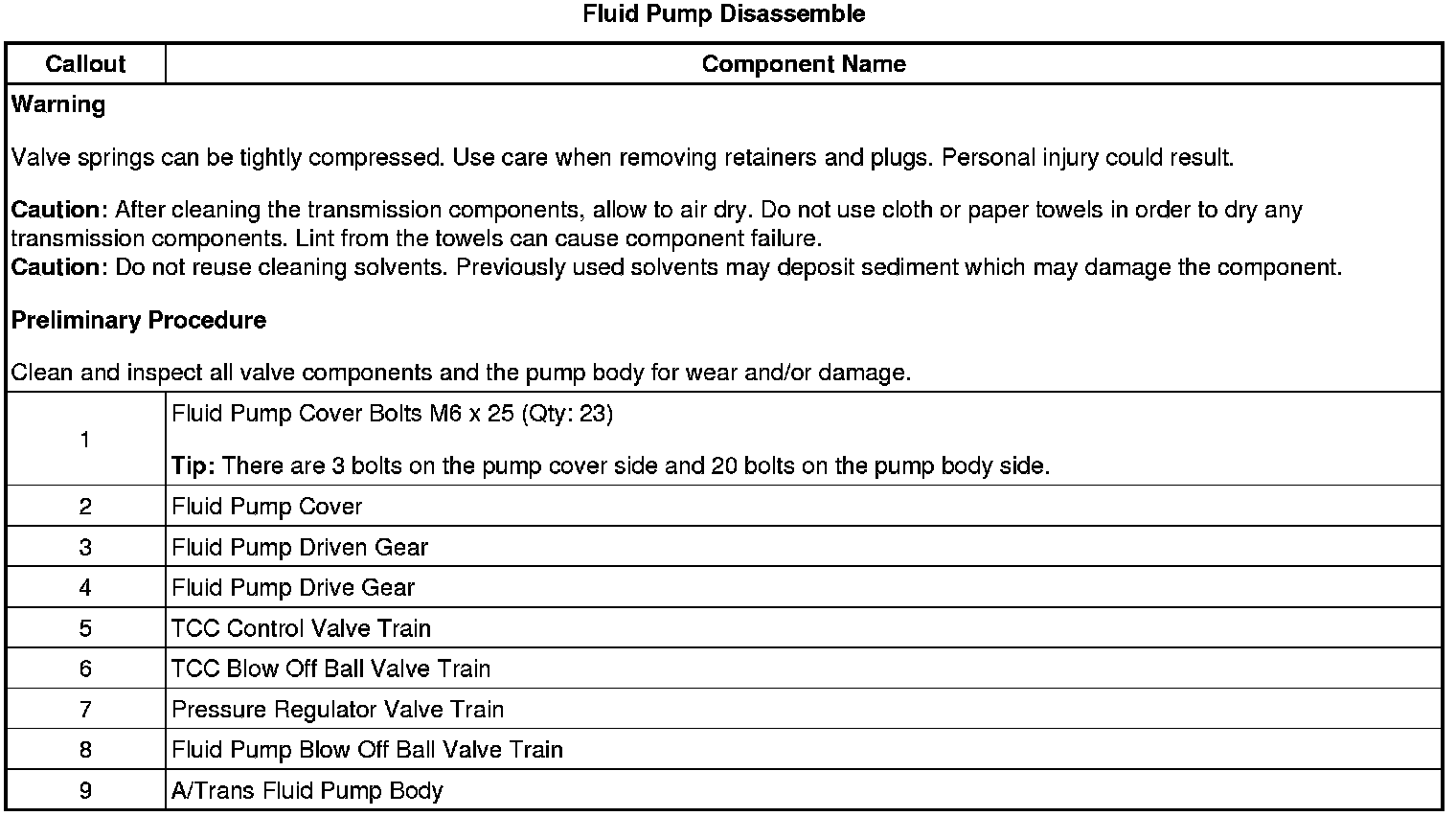

Fluid Pump Disassemble
