Control Valve Body Assembly Removal




Control Valve Body Assembly Removal

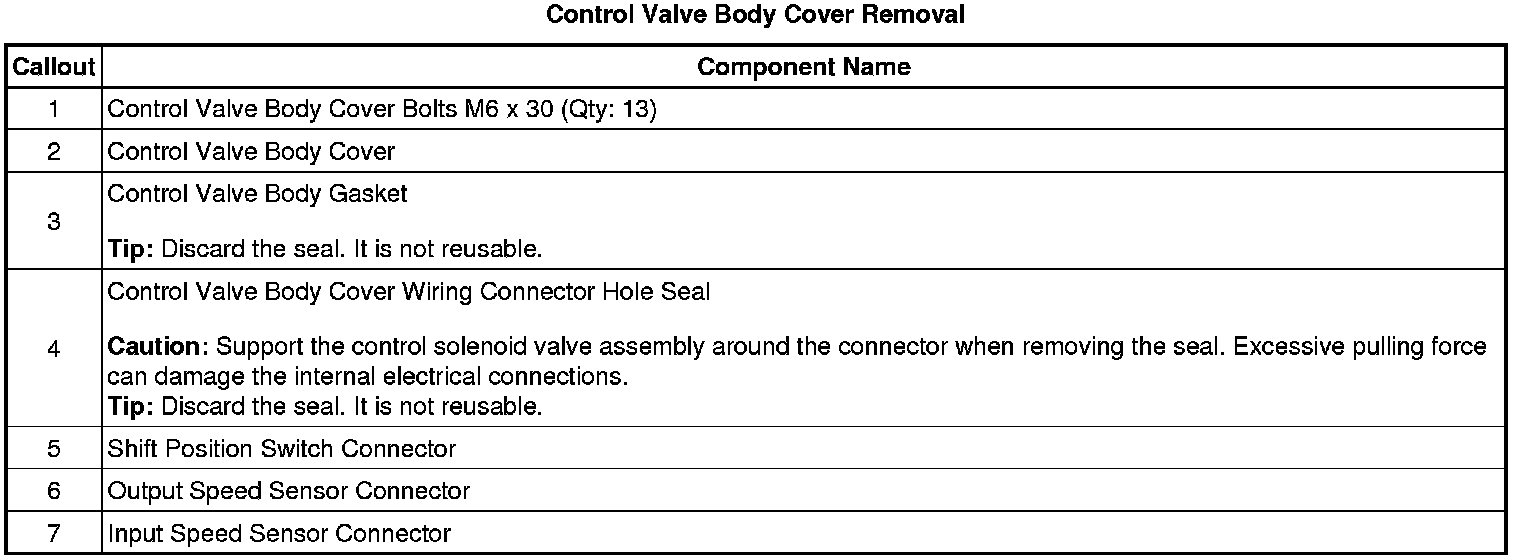

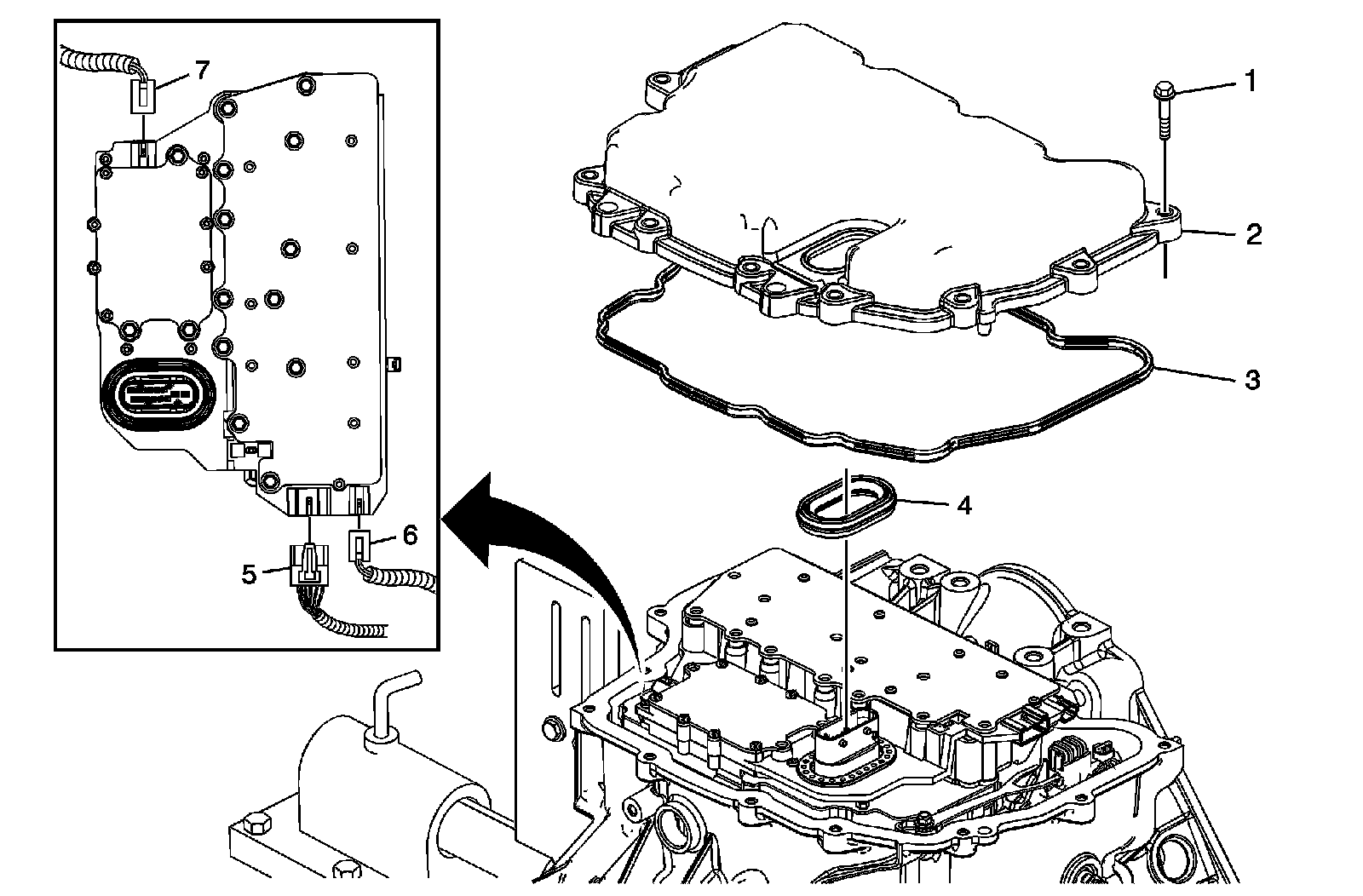

Control Valve Body Cover Removal

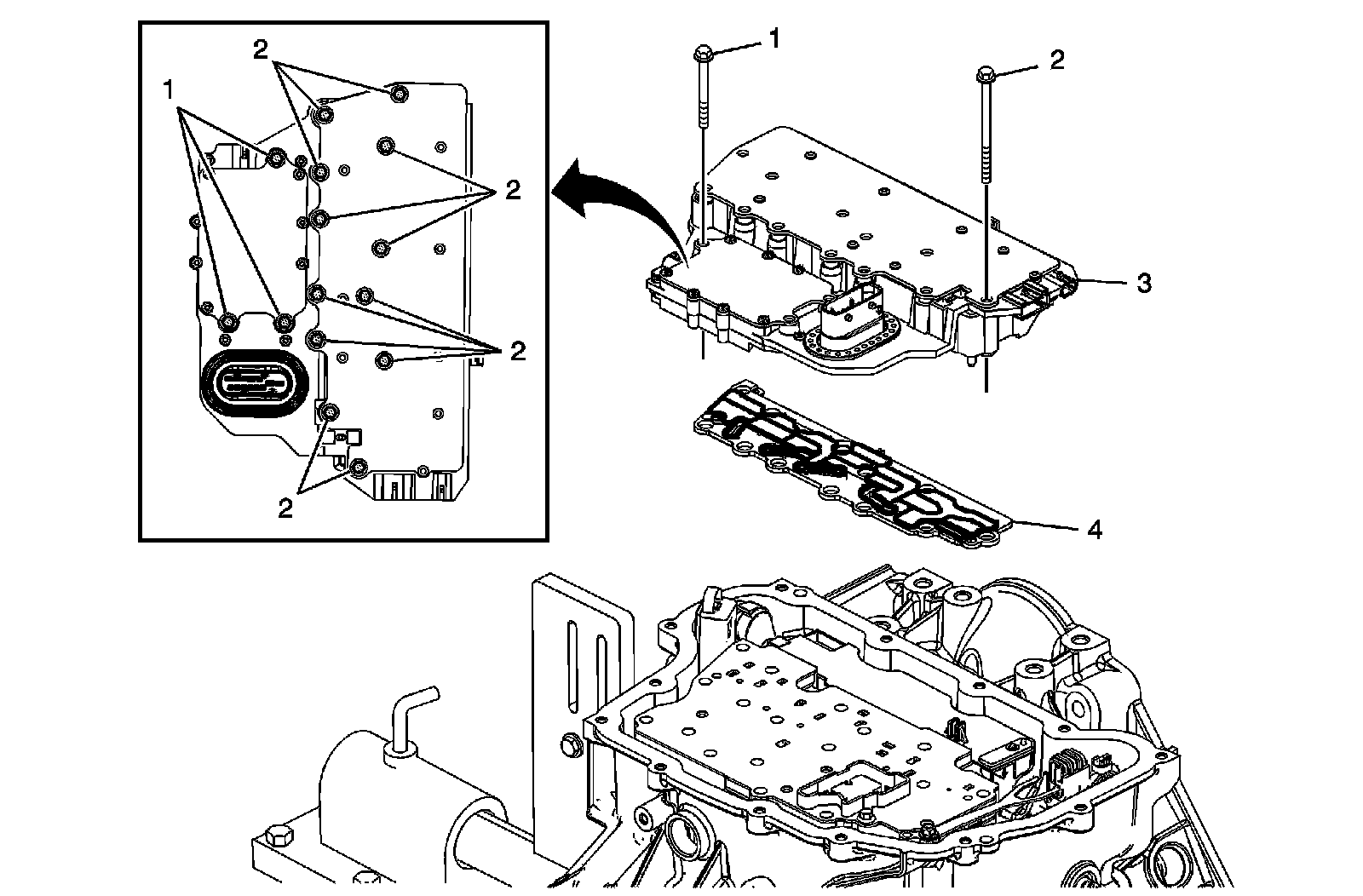

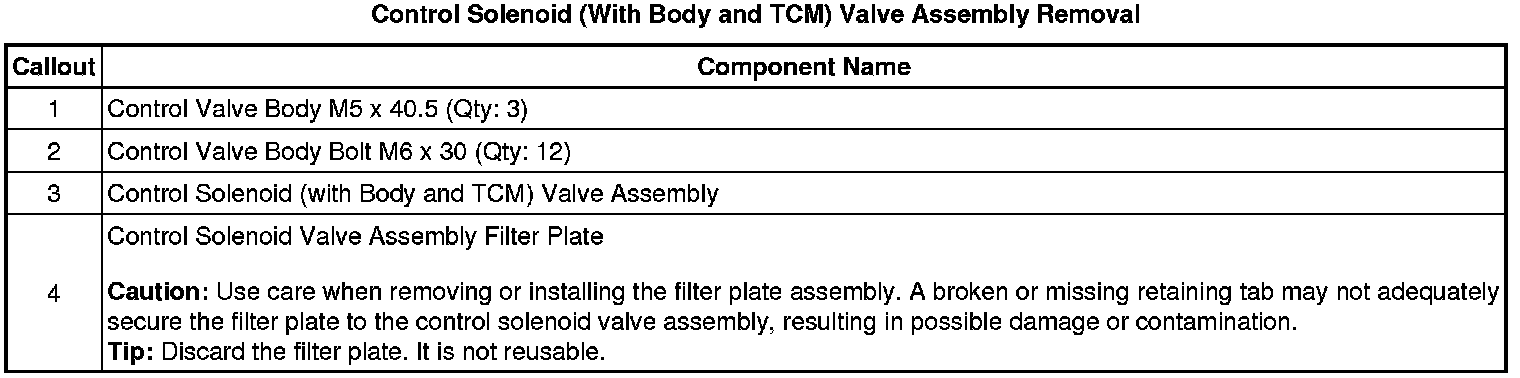

Control Solenoid (With Body and TCM) Valve Assembly Removal

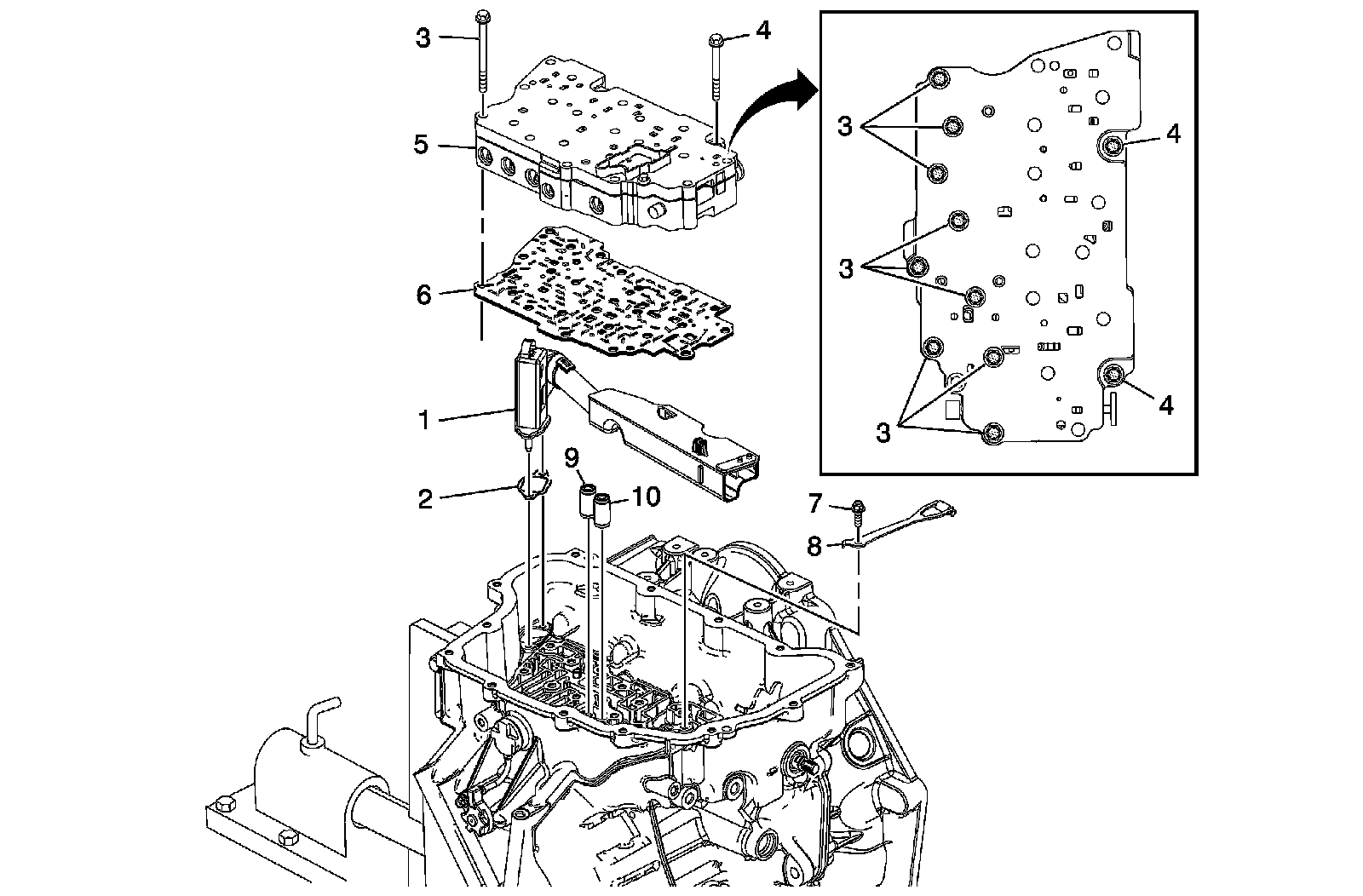

Control Valve Body Assembly Removal
