Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Repair Instructions >> 3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

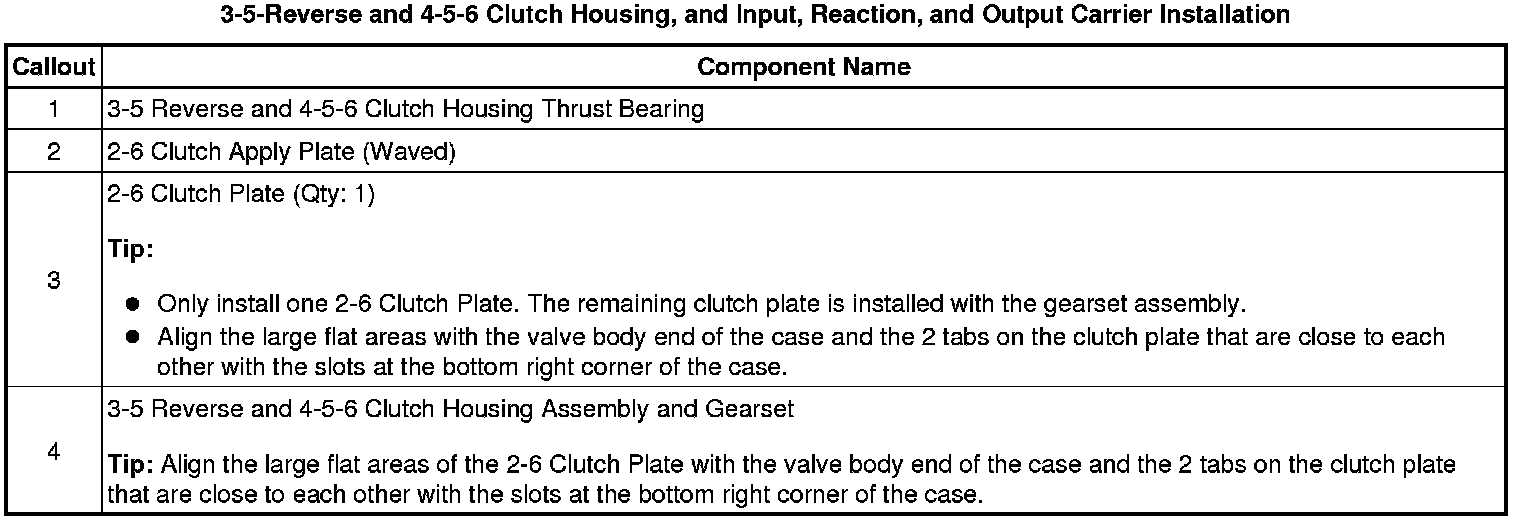

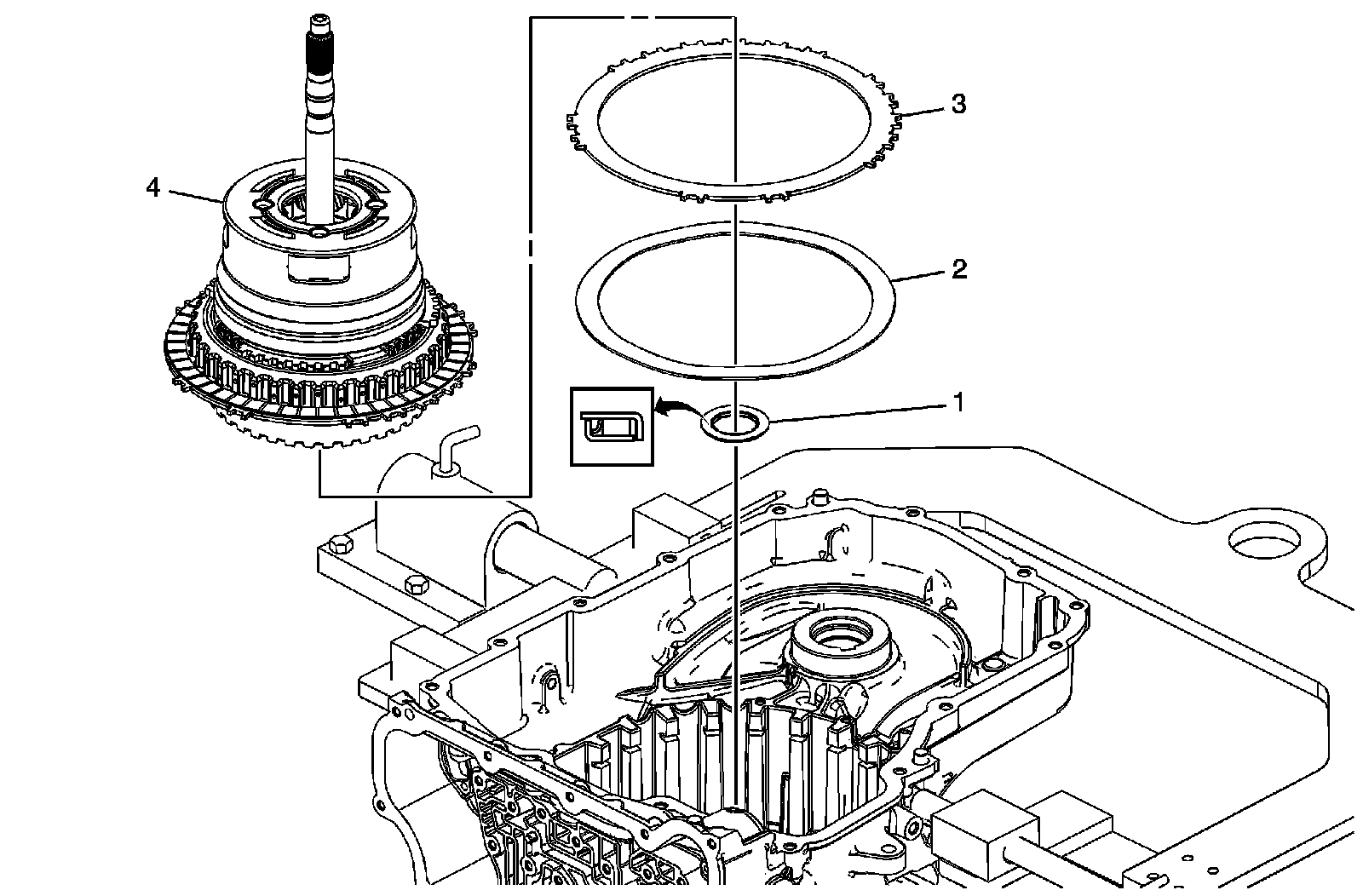

3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation




3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation
