3-5-Reverse and 4-5-6 Clutch Housing Disassemble (6T40/45/50 - Gen 2)




3-5-Reverse and 4-5-6 Clutch Housing Disassemble (6T40/45/50 - Gen 2)

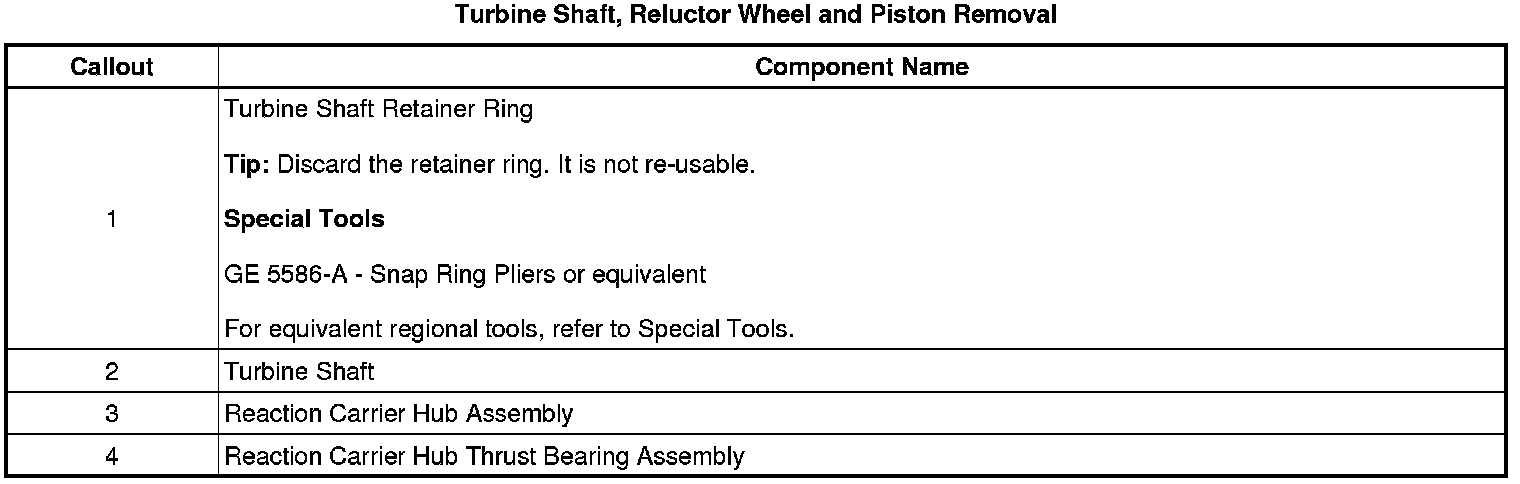

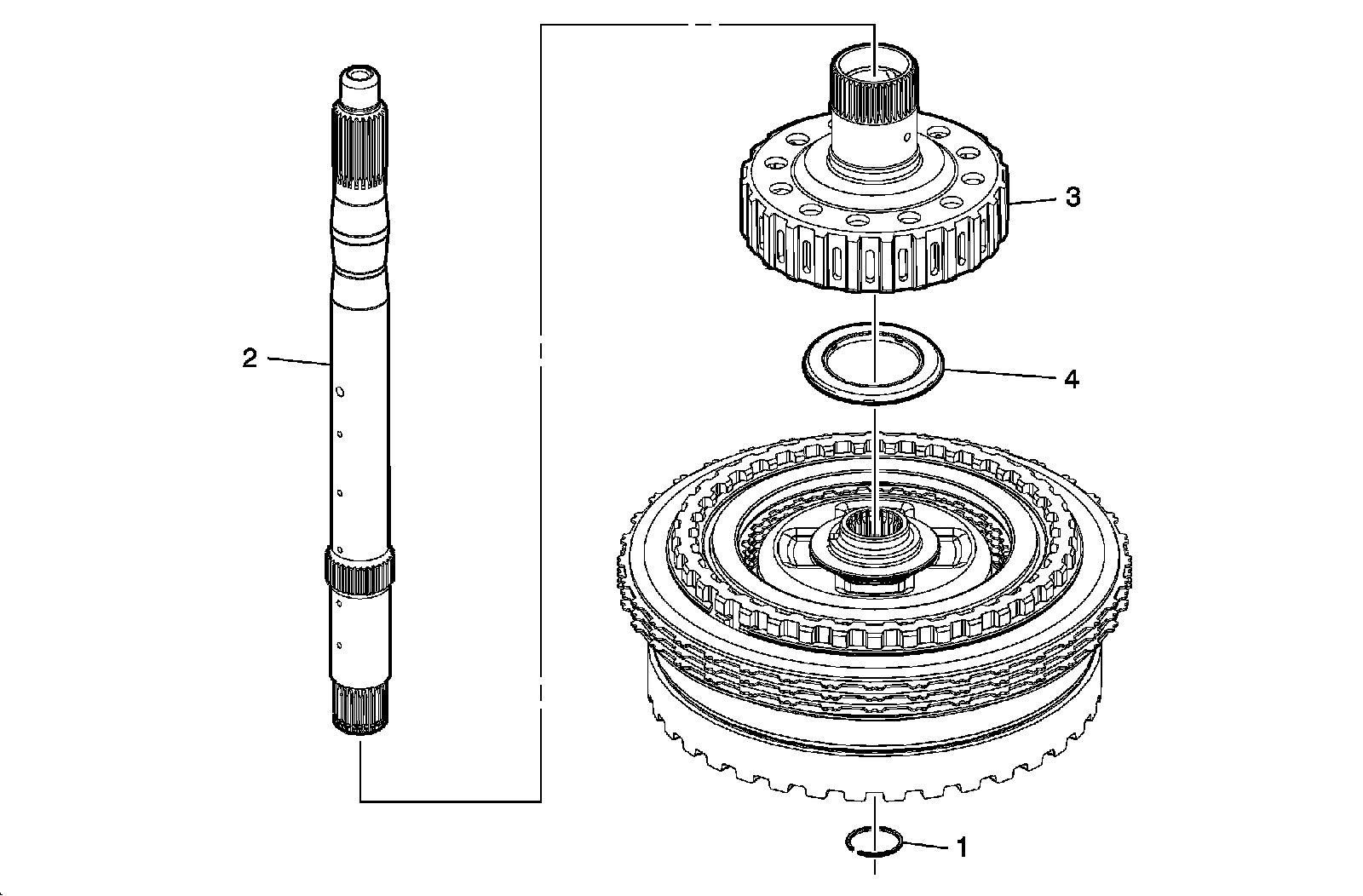

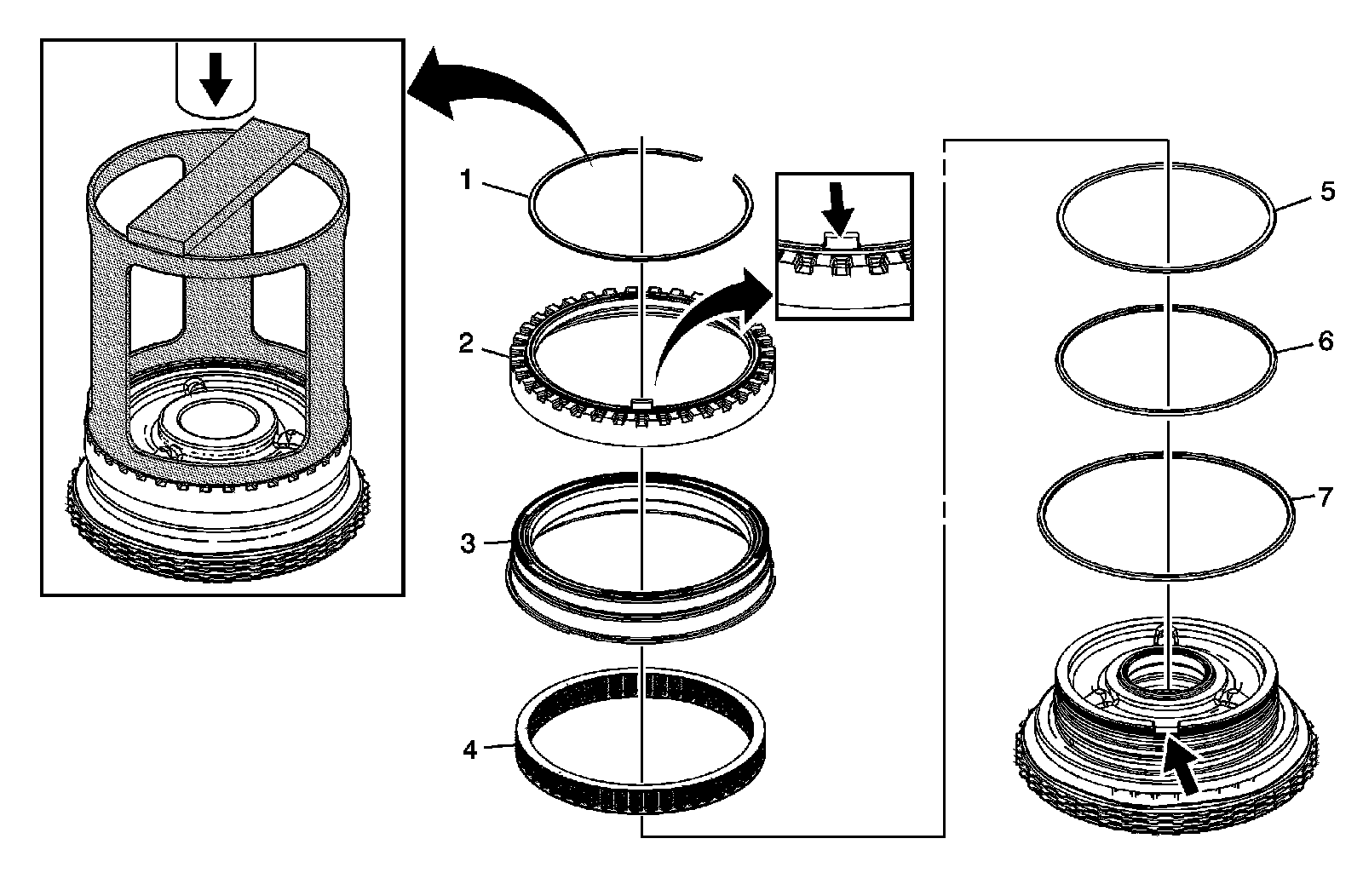

Turbine Shaft, Reluctor Wheel and Piston Removal

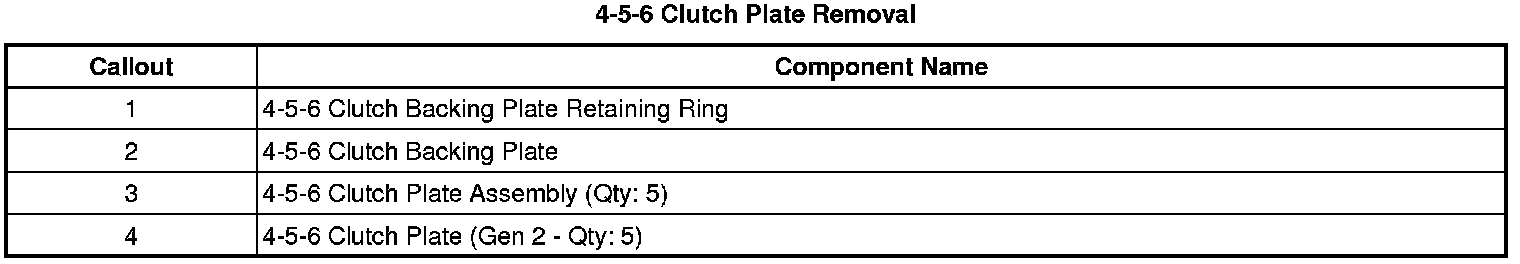

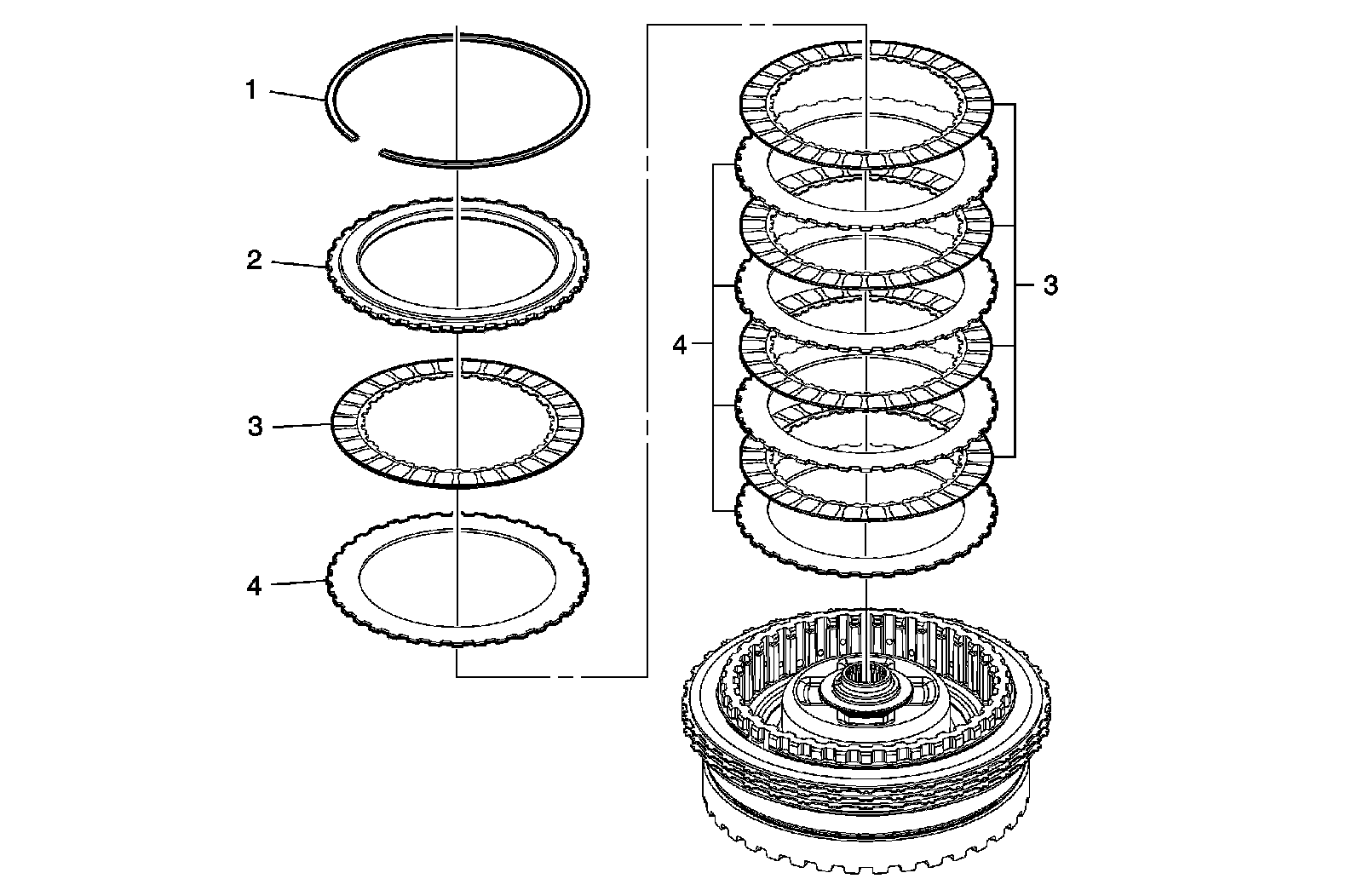

4-5-6 Clutch Plate Removal

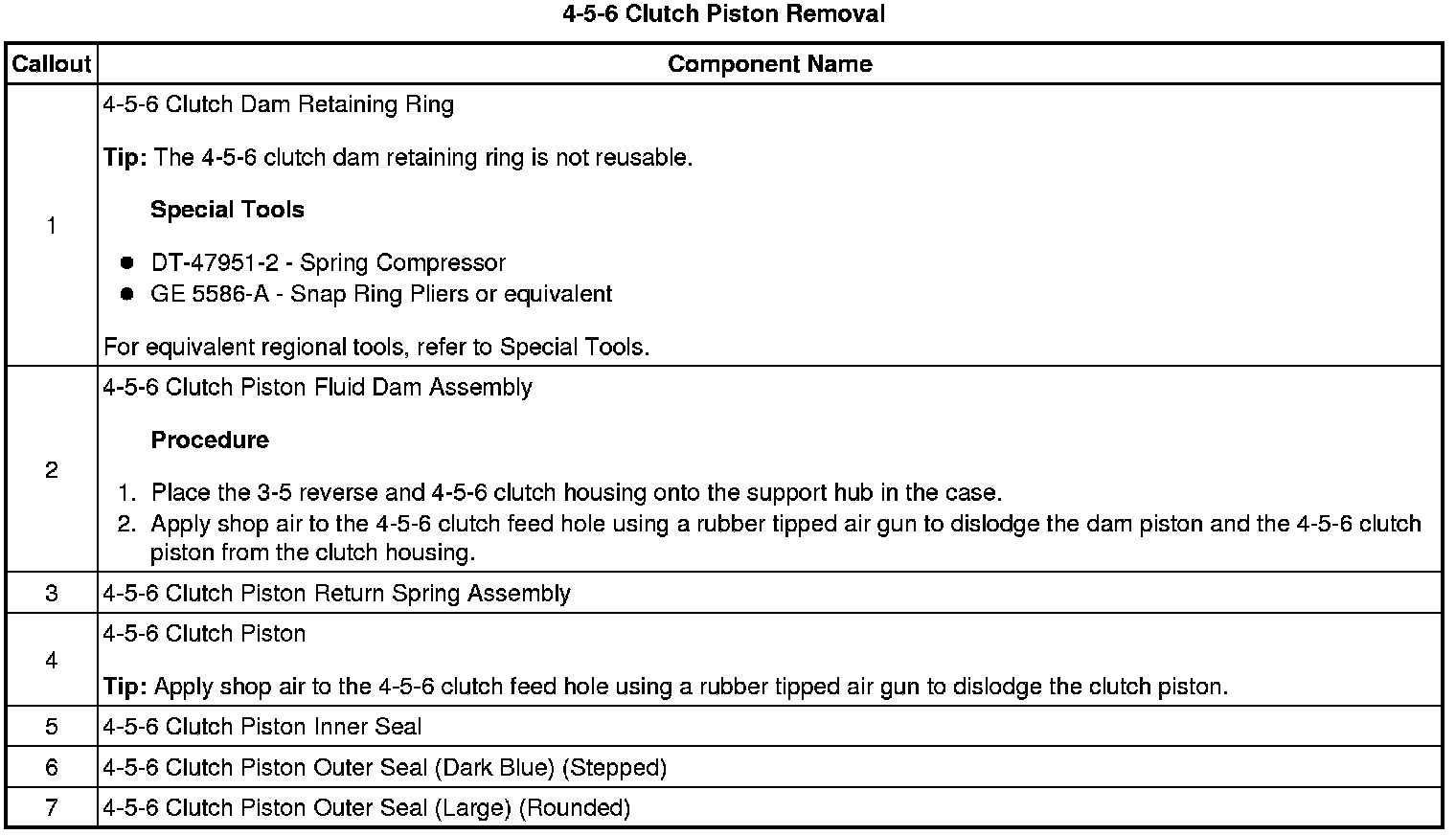

4-5-6 Clutch Piston Removal

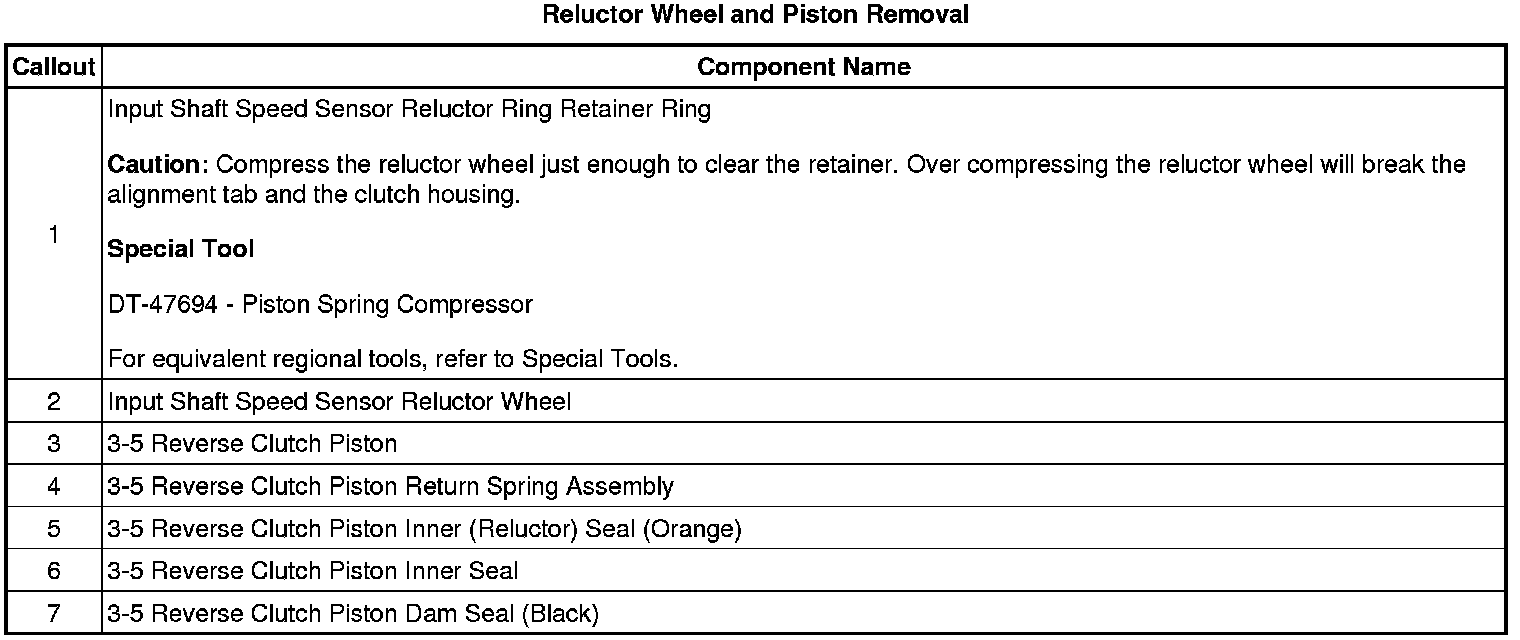

Reluctor Wheel and Piston Removal

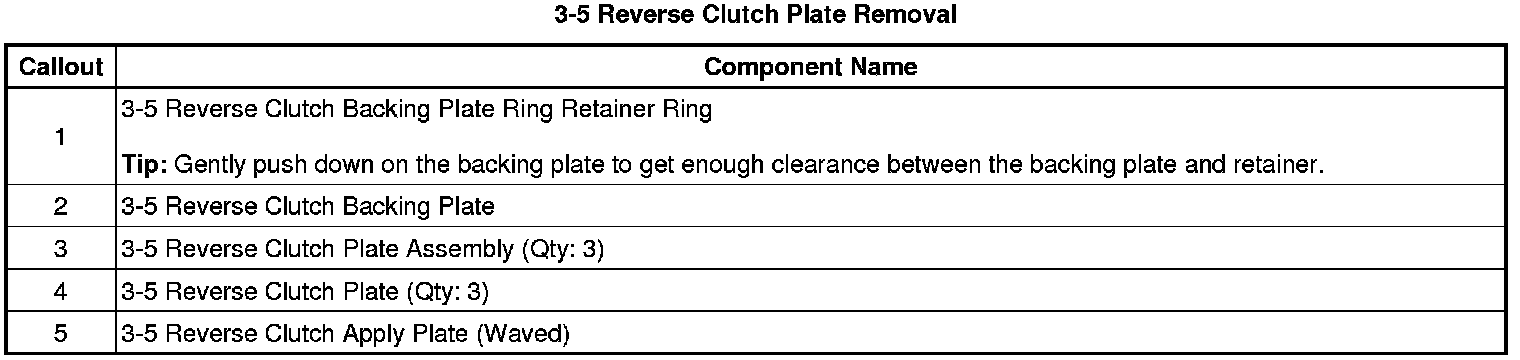

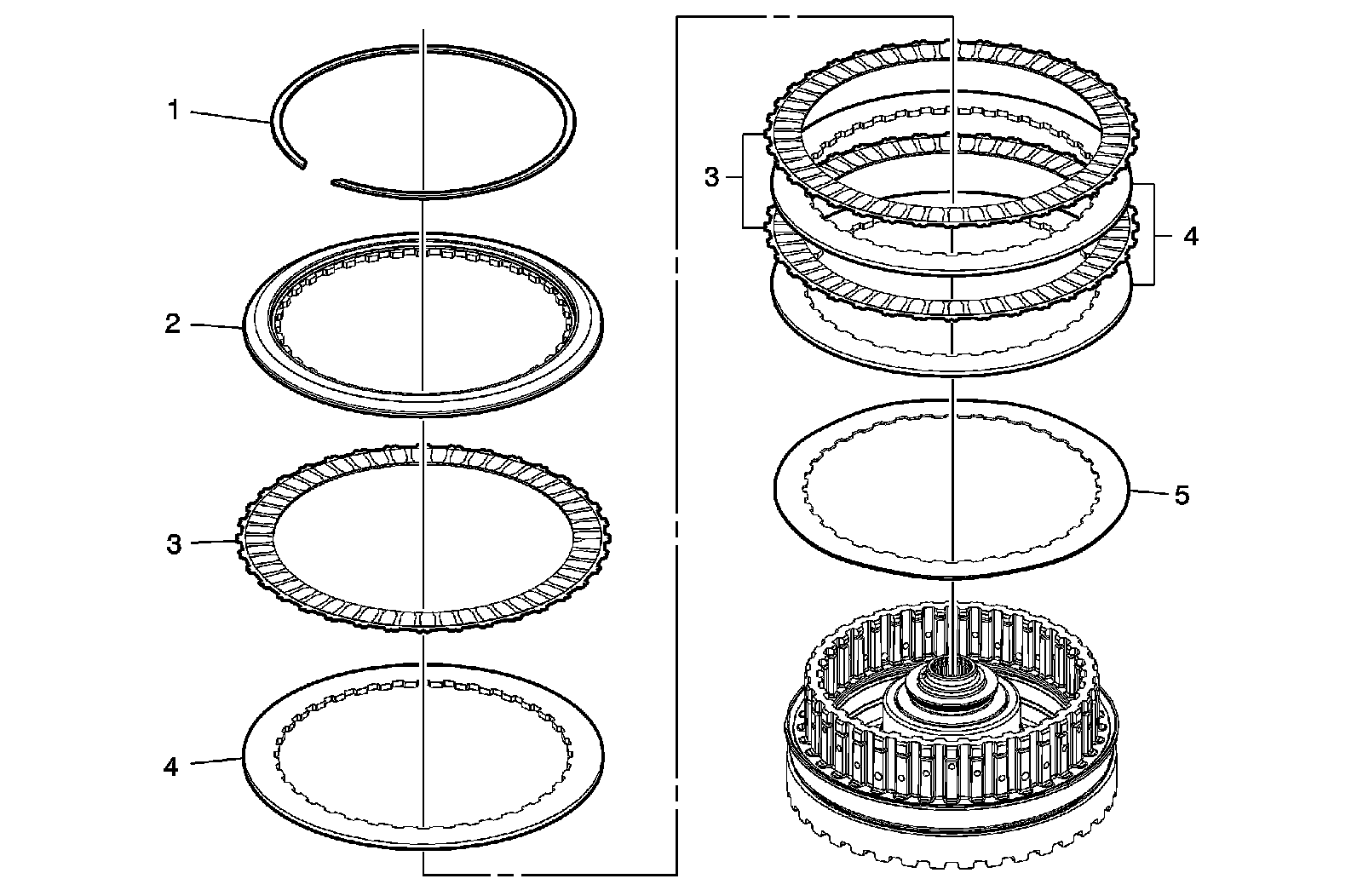

3-5 Reverse Clutch Plate Removal
