Electrical Diagrams
Automatic Transmission Controls Schematics

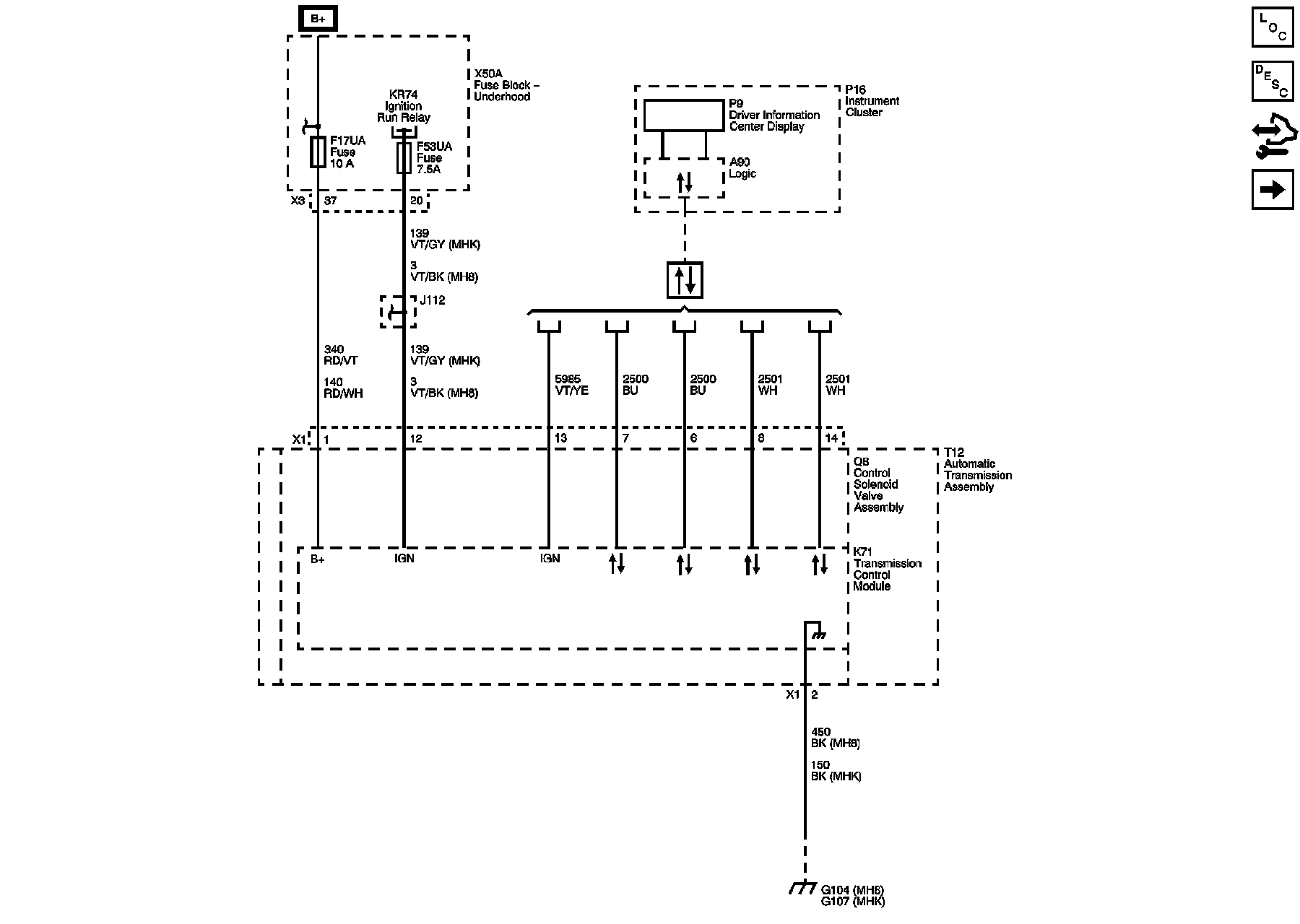

Module Power, Ground, Data Communications and MIL

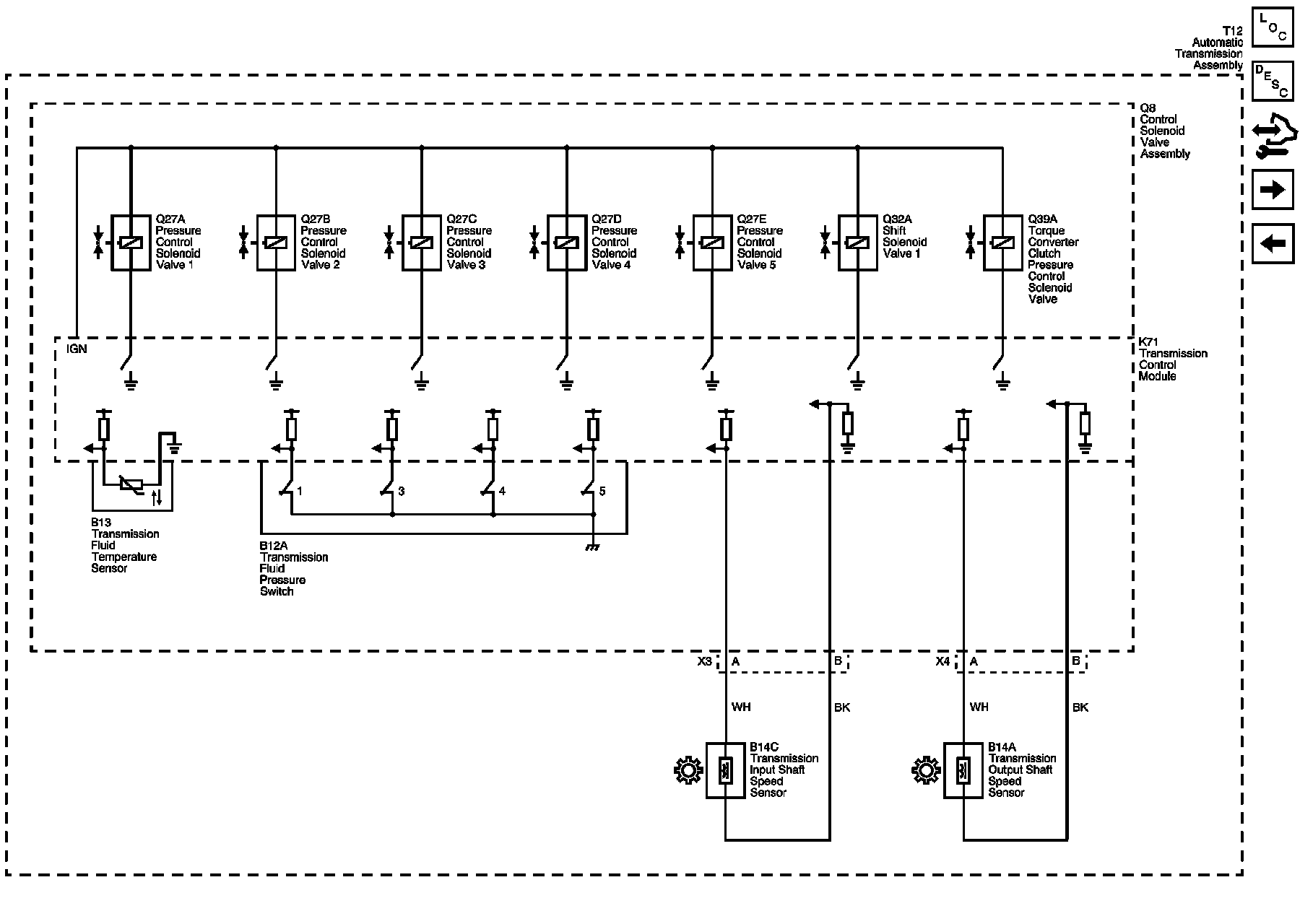

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

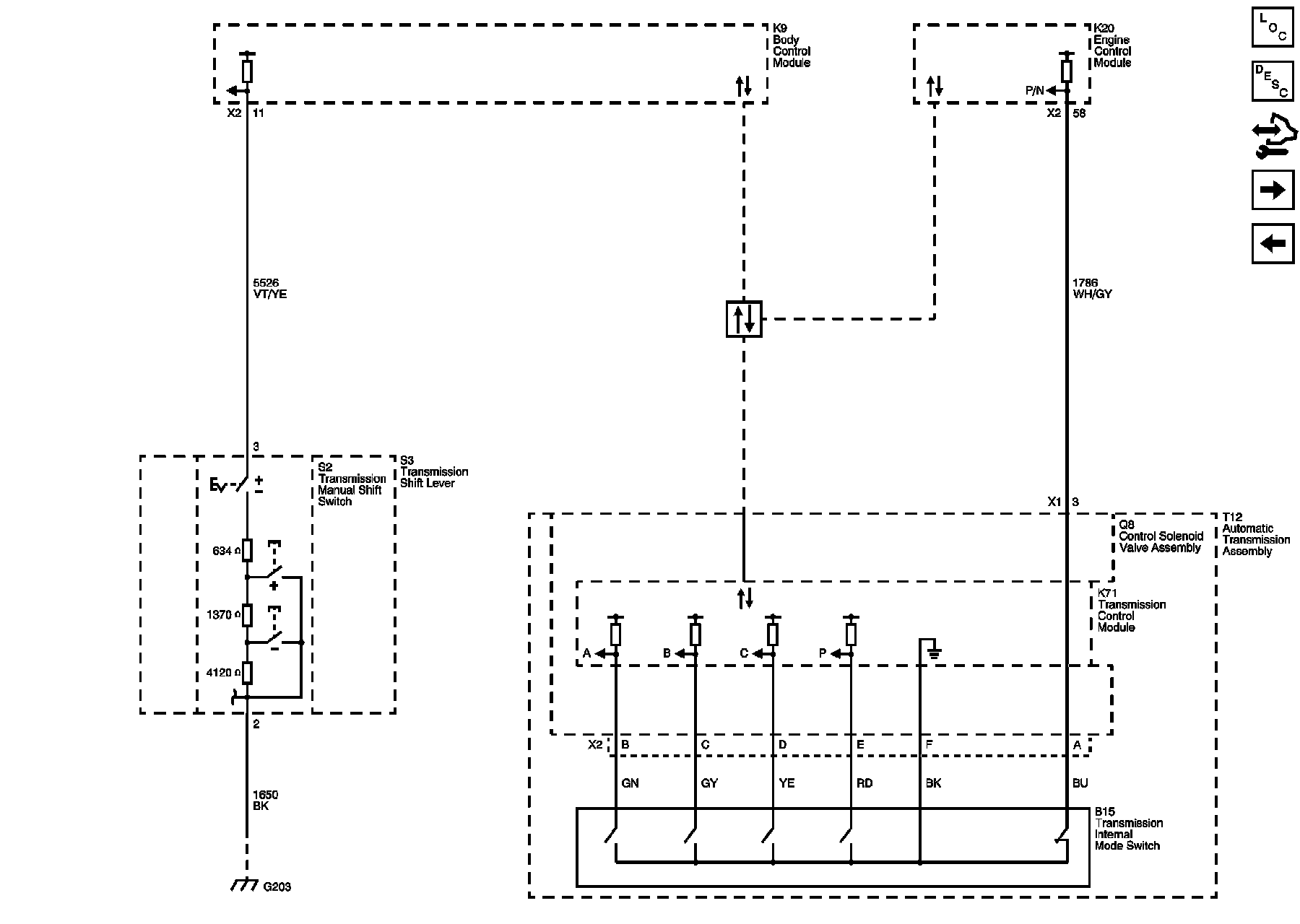

Internal Mode Switch and Tap Up/Tap Down Switches

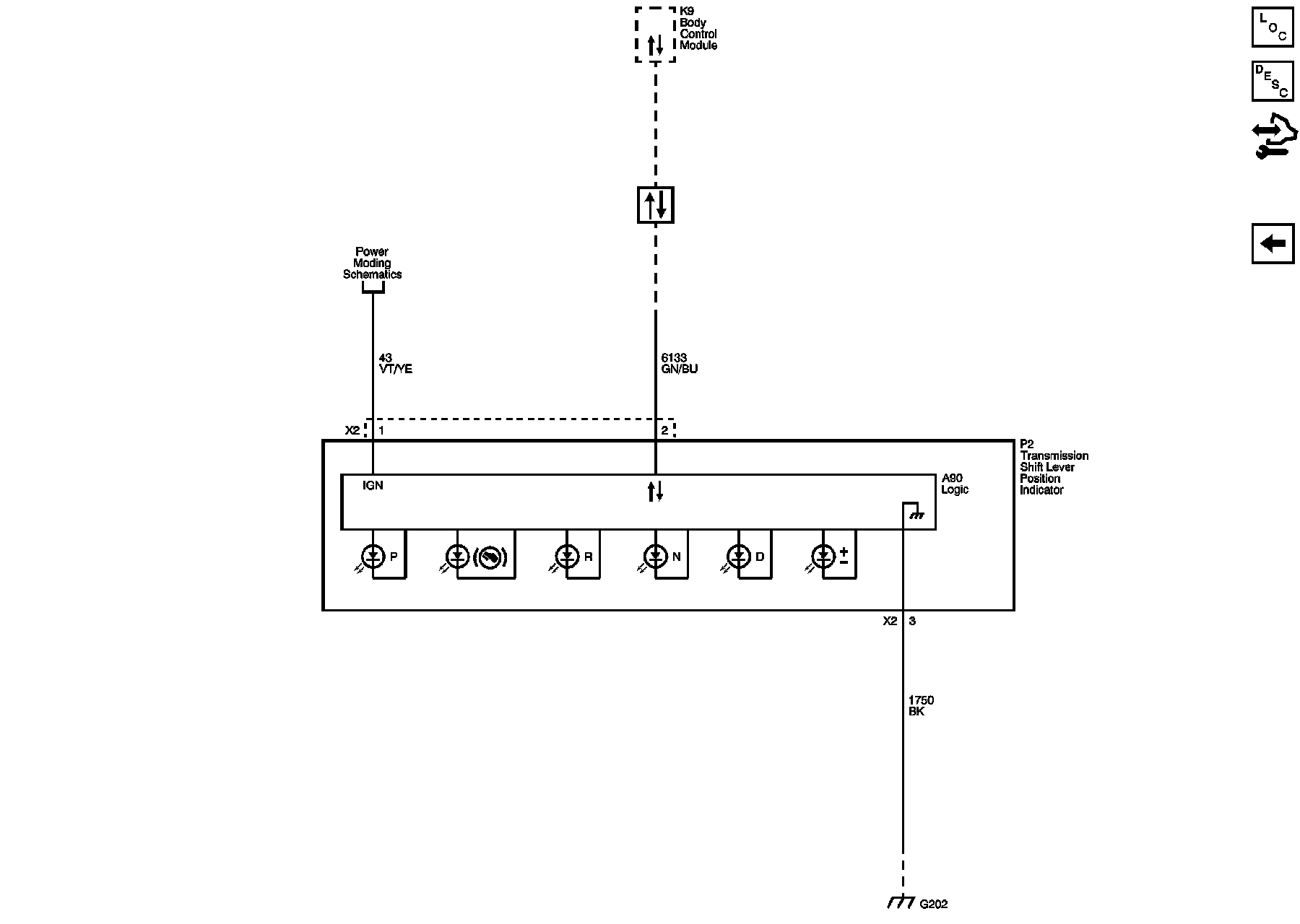

Shift Lever Position Indicator
