Rear Suspension

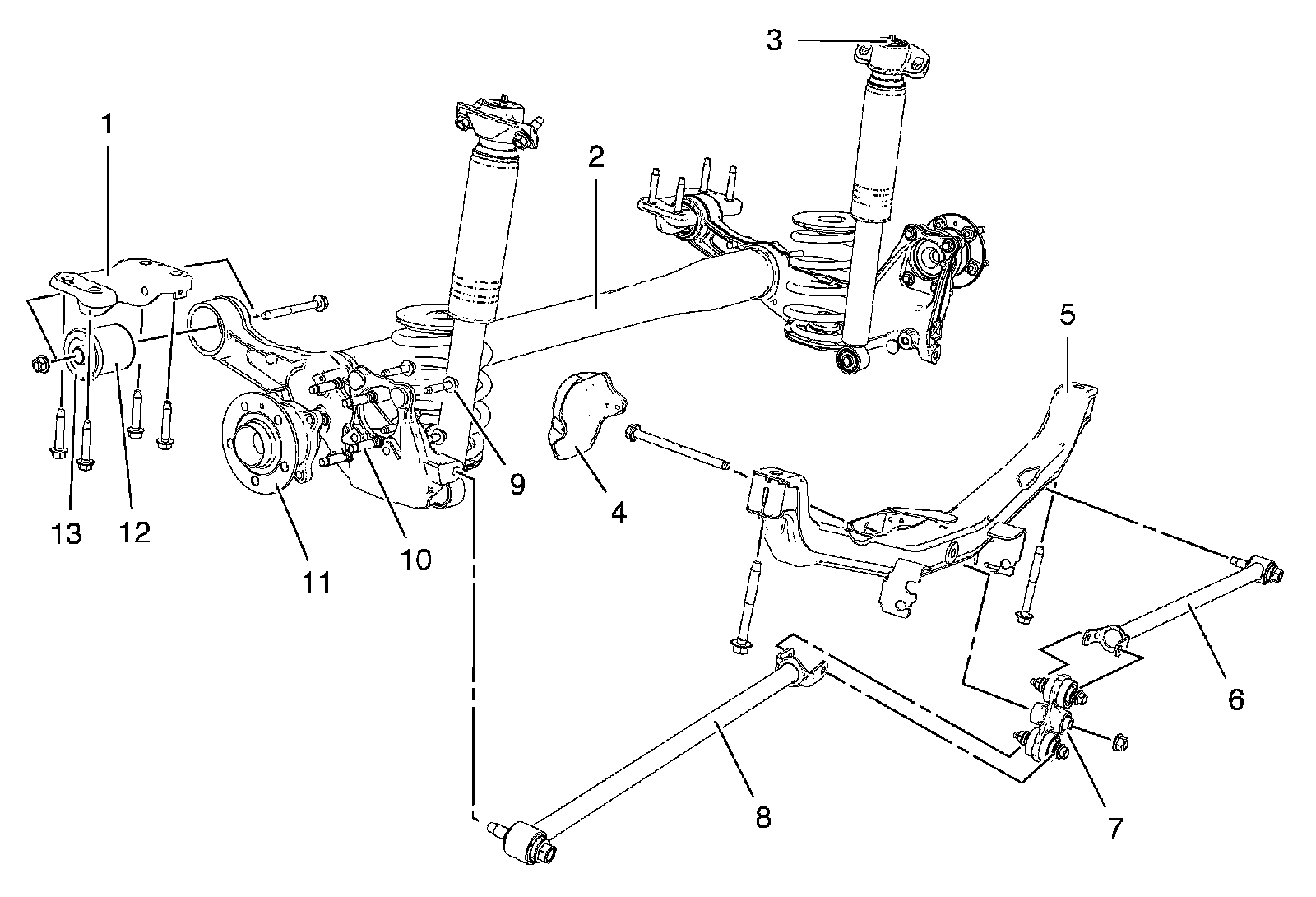

Rear Suspension Components

Rear Axle with Watt Linkage





1 - Rear Axle Bracket

2 - Rear Axle

3 - Rear Shock Absorber

4 - Equalizer Beam Heat Shield

5 - Equalizer Beam Support

6 - Right Equalizer Beam Link

7 - Center Equalizer Beam Link

8 - Left Equalizer Beam Link

9 - Wheel Hub and Bearing Assembly Bolt

10 - Wheel Stud

11 - Wheel Hub and Bearing Assembly

12 - Rear Axle Bushing

13 - Rear Axle Bushing Alignment Mark
