Fuse Block - Underhood Label

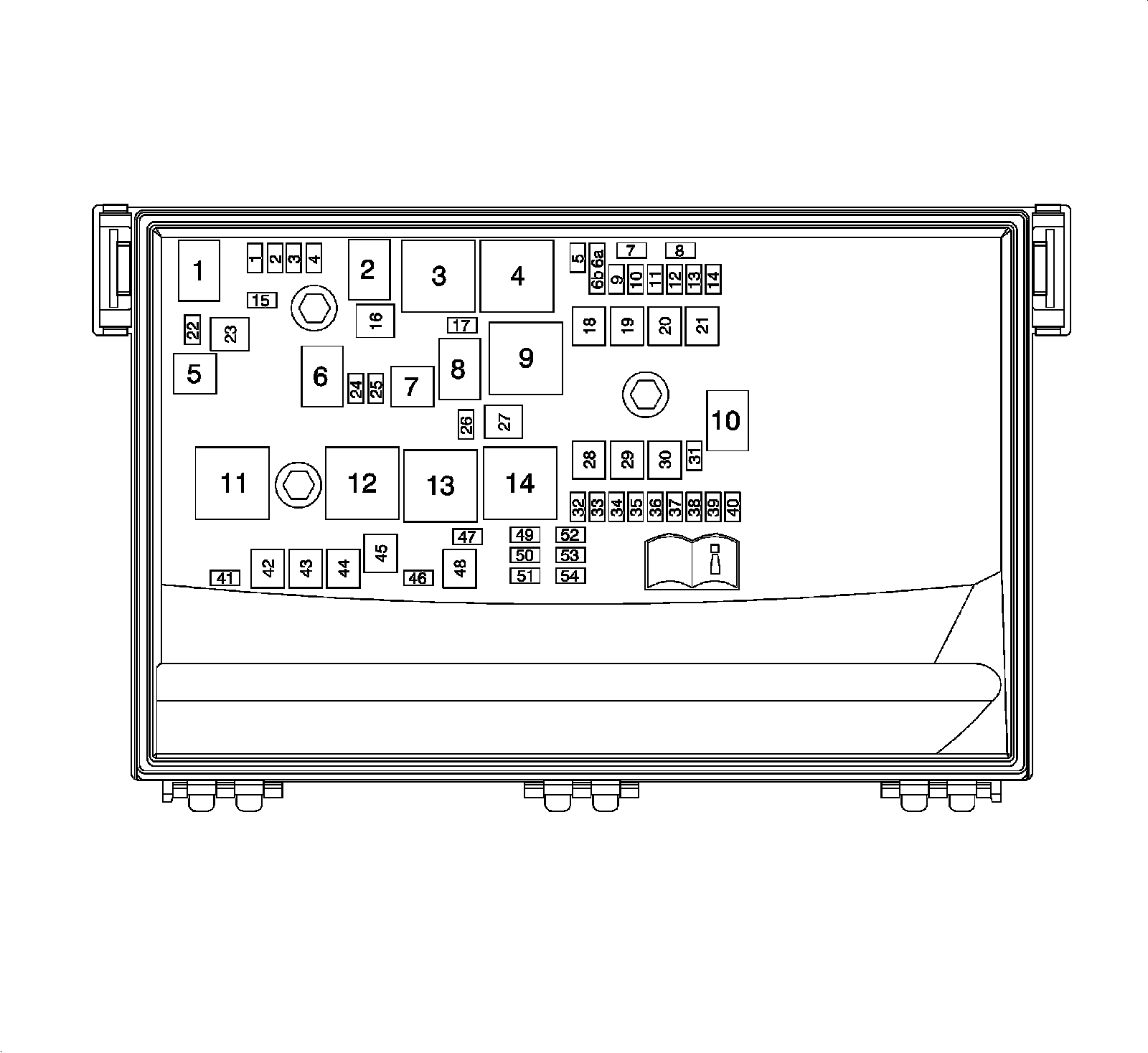

Electrical Center Identification Views

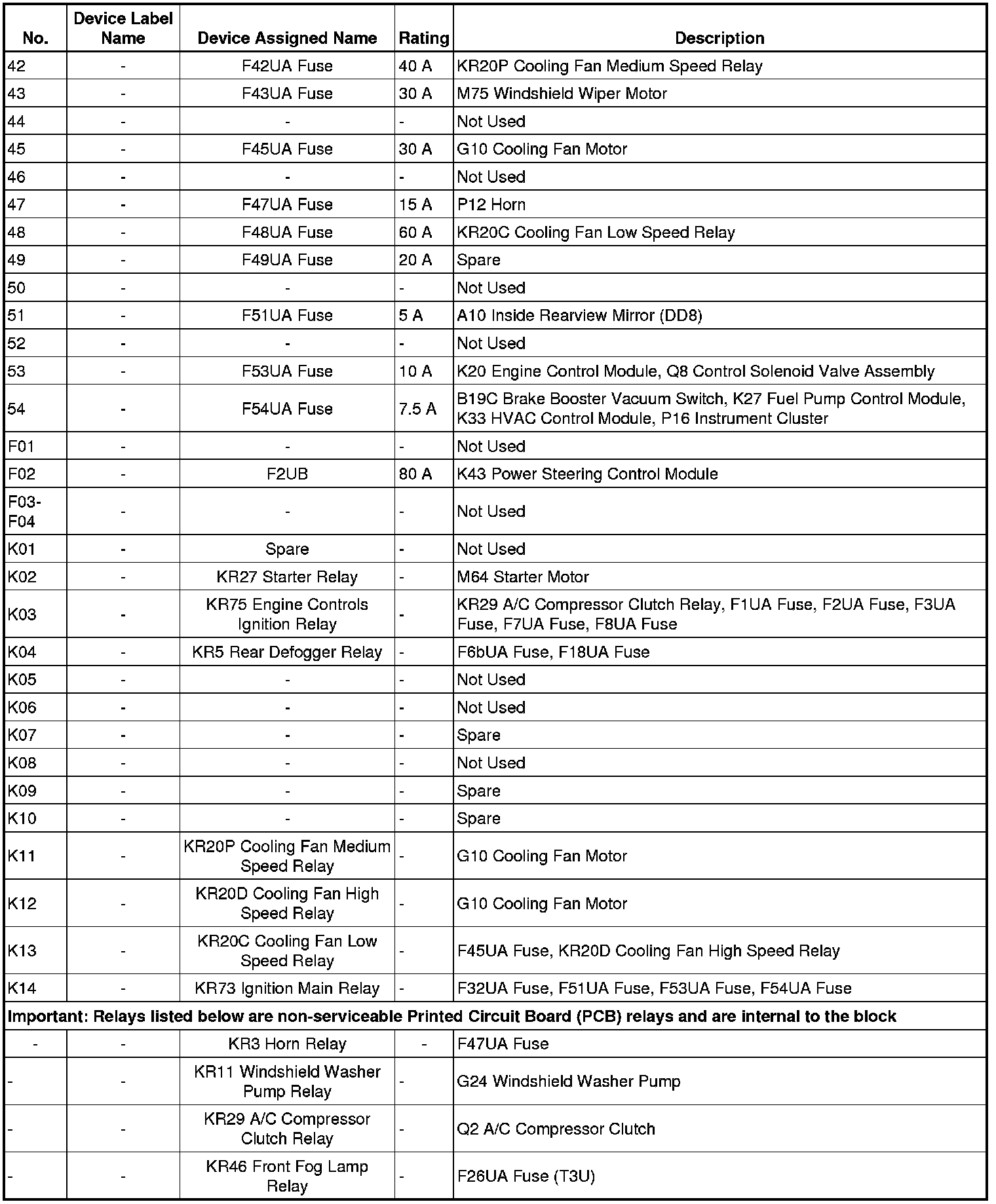

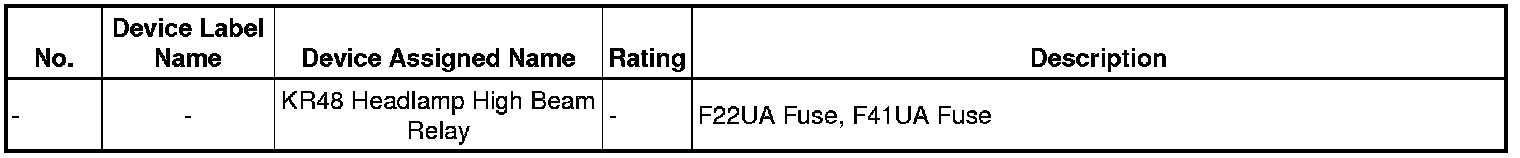

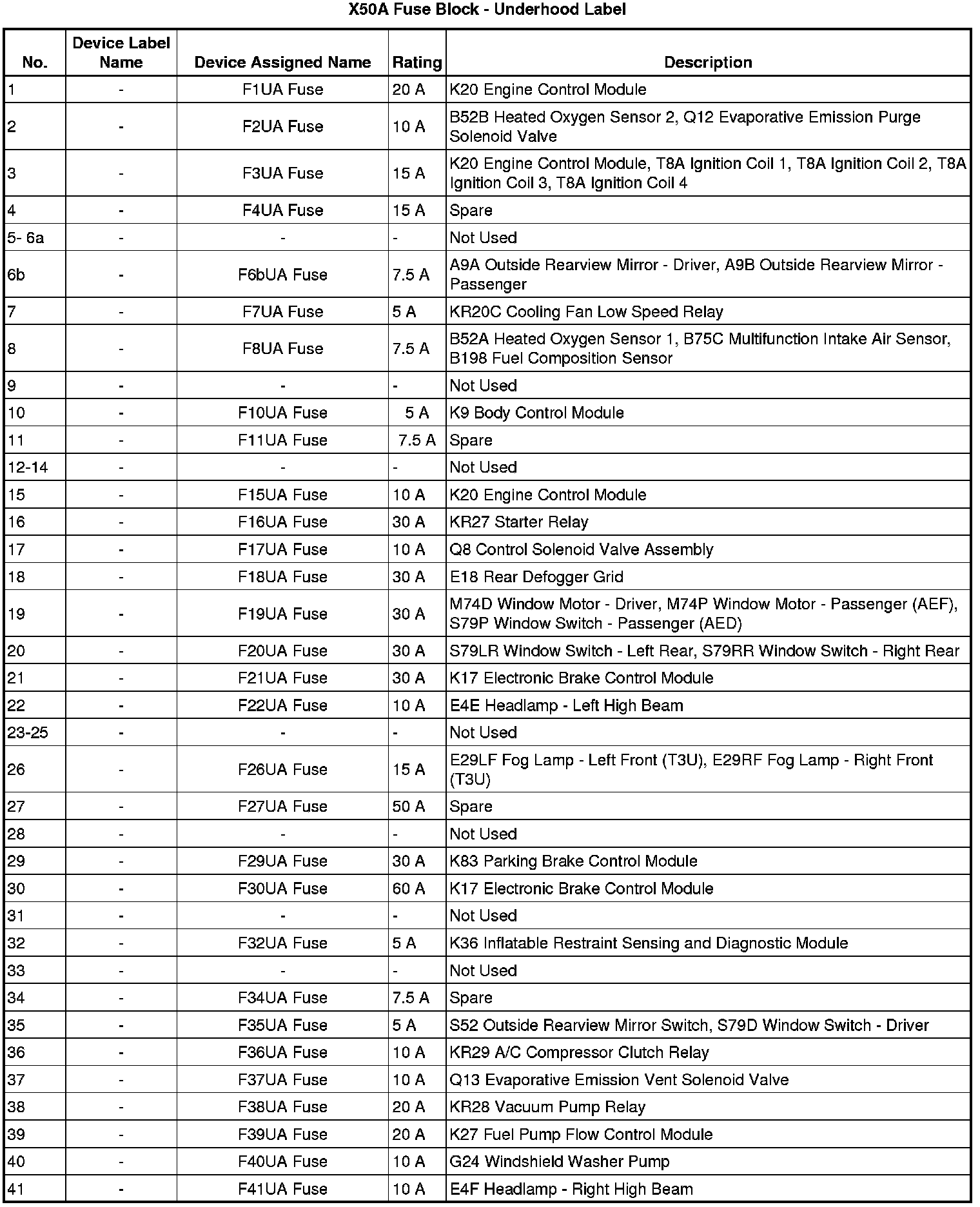

X50A Fuse Block - Underhood Label
