Fuse Block - Rear Body X3 (UD7)

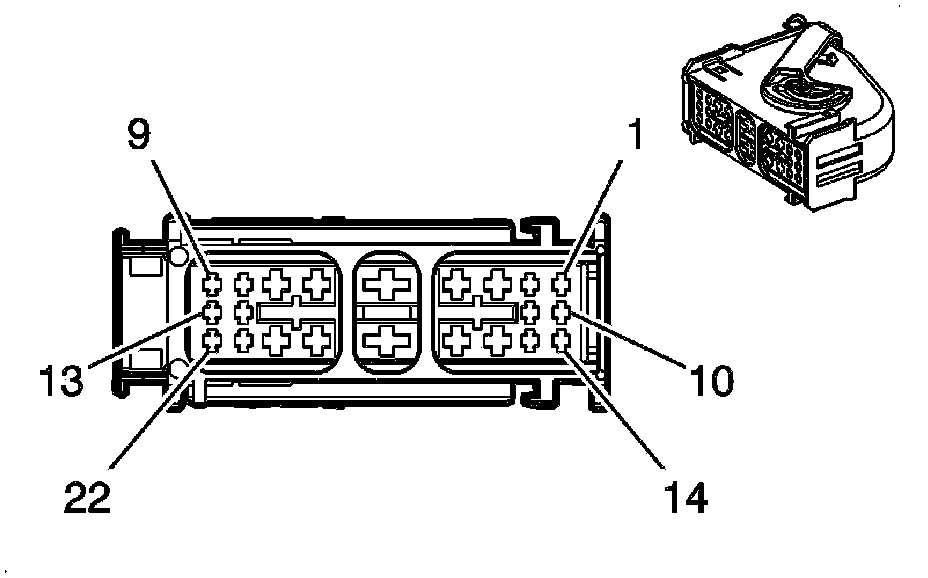

Electrical Center Identification Views

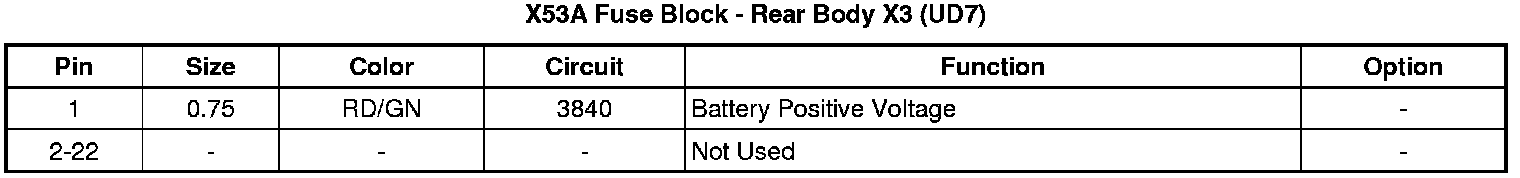

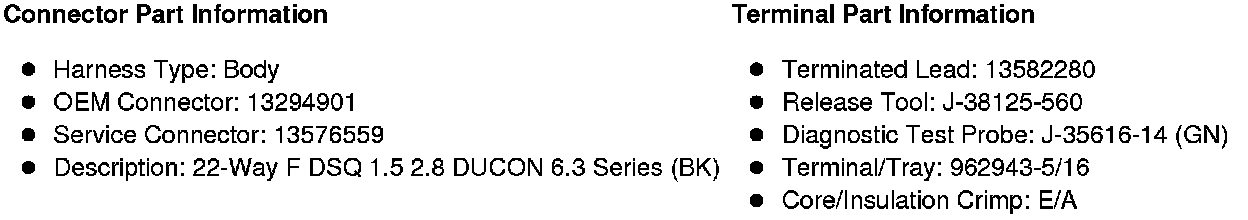

X53A Fuse Block - Rear Body X3 (UD7)
