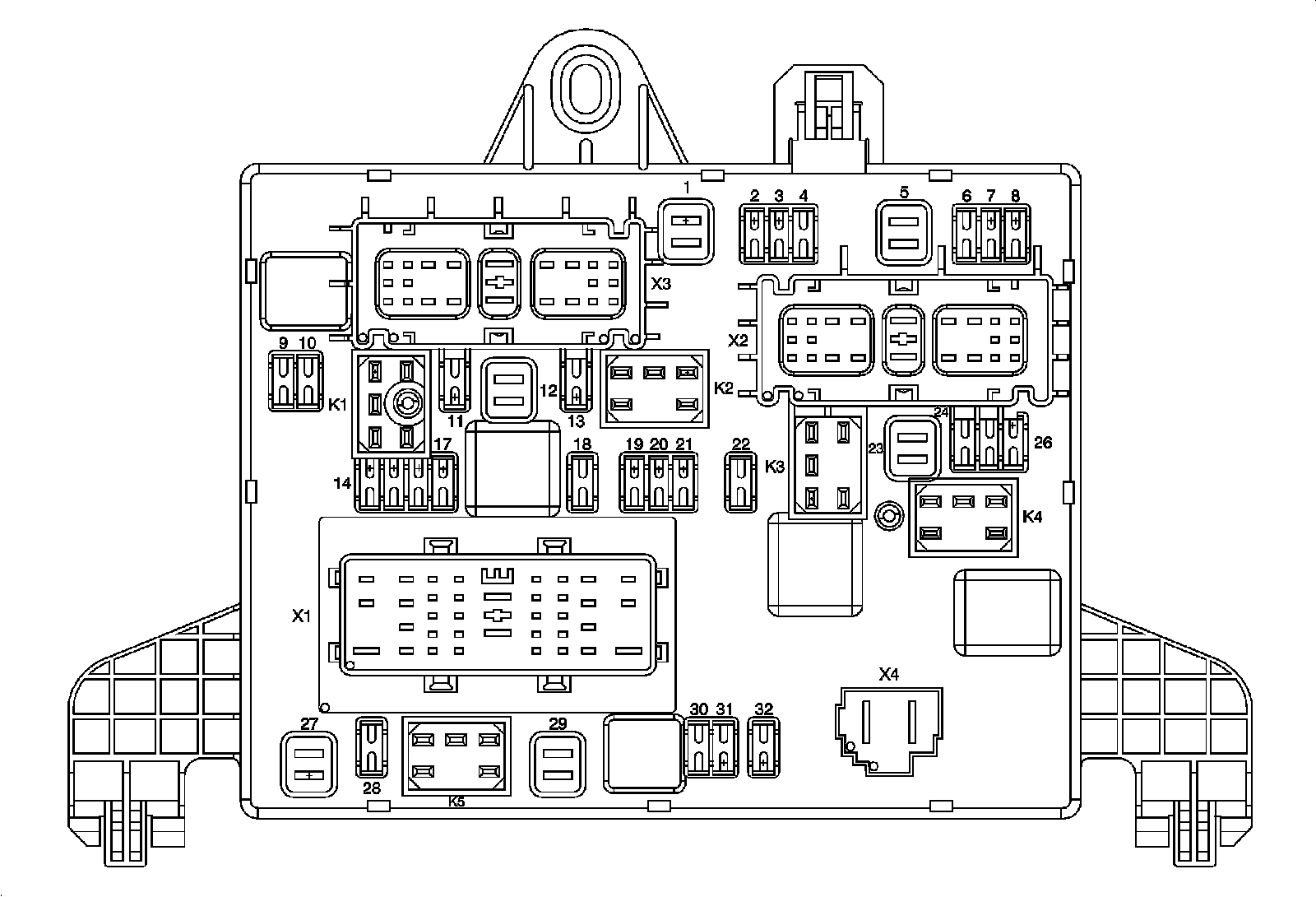

Fuse Block - Rear Body Top View




Electrical Center Identification Views

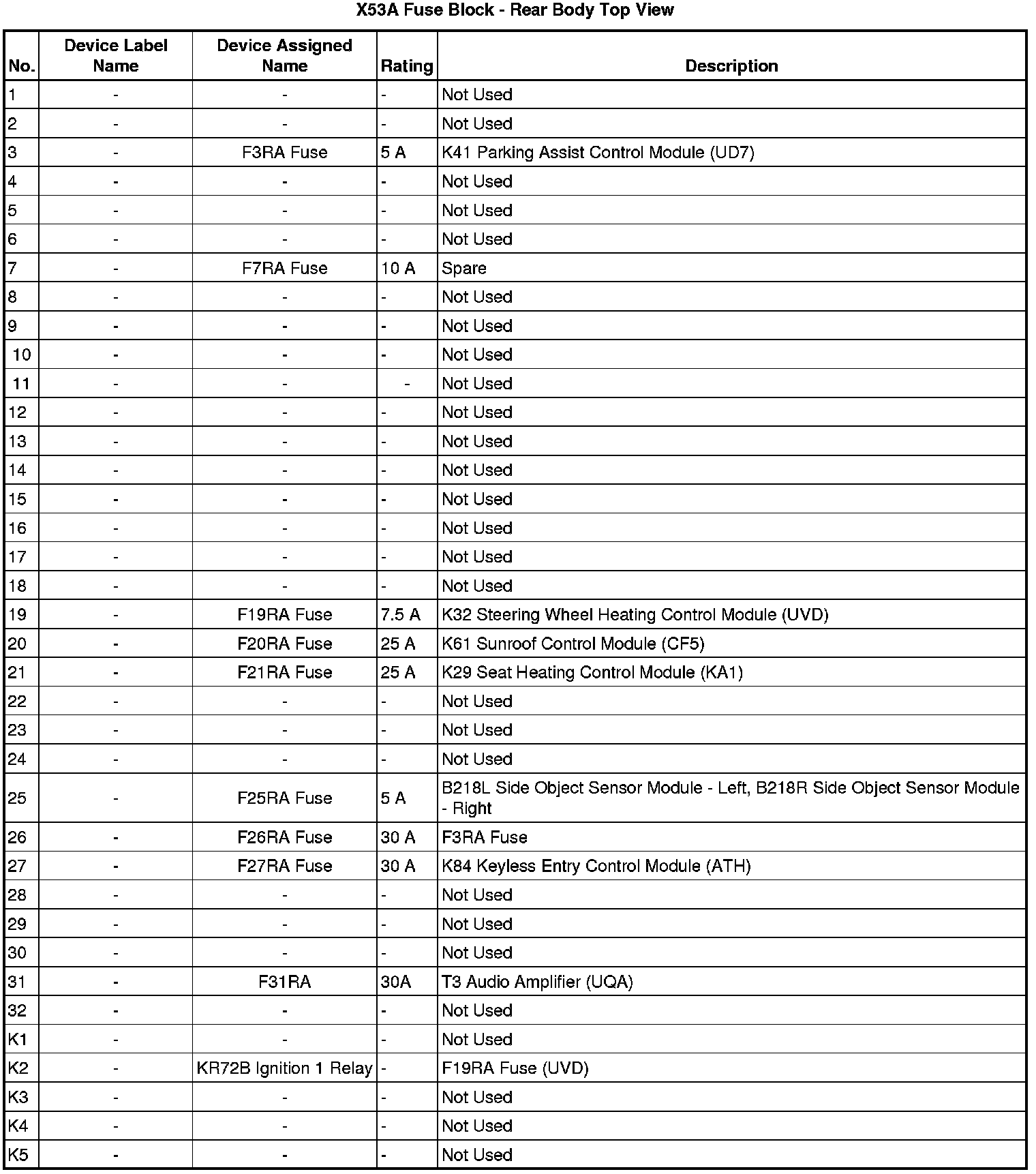

X53A Fuse Block - Rear Body Top View
