Fogging Sensor: Diagrams

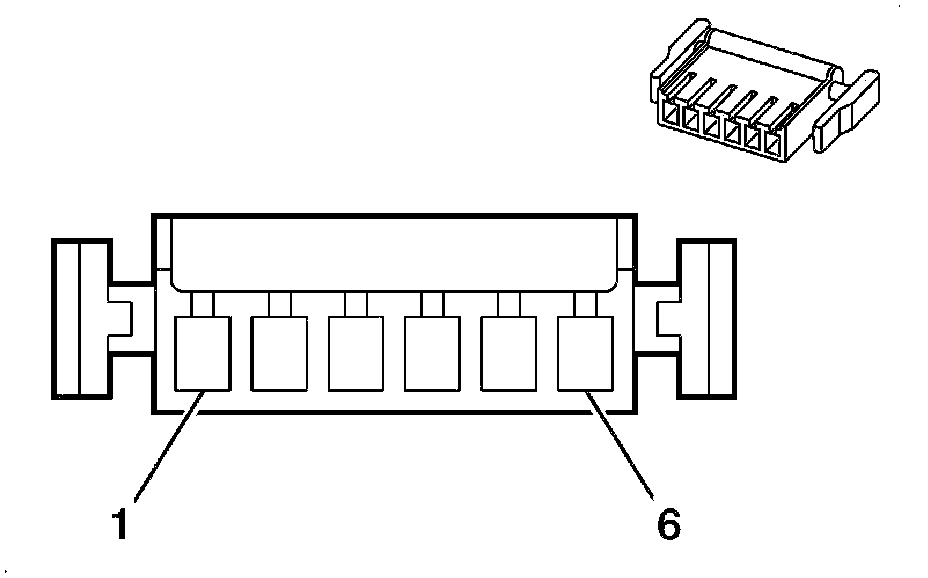

Component Connector End Views

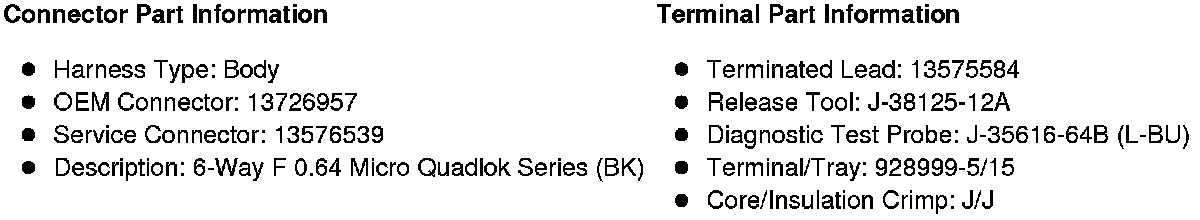

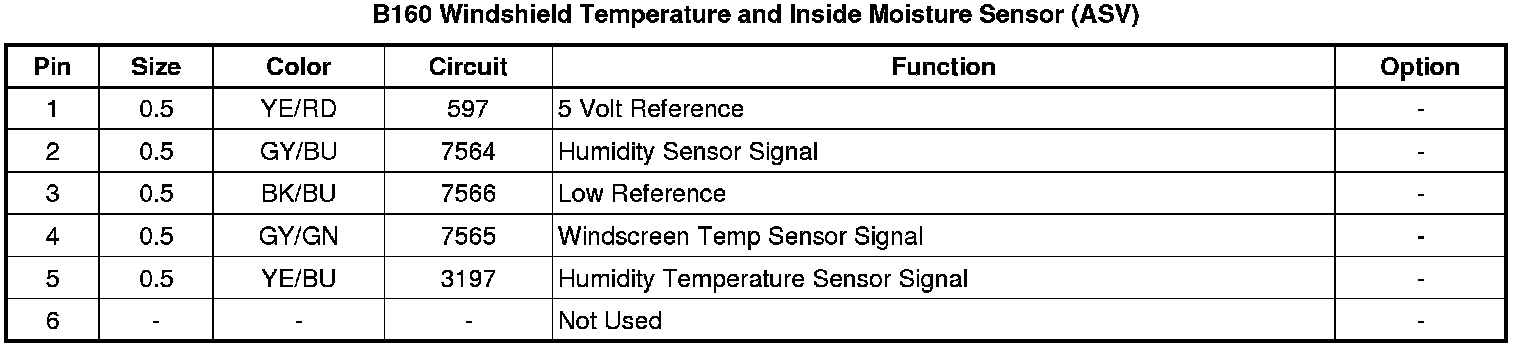

B160 Windshield Temperature and Inside Moisture Sensor (ASV)
