Acceleration Sensor: Diagrams

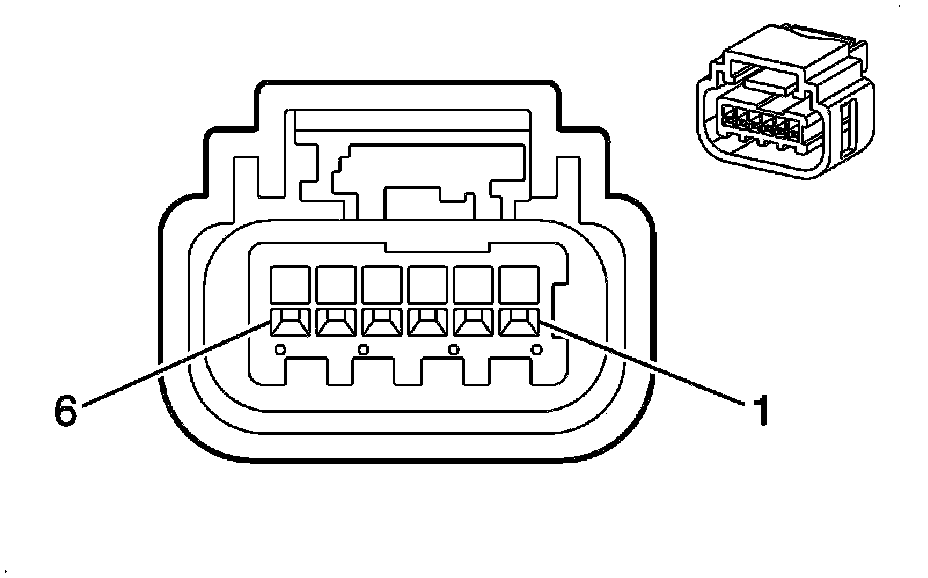

Component Connector End Views

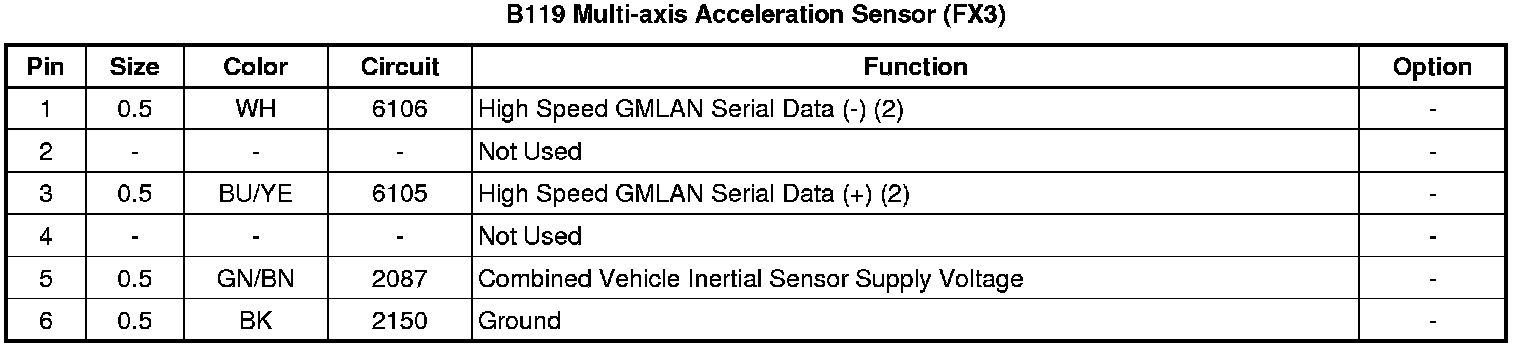

B119 Multi-axis Acceleration Sensor (FX3)
