Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Steering >> Steering Angle Sensor >> Diagrams

Steering Angle Sensor: Diagrams

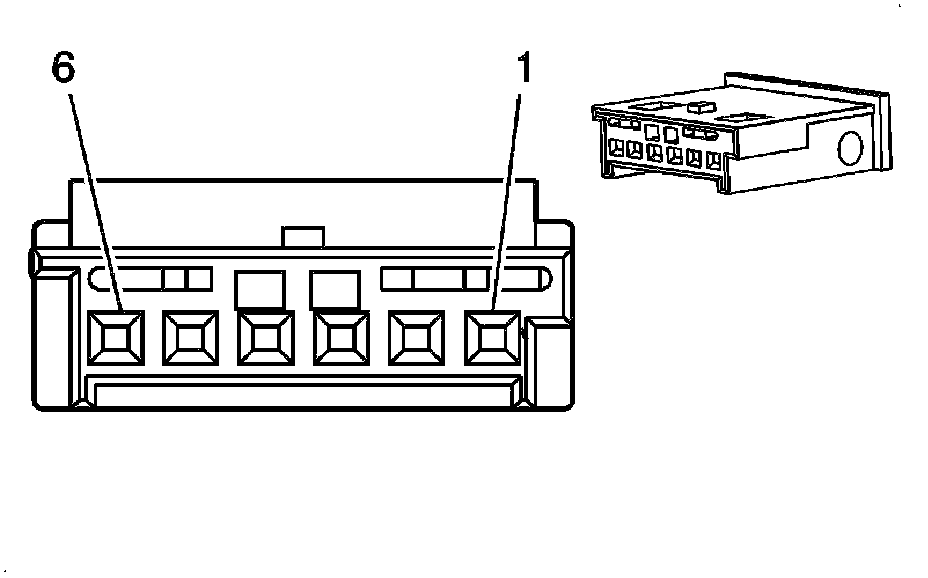

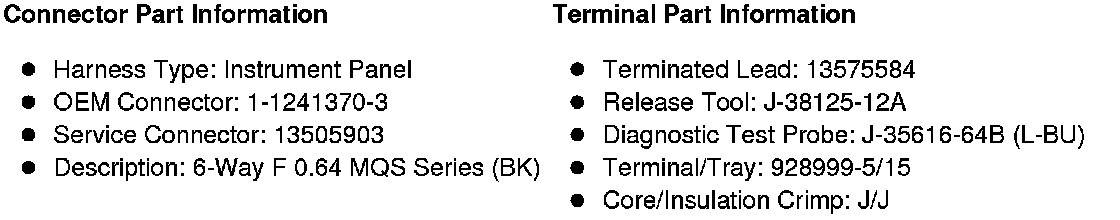

Component Connector End Views

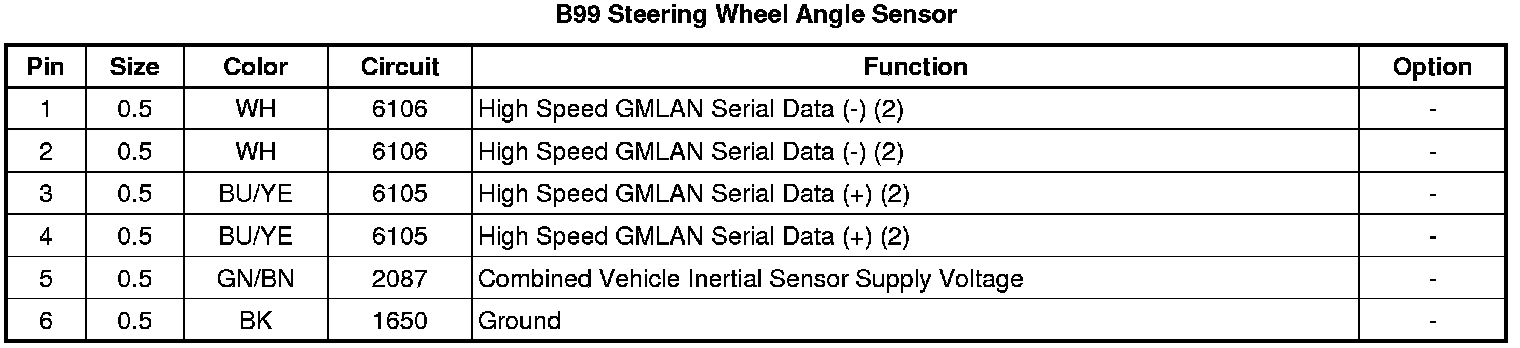

B99 Steering Wheel Angle Sensor
