Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Cabin Temperature Sensor / Switch >> Service and Repair >> HVAC - Automatic >> Inside Air Temperature Sensor Replacement - Right Side Lower

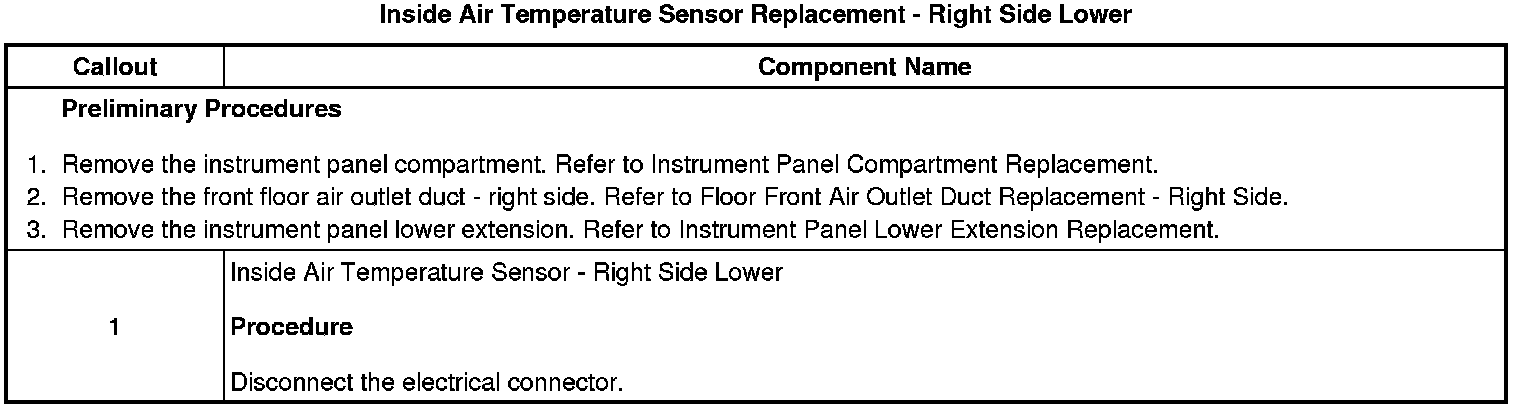

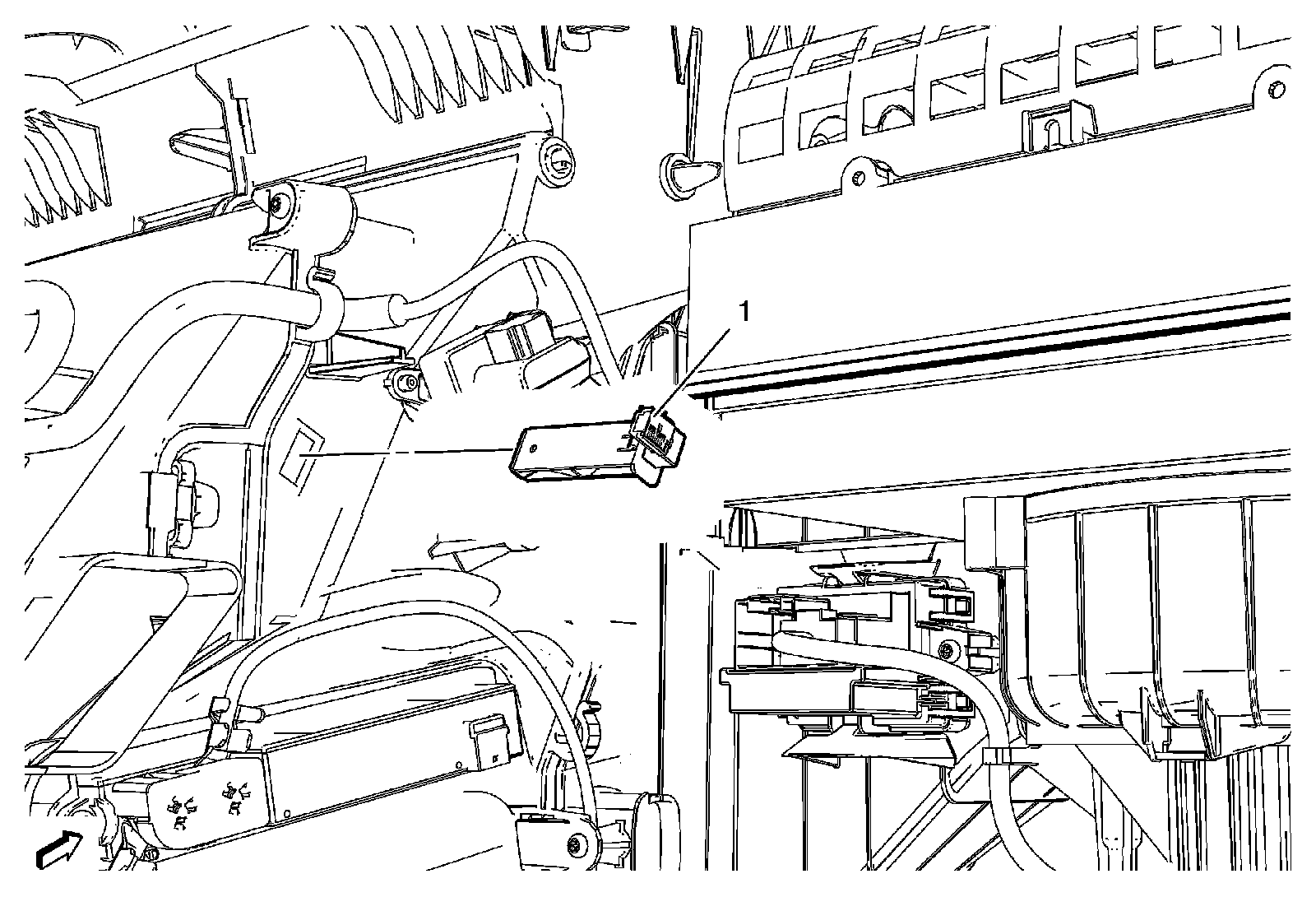

Inside Air Temperature Sensor Replacement - Right Side Lower




Inside Air Temperature Sensor Replacement - Right Side Lower
