Rear Wheel Speed Sensor Replacement

Rear Wheel Speed Sensor Replacement

Removal Procedure

1. Remove rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement Service and Repair.

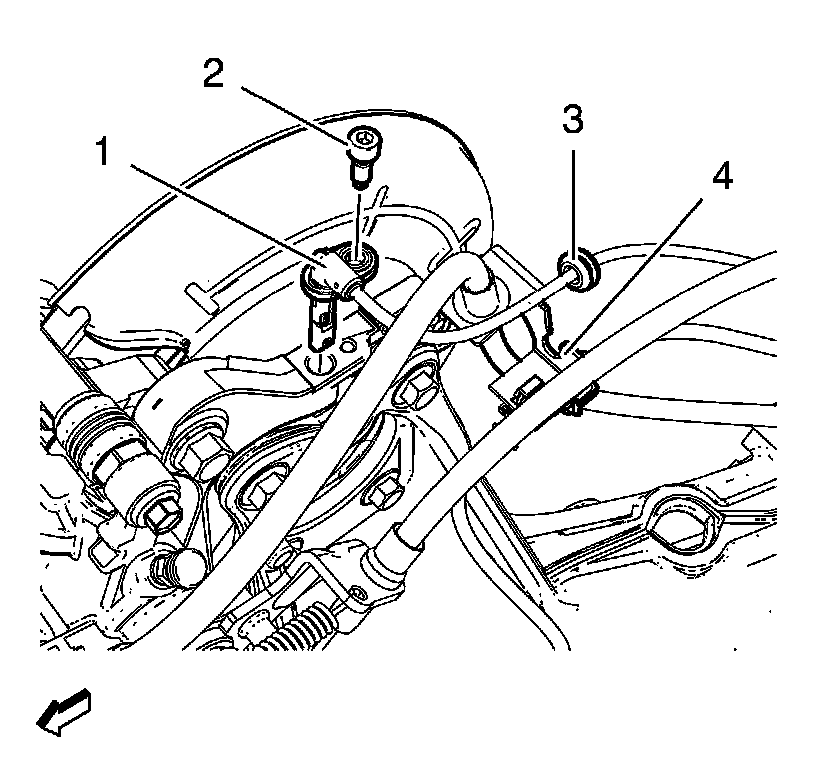

2. Remove the wheel speed sensor screw (2) from the steering knuckle.

3. Remove the wheel speed sensor (1).

4. Remove the wiring harness (3) from the bracket (4).

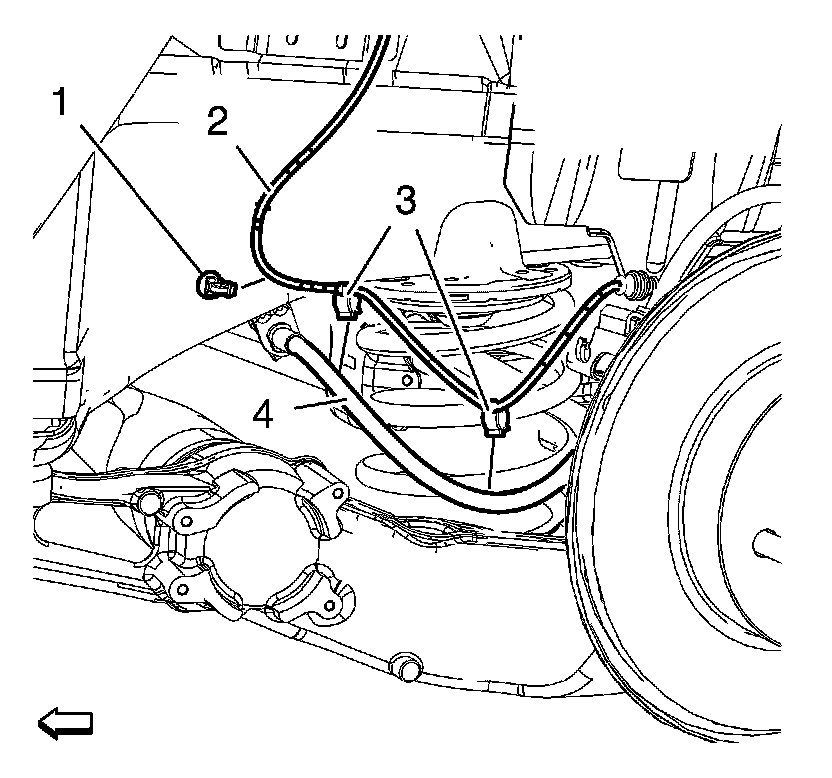

5. Remove the wiring harness (2) retainers (3) from the brake hose (4).

6. Remove the wiring harness (2) from the body retainer (1).

7. Replace the body retainer (1).

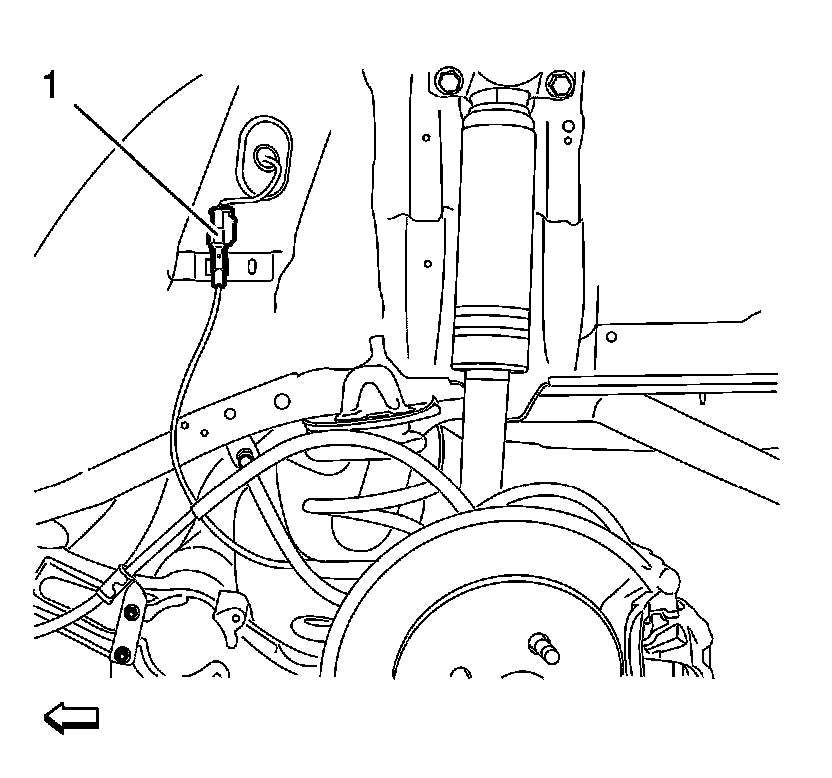

8. Disconnect the electrical connector (1).

9. Remove wheel speed sensor from the vehicle.

Installation Procedure





1. Install the wheel speed sensor to the vehicle.

2. Connect the electrical connector (1).





3. Install the wiring harness (2) retainers (3) to the TOP SIDE of brake hose (4), using the marking points of old wiring harness.

4. Install the wiring harness (2) to the NEW body retainer (1).





5. Install the wheel speed sensor (1) to the steering knuckle.

6. Install the wiring harness (3) at the bracket (4).

Caution:
Refer to Fastener Caution Fastener Caution.

7. Install the wheel speed sensor screw (2) and tighten to 6 Nm (53 lb in).

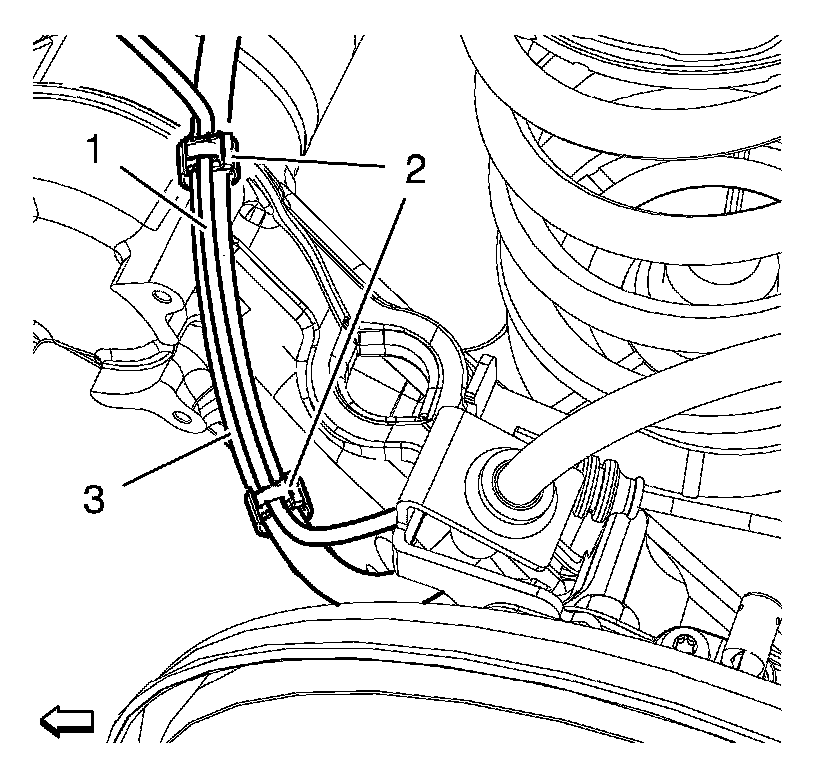

8. Check the correct installation position of the wiring harness (1). The wiring harness MUST be routed on top of the brake hose. If necessary adjust retainers (2) to the marking positions on the brake hose.

9. Apply tension to the wiring harness (1) between the retainers (2) for the correct routing.

10. Push down the brake hose by hand, to assure the correct installation position.

11. Install the rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement Service and Repair.
