Rear Object Sensor - Right Outer

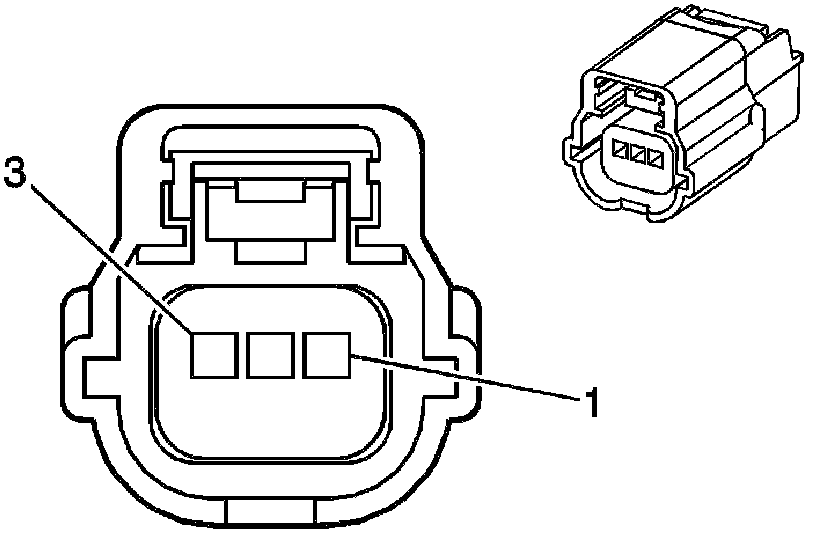

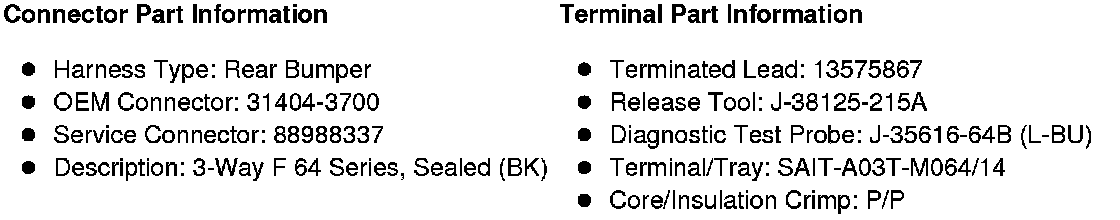

Component Connector End Views

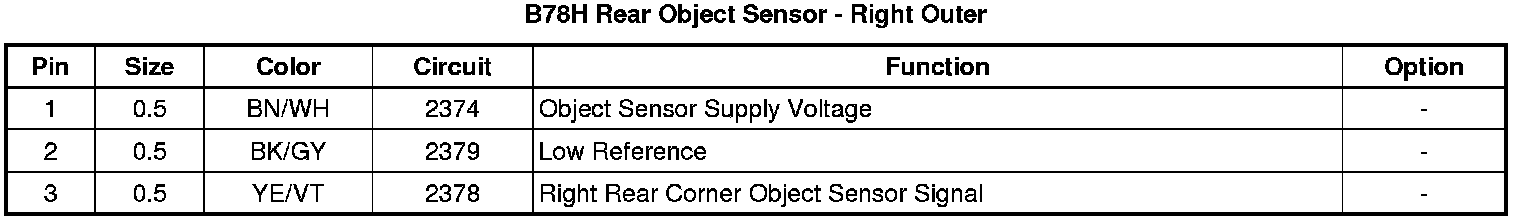

B78H Rear Object Sensor - Right Outer
