Air Cleaner Assembly Replacement

Air Cleaner Assembly Replacement

Removal Procedure

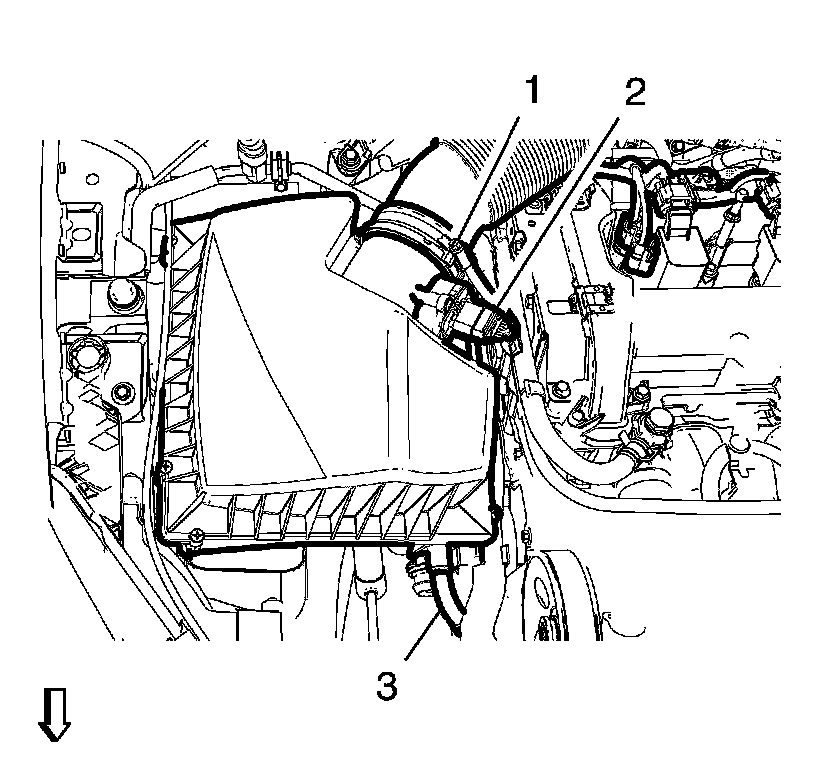

1. Disconnect the mass airflow sensor wiring harness plug (2).

2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Air Cleaner Outlet Duct Replacement.

3. Unclip the drain hose (3), if equipped.

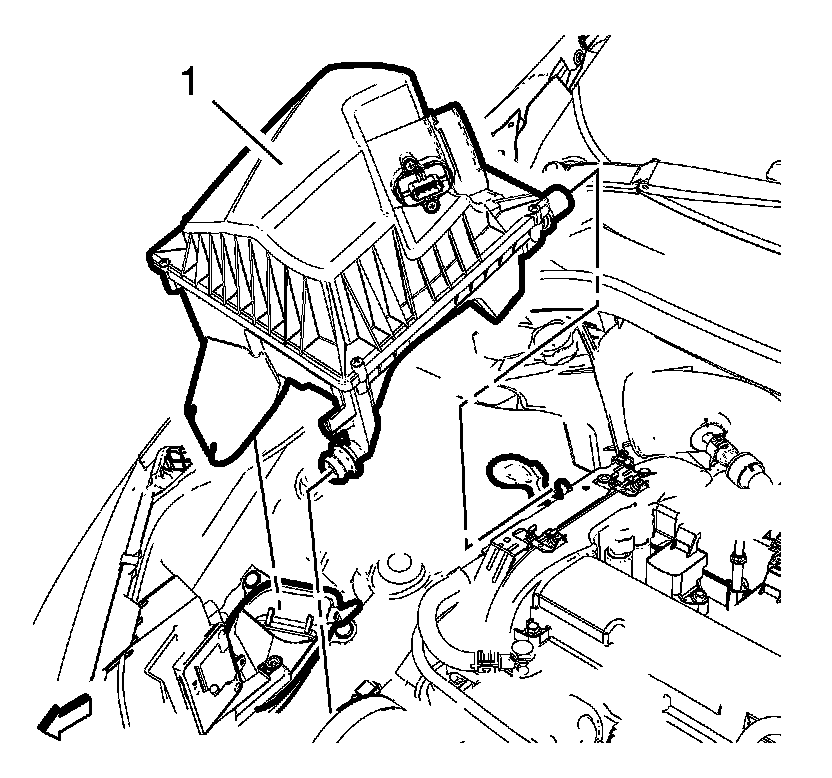

4. Remove the air cleaner assembly (1).

Installation Procedure




1. Install the air cleaner assembly (1).




2. Connect the mass airflow sensor wiring harness plug (2).

3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Air Cleaner Outlet Duct Replacement.

4. Clip in the drain hose (3), if equipped.
