Camshaft Position Sensor - Intake
Camshaft Position Sensor - Intake

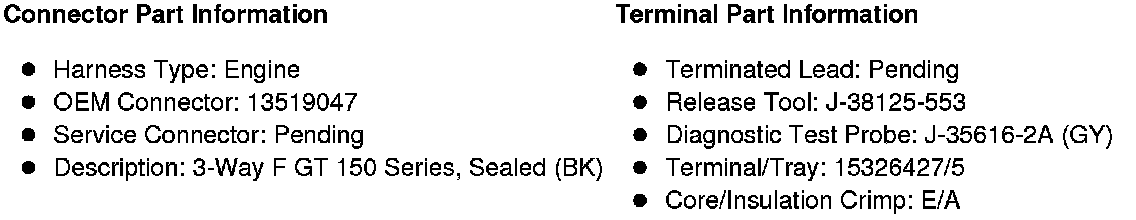

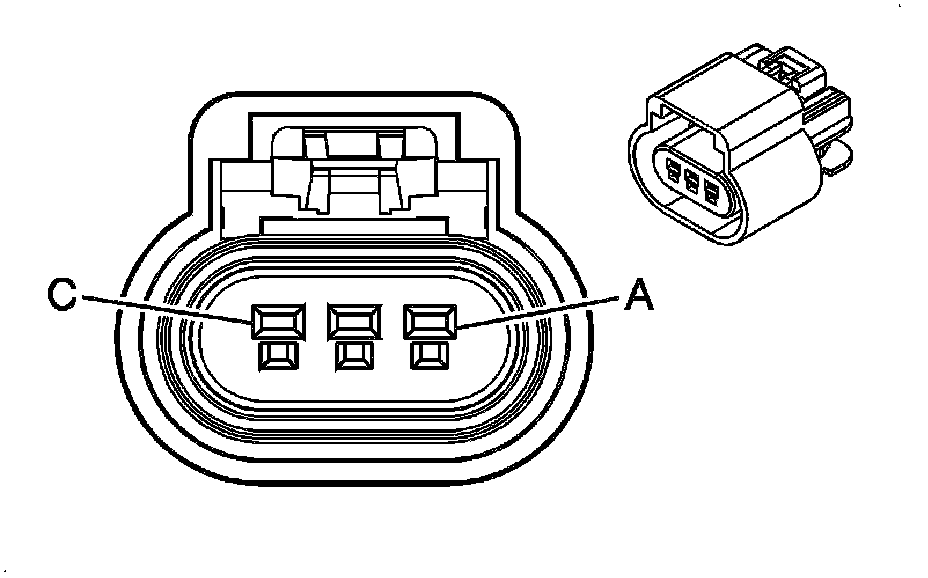

Component Connector End Views

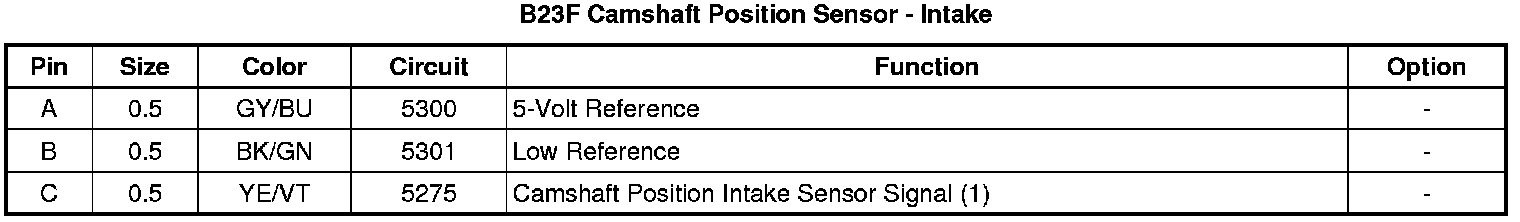

B23F
Camshaft Position Sensor
- Intake
