Camshaft Position Sensor - Exhaust

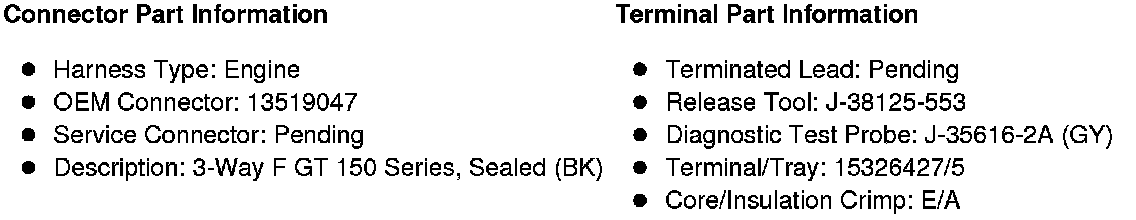

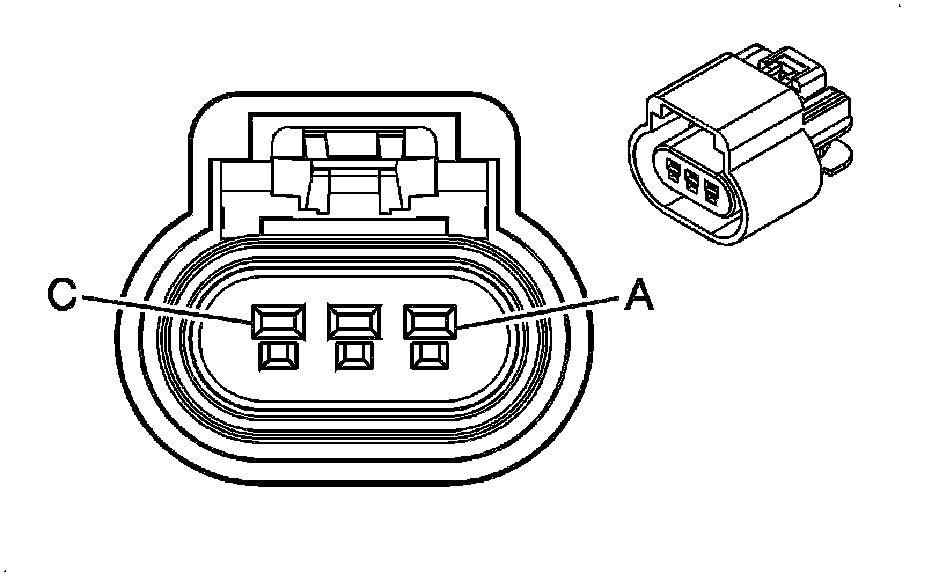

Component Connector End Views

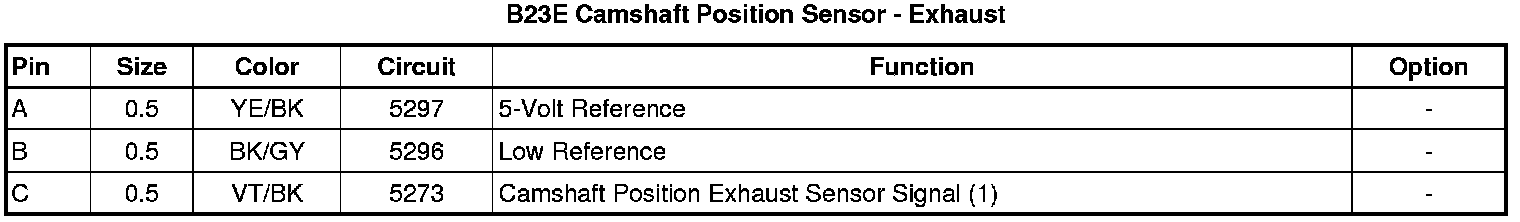

B23E Camshaft Position Sensor - Exhaust
