Air Temperature Sensor ( Ambient / Intake ): Diagrams

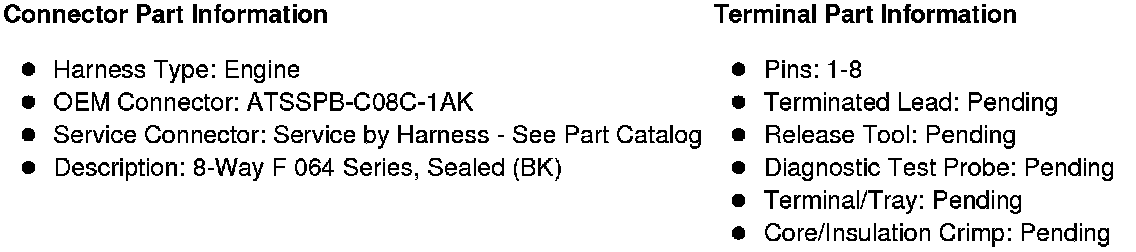

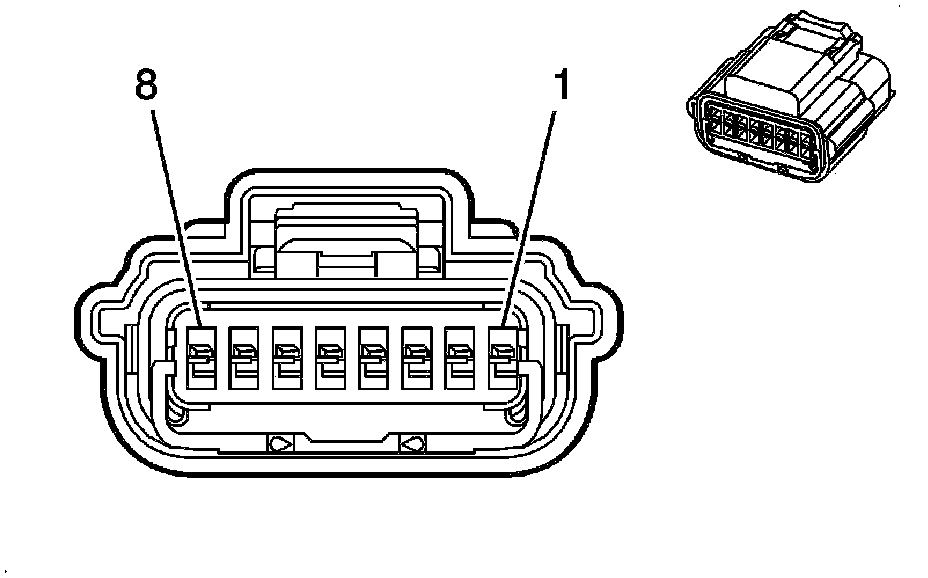

Component Connector End Views

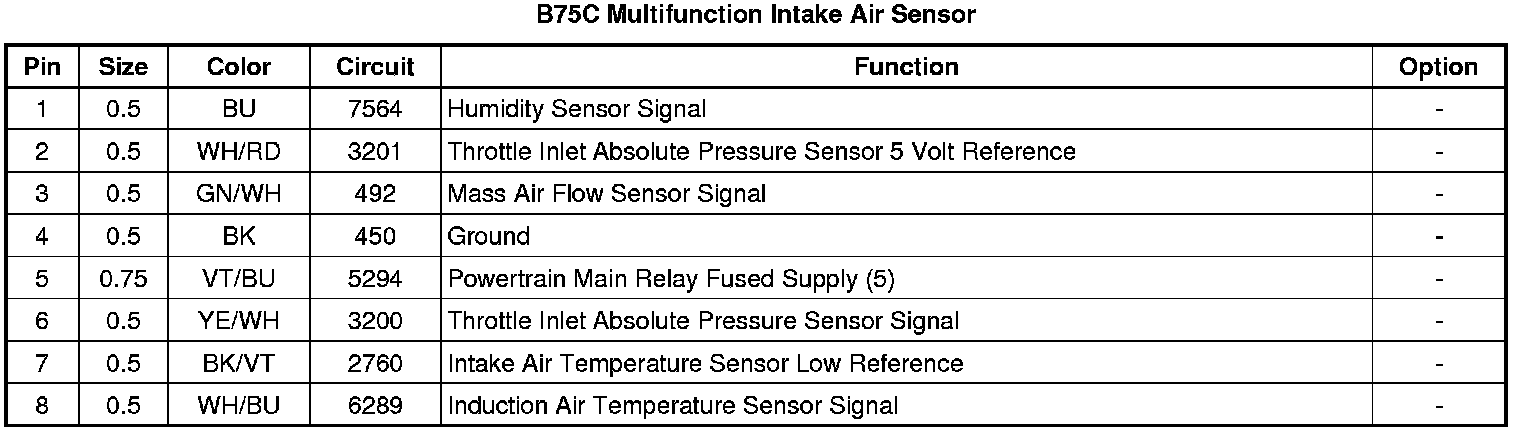

B75C Multifunction Intake Air Sensor
