Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Camshaft Cover to Turbocharger)

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Camshaft Cover to Turbocharger)

Removal Procedure

1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement Engine Sight Shield Replacement.

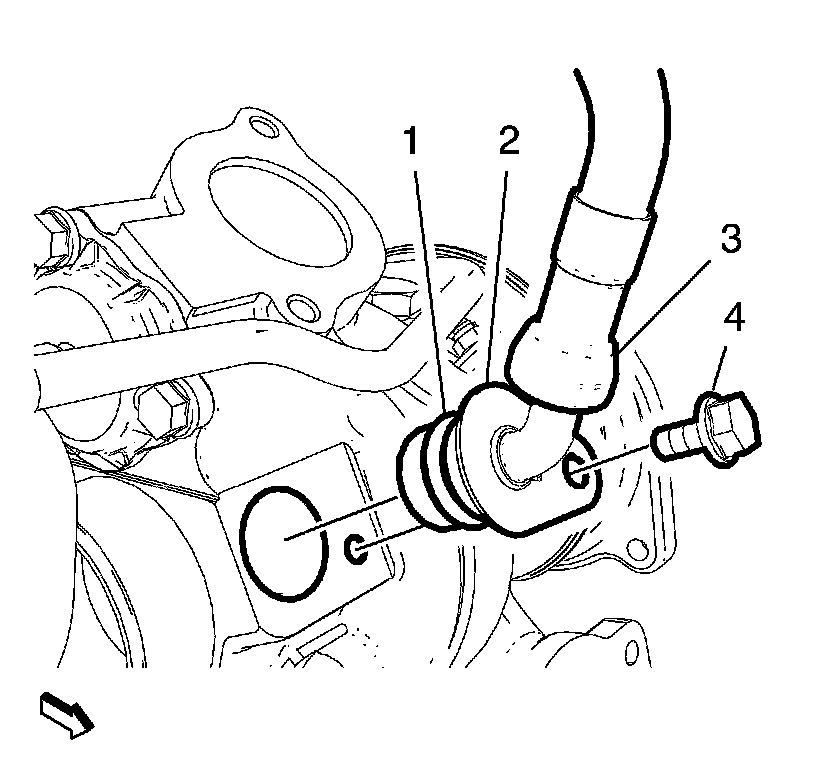

2. Remove the positive crankcase ventilation (PCV) hose bolt (4) from the turbocharger.

3. Remove the positive crankcase ventilation stud (2).

4. Remove and DISCARD the positive crankcase ventilation hose seal ring (1).

5. Remove the PCV hose (3) from the PCV hose stud (2). Refer to Metal Collar Quick Connect Fitting Service Metal Collar Quick Connect Fitting Service.





Note: Detach the PCV hose carefully from the camshaft cover. After the removal the PCV hose must not be reused anymore.

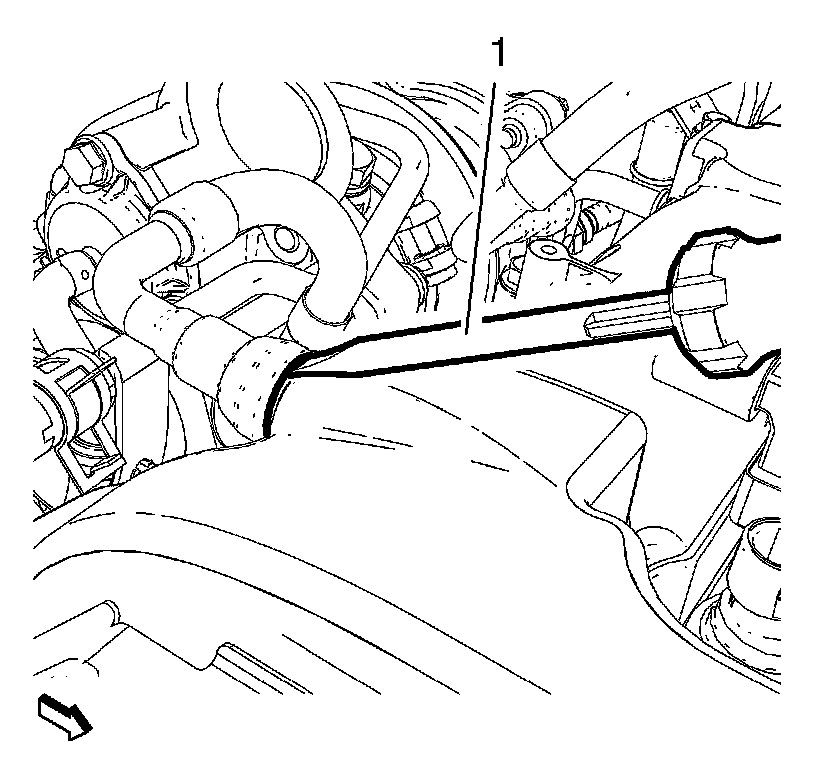

6. Remove the PCV from the camshaft cover with a suitable screwdriver (1).

Installation Procedure




1. Install a NEW positive crankcase ventilation hose seal ring (1).

2. Install the positive crankcase ventilation hose (2).

Caution: Refer to Fastener Caution Fastener Caution.

3. Install the positive crankcase ventilation hose bolt (3) and tighten to 10 Nm (89 lb in).

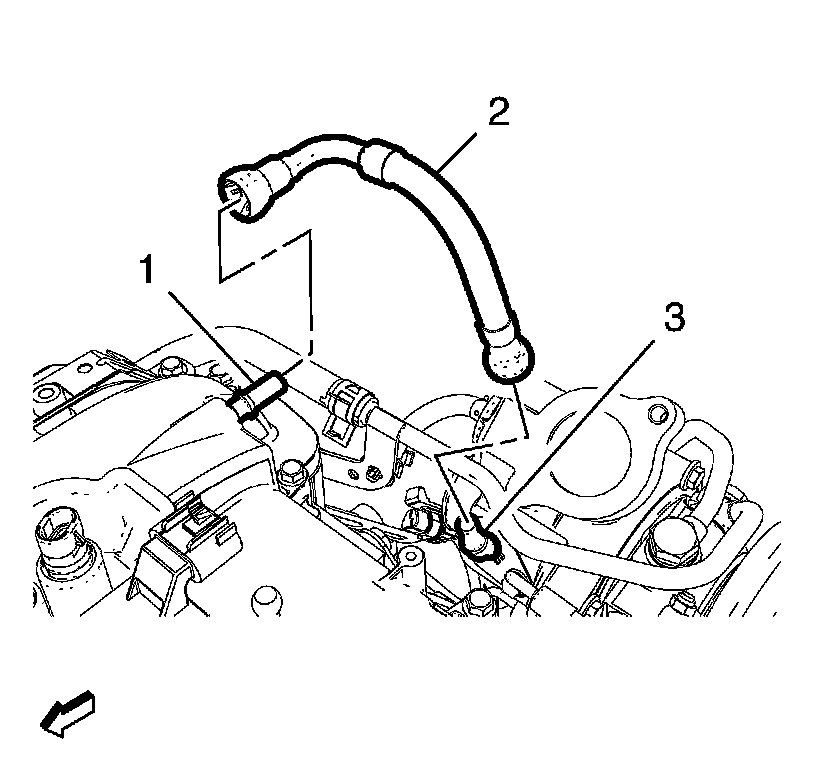

4. Install the positive crankcase ventilation hose (2) to the positive crankcase ventilation stud (3) and the camshaft cover stud (1). Refer to Metal Collar Quick Connect Fitting Service Metal Collar Quick Connect Fitting Service.
