Scan Tool Does Not Communicate with Low Speed GMLAN Device
Scan Tool Does Not Communicate with Low Speed GMLAN Device
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

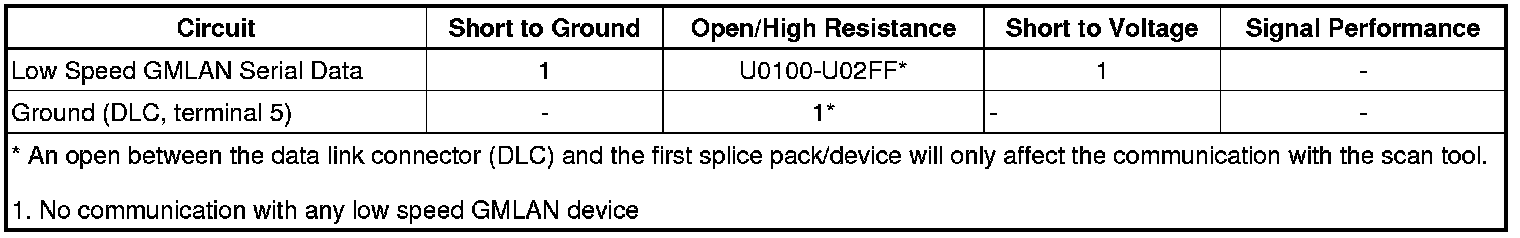

Diagnostic Fault Information
Circuit/System Description
The serial data is transmitted over a single wire to the appropriate devices. The transmission speed for GMLAN low speed is up to 83.33 Kb/s. Under normal vehicle operating conditions, the speed of the bus is 33.33 Kb/s. The devices toggle the serial data circuit between 0-5 V during normal communications. To wake the devices connected to the low speed GMLAN serial data circuit, a voltage wake up pulse of 10 V is sent out. If serial data is lost, devices will set a no communication code against the non-communicating device. A loss of serial data communications DTC does not represent a failure of the device that set it.
Diagnostic Aids
* Sometimes, while diagnosing a specific customer concern or after a repair, you may notice a history U-code present. However, there is no associated "current" or "active" status. Loss-of- communication U-codes such as these can set for a variety of reasons. Many times, they are transparent to the vehicle operator and technician, and/or have no associated symptoms. Eventually, they will erase themselves automatically after a number of fault-free ignition cycles. This condition would most likely be attributed to one of these scenarios:
- A device on the data communication circuit was disconnected while the communication circuit is awake.
- Power to one or more devices was interrupted during diagnosis
- A low battery condition was present, so some devices stop communicating when battery voltage drops below a certain threshold.
- Battery power was restored to the vehicle and devices on the communication circuit did not all re-initialize at the same time.
- If a loss-of-communication U-code appears in history for no apparent reason, it is most likely associated with one of the scenarios above. These are all temporary conditions and should never be interpreted as an intermittent fault, causing you to replace a part.
* Do not replace a device reporting a U-code. The U-code identifies which device needs to be diagnosed for a communication issue.
* Communication may be available between the device and the scan tool with the low speed GMLAN serial data system inoperative. This condition is due to the device using both the high and low speed GMLAN systems.
* An open in the low speed GMLAN serial data circuit between the splice pack and a device will only affect that specific device. This type of failure will set a loss of communication DTC for each device affected, and the other devices will still communicate.
* An open in the data link connector (DLC) ground circuit terminal 5 will allow the scan tool to operate but not communicate with the vehicle.
* The engine may not start when there is a total malfunction of the low speed GMLAN serial data circuit.
* Technicians may find various Local Area Network (LAN) communication Diagnostic Trouble Codes (DTC) and no low speed LAN communications with the scan tool.
* These conditions may be caused by the installation of an aftermarket navigation radio device (see bulletins). Some customers may comment of one or more of the following concerns:
- Vehicle will not crank
- Vehicle cranks but will not start
- Vehicle stability enhancement system warning lights and messages
- PRNDL gear indicator position errors
Reference Information
Schematic Reference
* Data Communication Schematics [1][2]Electrical Diagrams
* Control Module References Control Module References
Connector End View Reference
Component Connector End Views Outside Rearview Mirror - Driver
Description and Operation
Data Link Communications Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
Note: Use the schematic to identify the following:
* Devices the vehicle is equipped with
* Device and splice pack locations on the low speed GMLAN serial data circuit
* The low speed GMLAN serial data circuit terminals for each device or splice pack
1. Attempt to communicate with all devices on the low speed GMLAN serial data circuit. Refer to Data Link References Initial Inspection and Diagnostic Overview.
2. Verify which devices are communicating on the low speed GMLAN serial data circuit.
• If only one device is not communicating
Diagnose that device only. Refer to DTC U0100-U02FF U0100.
• If one or more devices are communicating but not all
Refer to Circuit/System Testing - Testing the Serial Data Circuit for an Open/High Resistance.
• If none of the devices are communicating
3. Ignition OFF, all access doors closed, all vehicle systems OFF, all keys at least 3 meters away from vehicle. Disconnect the scan tool from the X84 data link connector. The following tests will be done at the X84 data link connector. It may take up to 2 minutes for all vehicle systems to power down.
4. Test for less than 10 ohms between the ground circuit terminal 5 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
5. Ignition ON.
6. Test for less than 4.5 V between the serial data circuit terminal 1 and ground.
• If 4.5 V or greater
Refer to Circuit/System Testing - Testing the Serial Data Circuits for a Short to Voltage.
• If less than 4.5 V
7. Ignition OFF, all access doors closed, all vehicle systems OFF, all keys at least 3 meters away from vehicle. It may take up to 2 minutes for all vehicle systems to power down.
8. Test for greater than 100 ohms between the serial data circuit terminal 1 and ground.
• If 100 ohms or less
Refer to Circuit/System Testing - Testing the Serial Data Circuits for a Short to Ground.
• If greater than 100 ohms
9. Disconnect the appropriate harness connector at the first splice pack closest in the circuit to the X84 data link connector.
10. Test for less than 2 ohms between the X84 data link connector's serial data circuit terminal 1 and the splice pack harness connector's serial data input terminal.
• If 2 ohms or greater
Repair the open/high resistance in the serial data circuit.
• If less than 2 ohms
11. Replace the splice pack.
Circuit/System Testing
Testing the Serial Data Circuits for a Short to Voltage
1. Ignition OFF, disconnect the appropriate harness connectors at all low speed GMLAN serial data splice packs, ignition ON.
2. Test for less than 4.5 V between the serial data circuit terminal 1 at the X84 data link connector and ground.
• If 4.5 V or greater
Repair the short to voltage on the serial data circuit.
• If less than 4.5 V
3. Test for less than 4.5 V between each low speed GMLAN serial data circuit at a splice pack and ground.
• If any serial data circuit is greater than 4.5 V
1. Ignition OFF, disconnect all devices on the failed serial data circuit, ignition ON.
2. Test for less than 1 V between each section of the failed serial data circuit and ground.
• If 1 V or greater, repair the short to voltage in the circuit.
• If less than 1 V
3. Connect the splice pack and connect the first device on the failed serial data circuit, ignition ON.
4. Verify the scan tool communicates or not with the low speed GMLAN serial data circuit.
• If the scan tool does not communicate, replace the device that was just connected.
• If the scan tool communicates and there are more devices to connect, connect the next device and repeat step 3.4.
• If the scan tool communicates and there are no more devices to connect
5. All OK.
• If all serial data circuits are less than 4.5 V
4. All OK.
Testing the Serial Data Circuits for a Short to Ground
1. Ignition OFF, all access doors closed, all vehicle systems OFF, and all keys at least 3 meters away from vehicle. Disconnect the appropriate harness connectors at all low speed GMLAN serial data splice packs.
2. Test for infinite resistance between the serial data circuit terminal 1 at the X84 data link connector and ground.
• If less than infinite resistance
Repair the short to ground on the serial data circuit.
• If infinite resistance
3. Test for greater than 100 ohms between each low speed GMLAN serial data circuit at a splice pack and ground.
• If any serial data circuit is 100 ohms or less
1. Disconnect all devices on the failed serial data circuit.
2. Test for greater than 2 ohms between each section of the failed serial data circuit and ground.
• If 2 ohms or less, repair the short to ground in the circuit.
• If greater than 2 ohms
3. Connect the splice pack and connect the first device on the failed serial data circuit, ignition ON.
4. Verify the scan tool communicates or not with the low speed GMLAN serial data circuit.
• If the scan tool does not communicate, replace the device that was just connected.
• If the scan tool communicates and there are more devices to connect, connect the next device and repeat step 3.4.
• If the scan tool communicates and there are no more devices to connect
5. All OK.
• If all serial data circuits are greater than 100 ohms
4. All OK.
Testing the Serial Data Circuit for an Open/High Resistance
1. Ignition OFF and all vehicle systems OFF, disconnect the splice pack containing the devices that are not communicating on the low speed GMLAN serial data circuit.
2. Test for less than 2 ohms between the X84 data link connector terminal 1 and the disconnected splice pack.
• If 2 ohms or greater
Repair the open/high resistance in the serial data circuit.
• If less than 2 ohms
3. Disconnect all devices on the failed serial data circuit.
4. Test for less than 2 ohms between each section of the failed serial data circuit end to end.
• If 2 ohms or greater
Repair the open/high resistance in the serial data circuit.
• If less than 2 ohms
5. Connect the splice pack and connect the first device on the failed serial data circuit.
6. Verify if the device communicates or not with the scan tool.
• If the device does not communicates
Replace the device.
• If the device communicates and there are more devices to connect
Connect the next device on the failed serial data circuit and repeat step 6.
• If all devices are connected and communicating
7. All OK.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* GMLAN Wiring Repairs GMLAN Wiring Repairs
* Control Module References Control Module References for device replacement, programming and setup
