X605

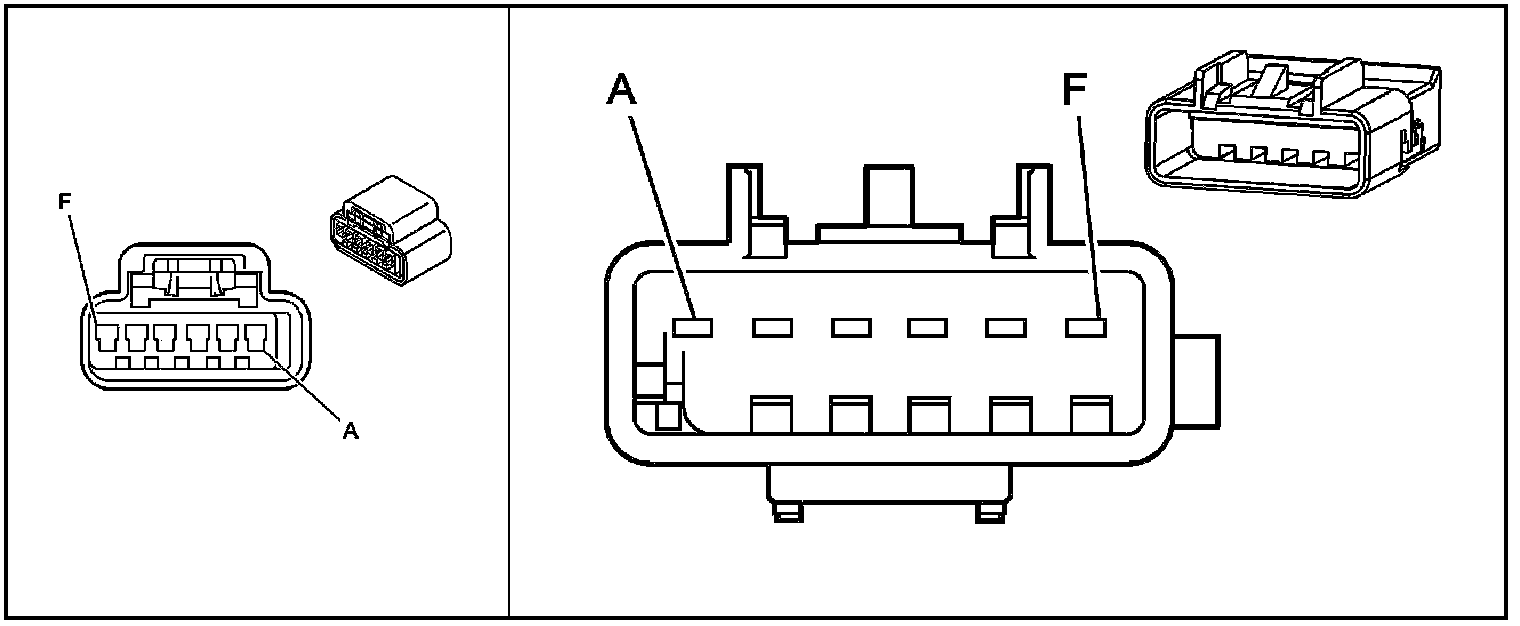

Inline Harness Connector End Views

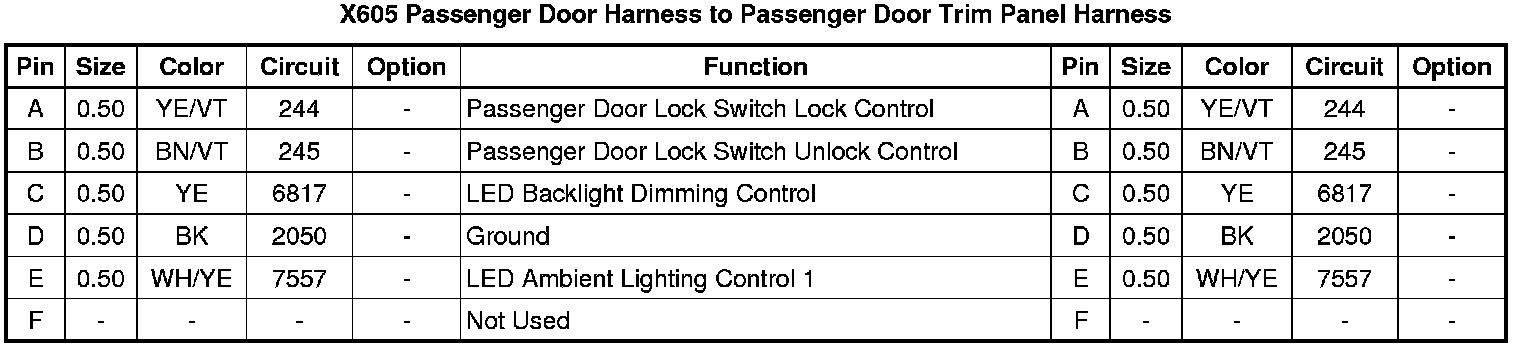

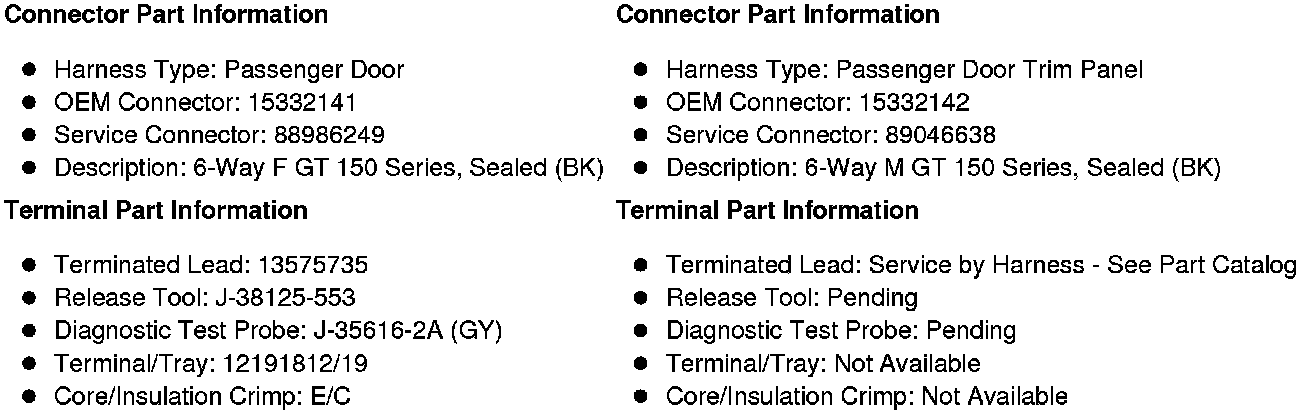

X605 Passenger Door Harness to Passenger Door Trim Panel Harness
