Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X500 - X599 >> X505

X505

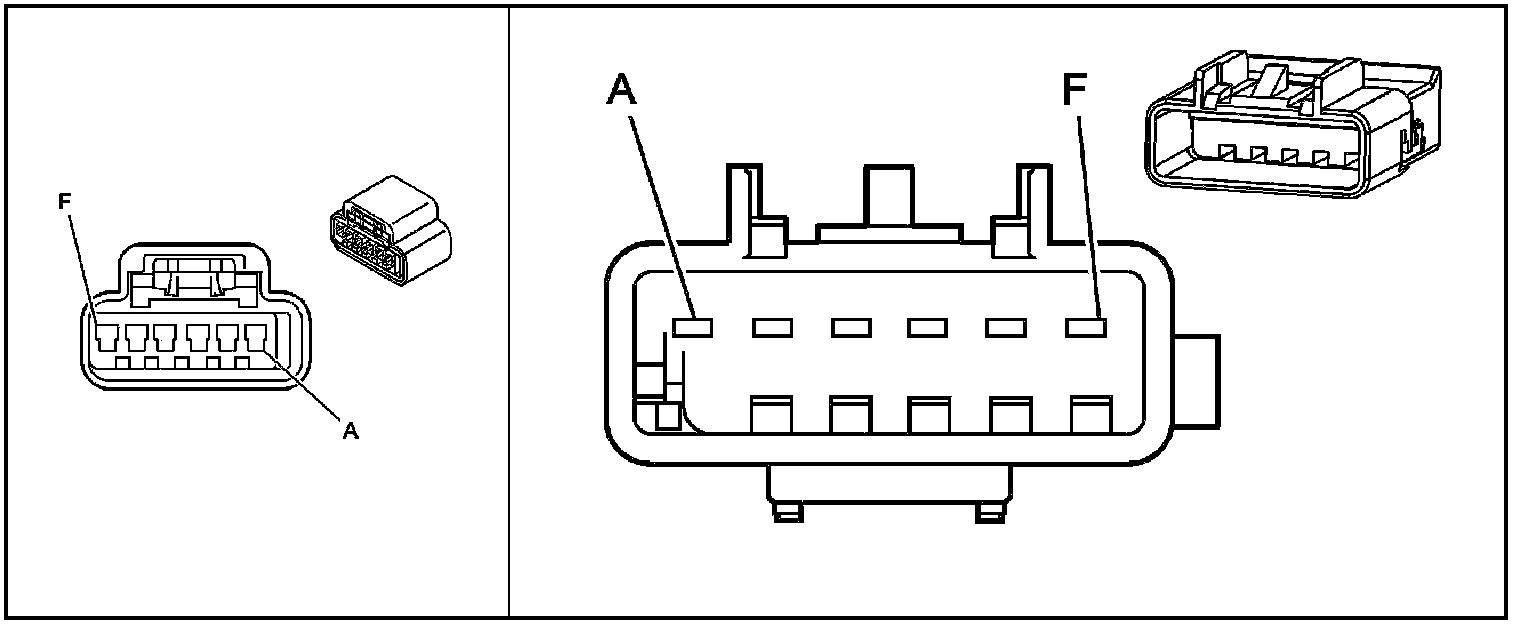

Inline Harness Connector End Views

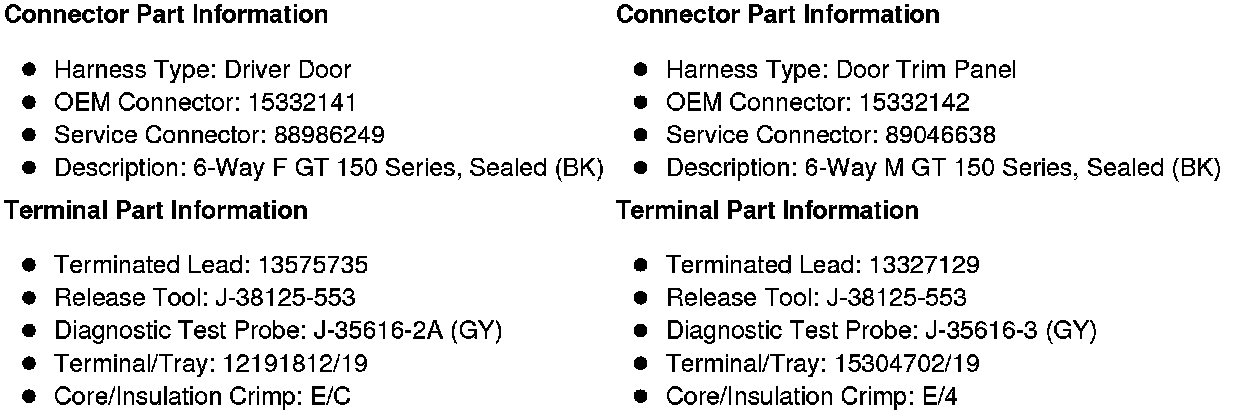

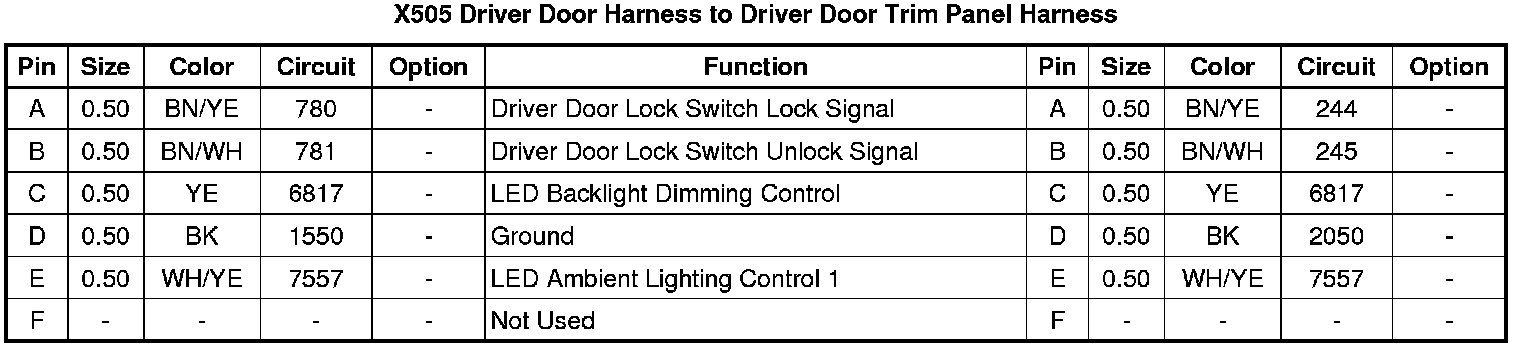

X505 Driver Door Harness to Driver Door Trim Panel Harness
