X310




Inline Harness Connector End Views

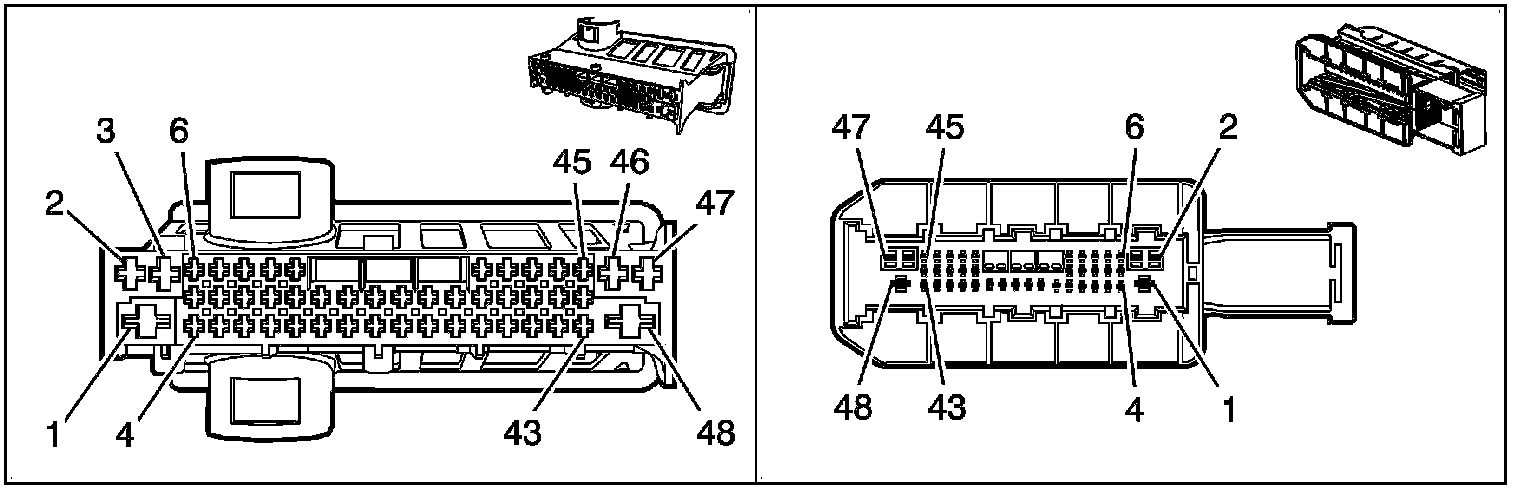

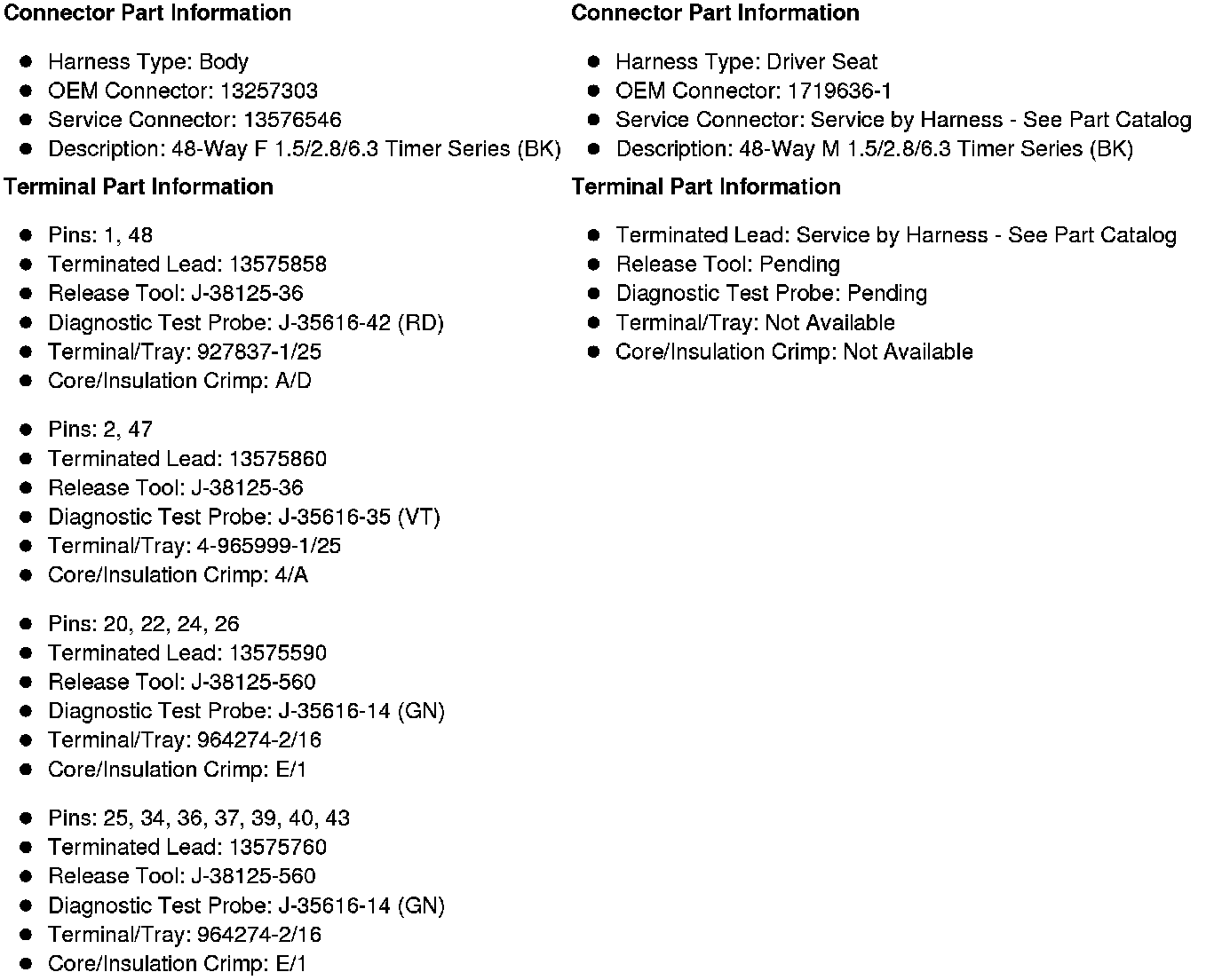

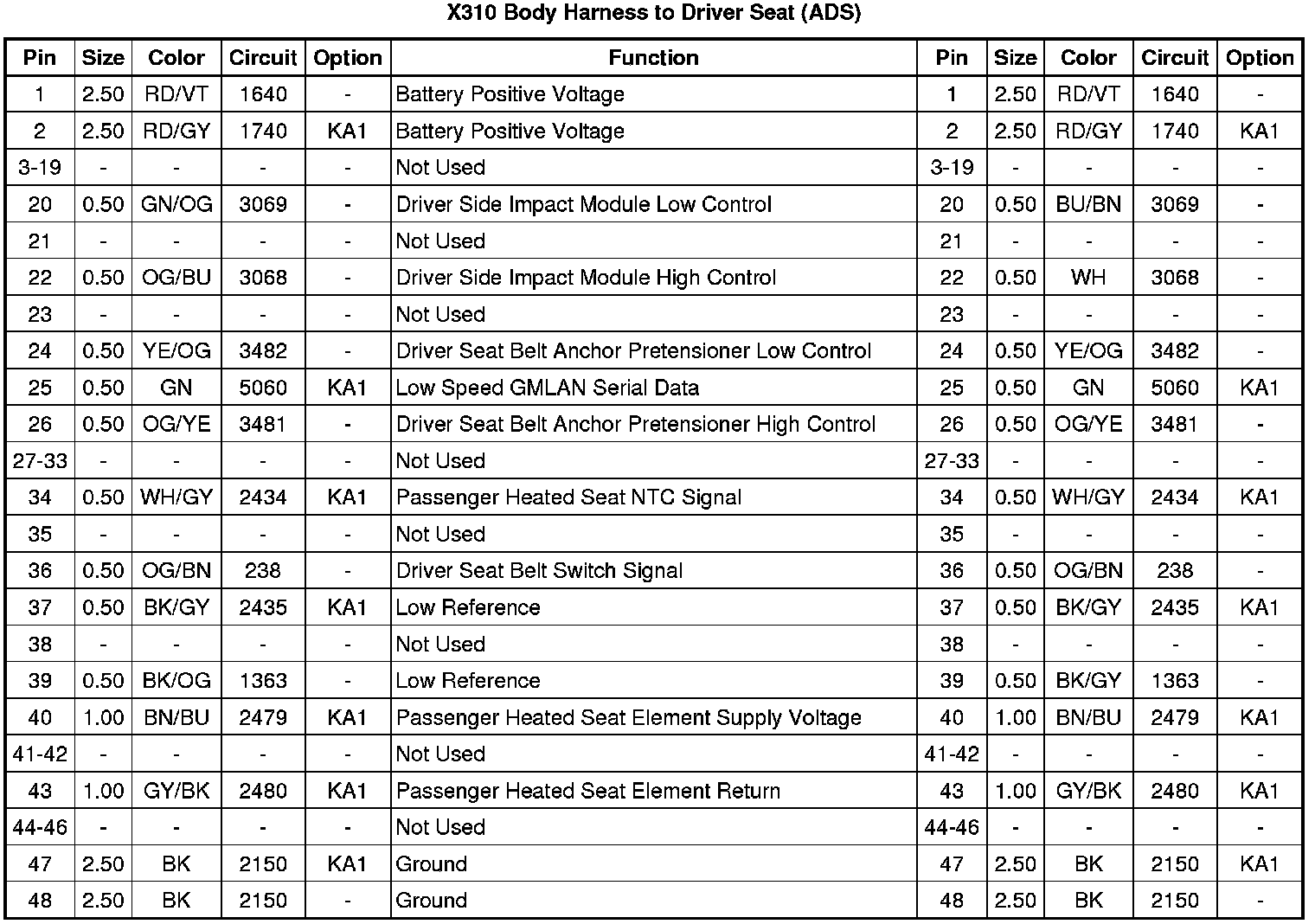

X310 Body Harness to Driver Seat (ADS)
















Inline Harness Connector End Views

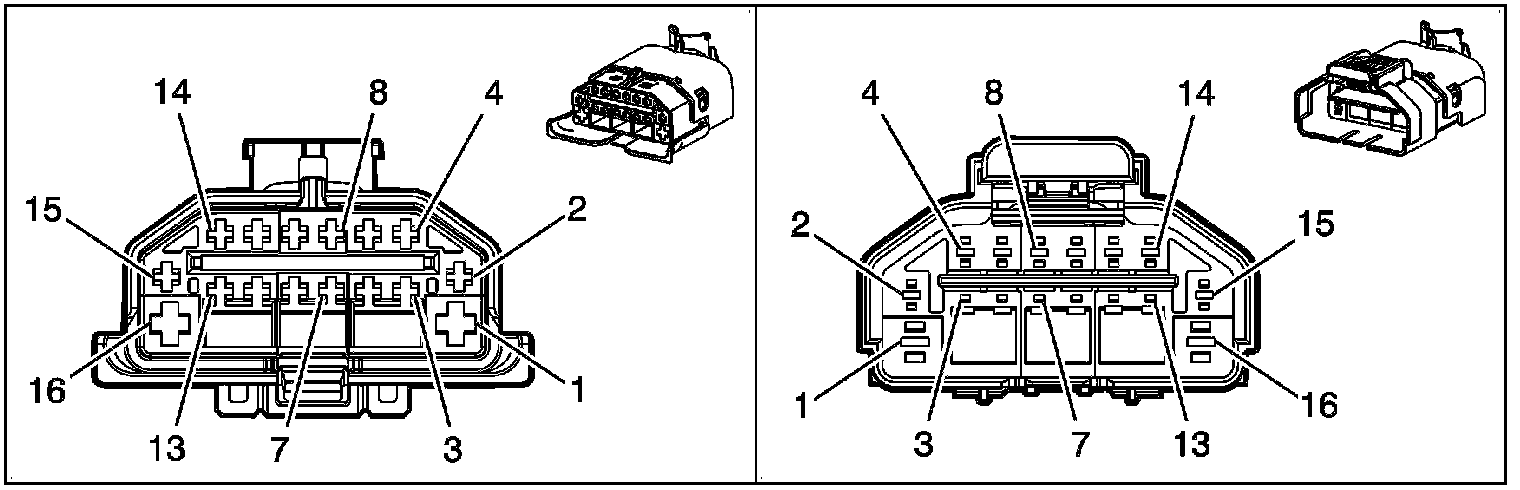

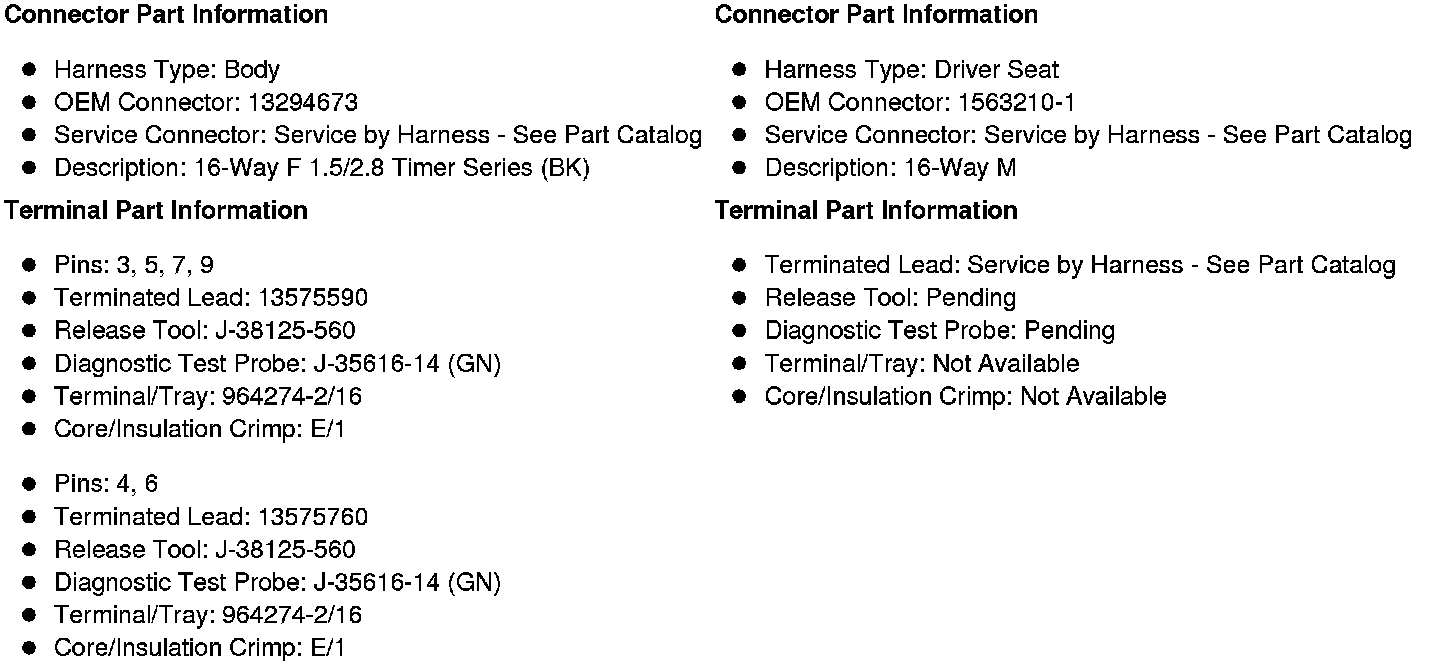

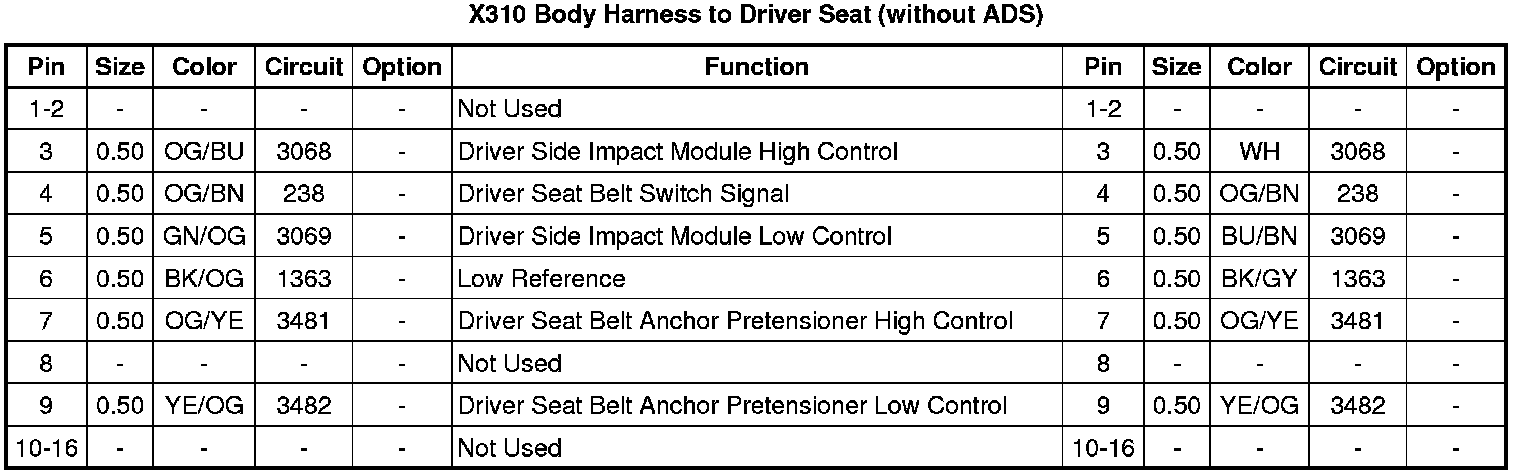

X310 Body Harness to Driver Seat (without ADS)
