Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X200 - X299 >> X200

X200

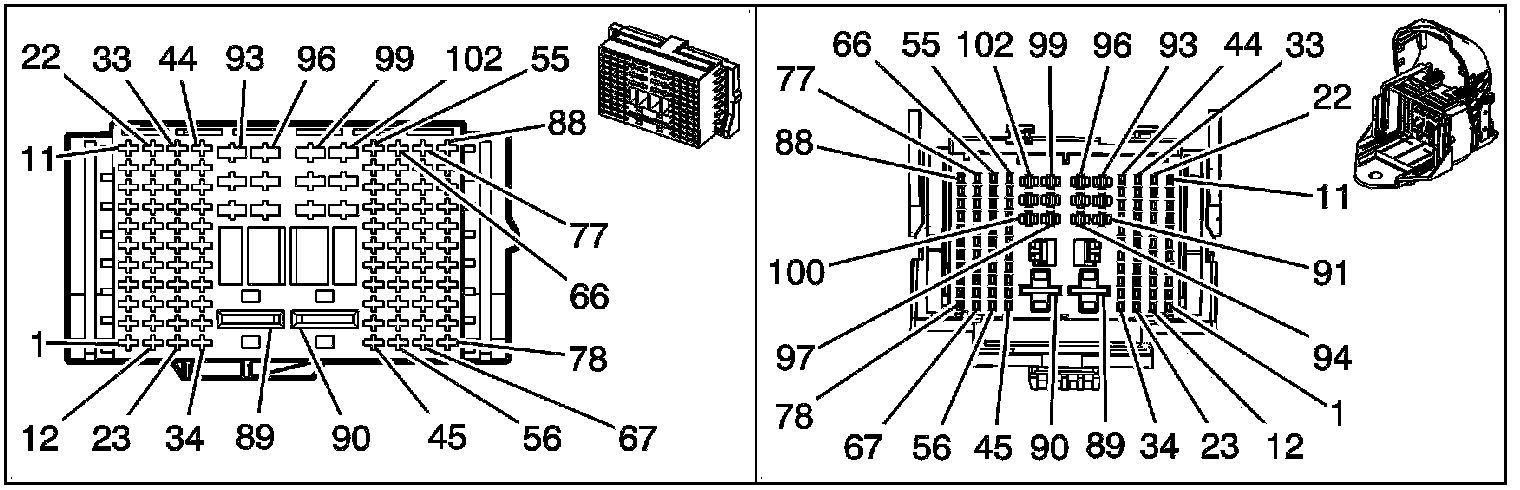

Inline Harness Connector End Views

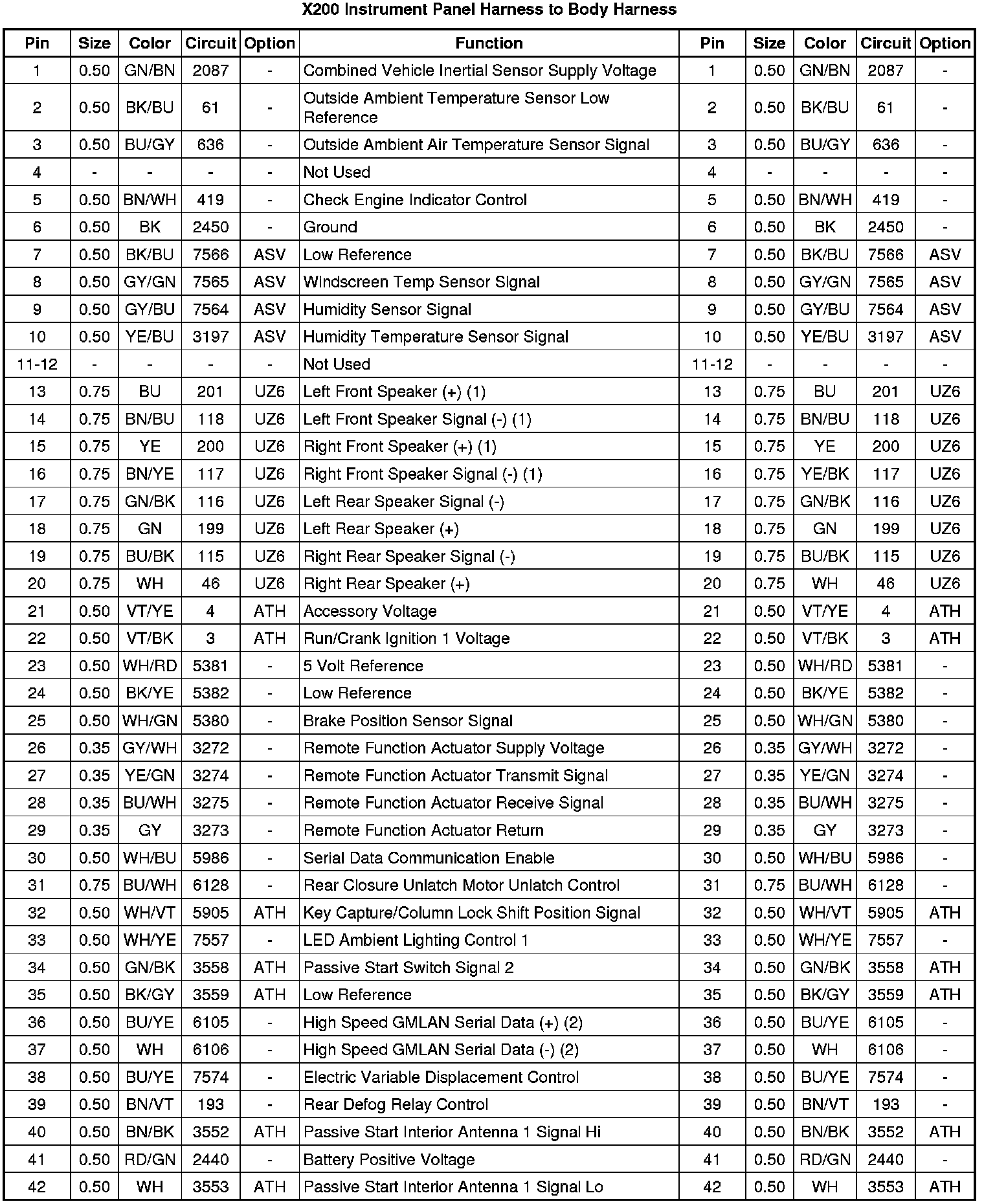

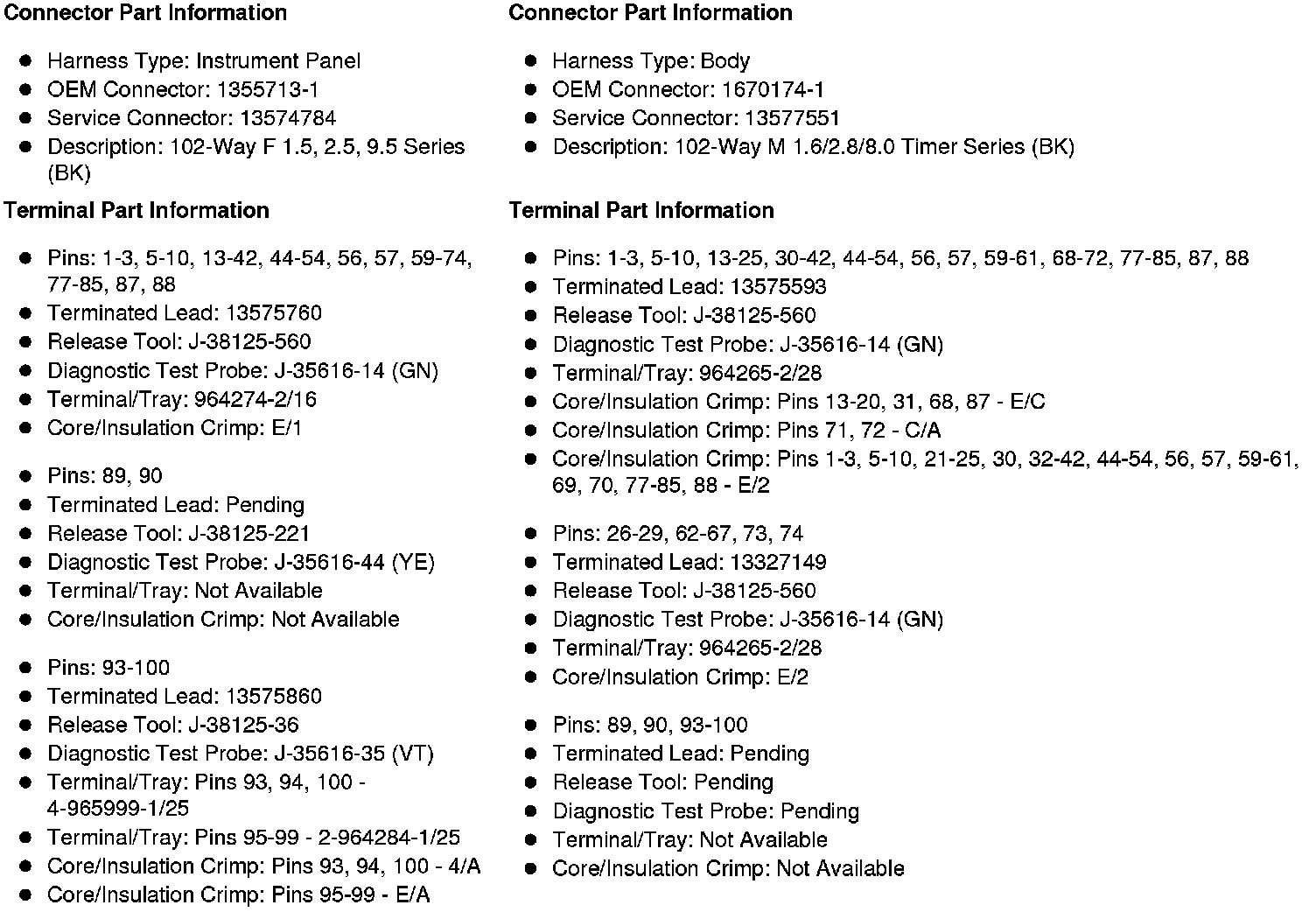

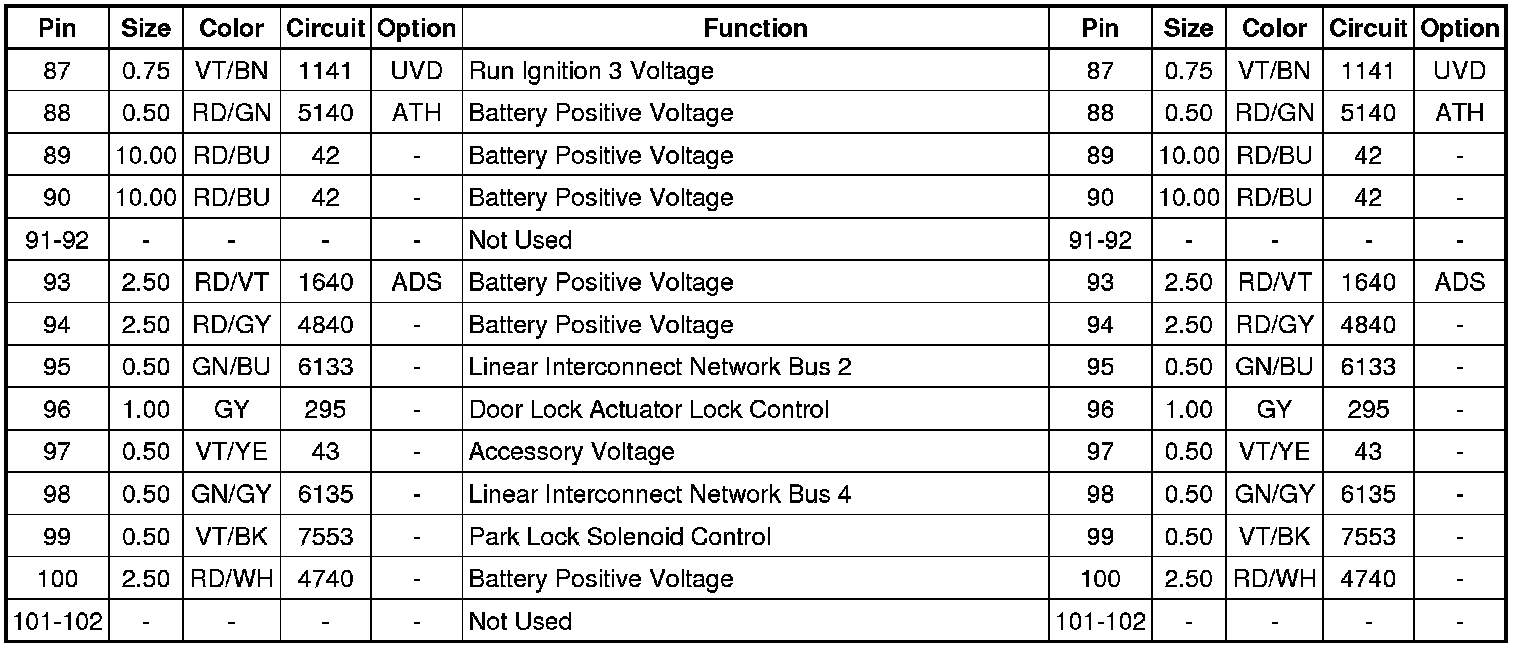

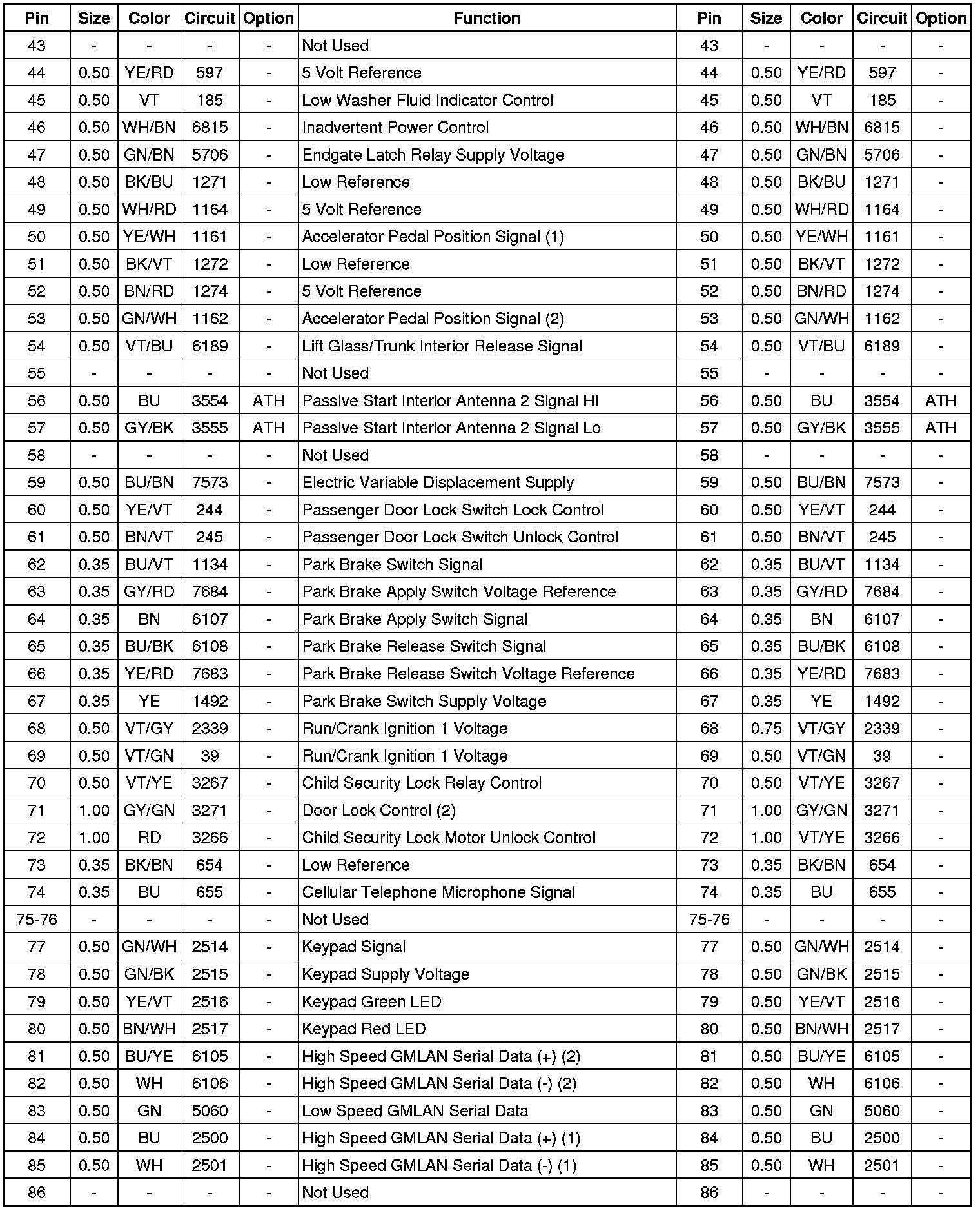

X200 Instrument Panel Harness to Body Harness
