Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X190

X190

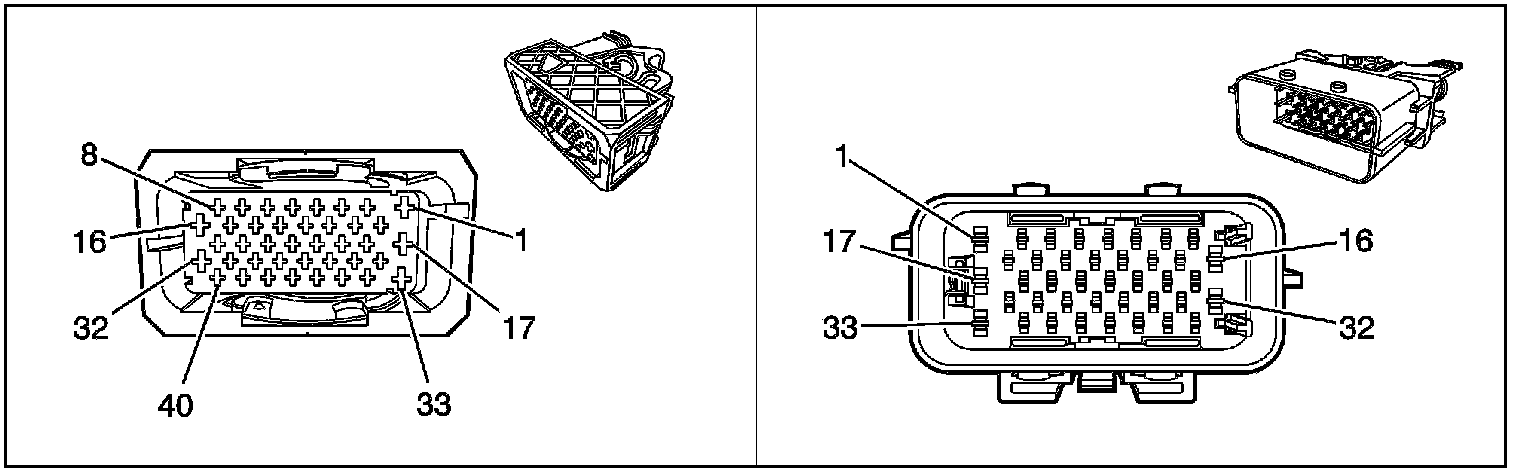

Inline Harness Connector End Views

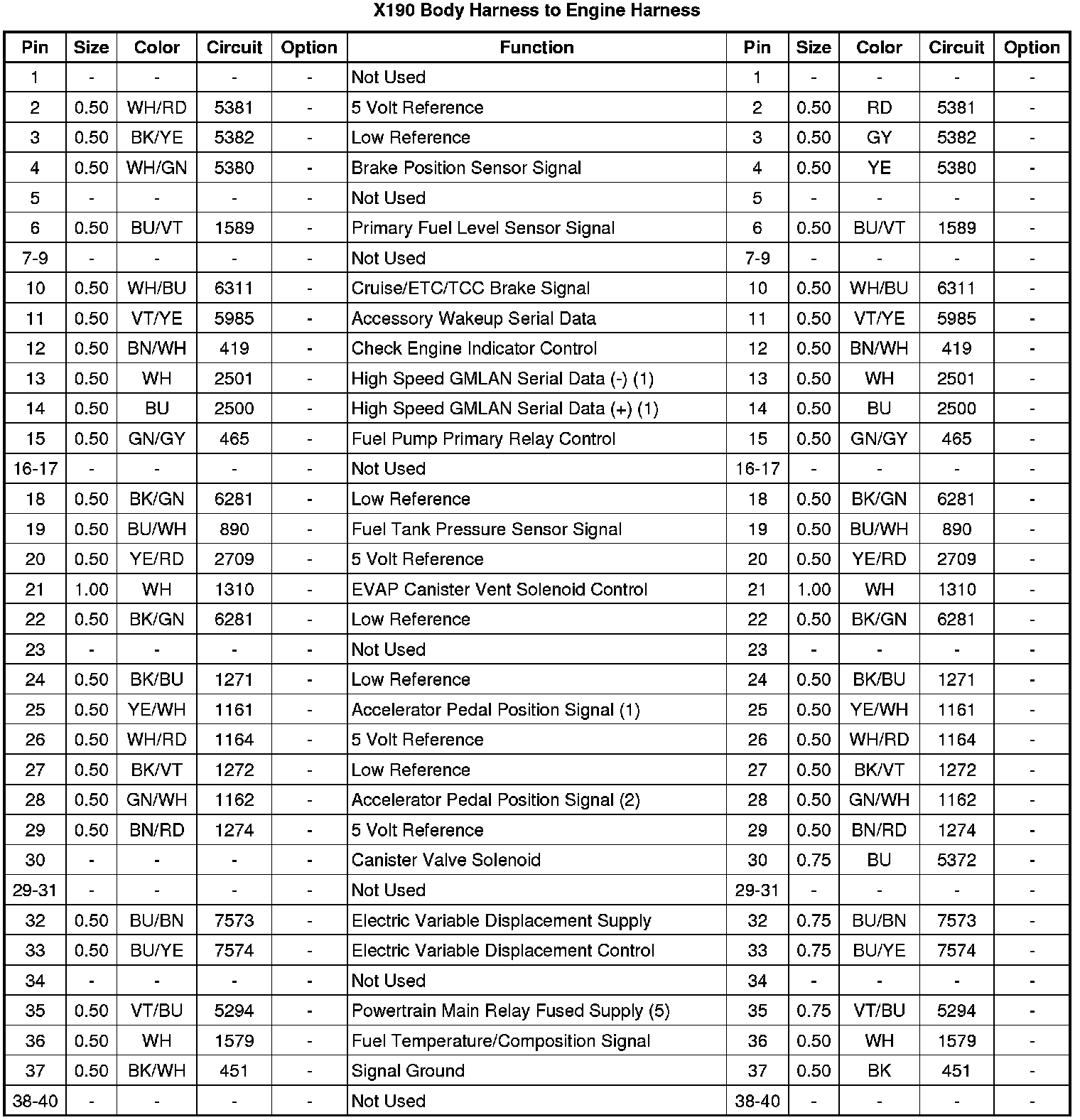

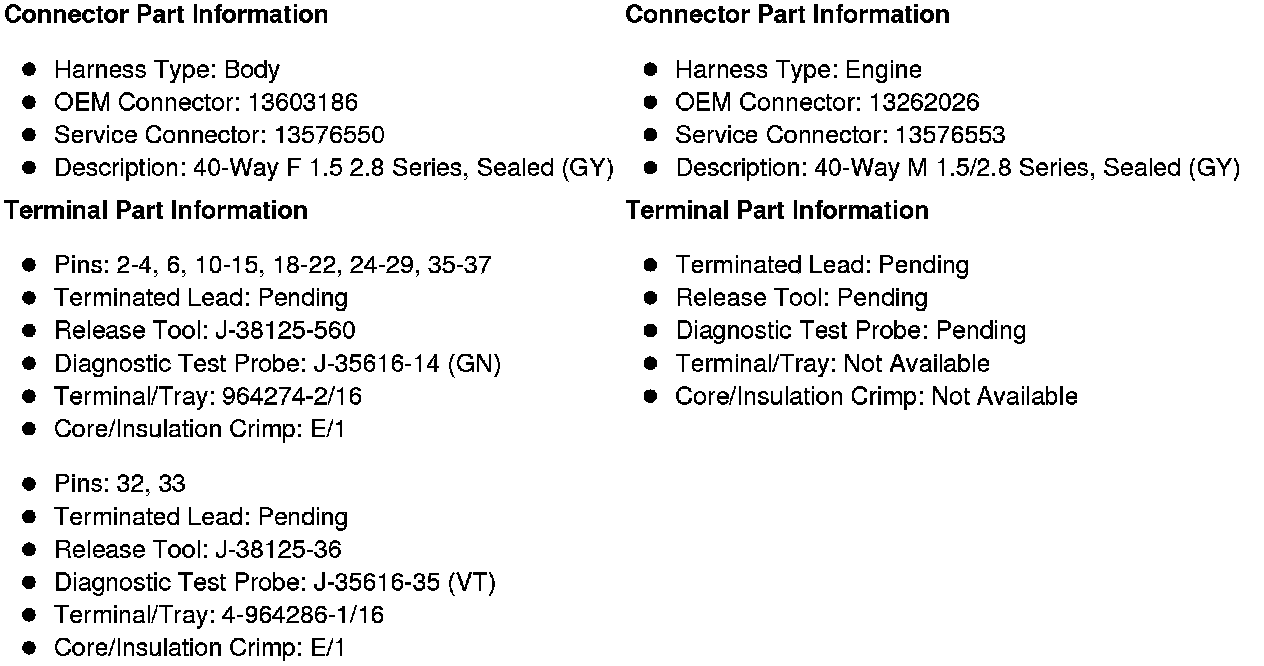

X190 Body Harness to Engine Harness
