Connector End Views By Name
>>
Transmission Shift Lever
Transmission Shift Lever
Component Connector End Views

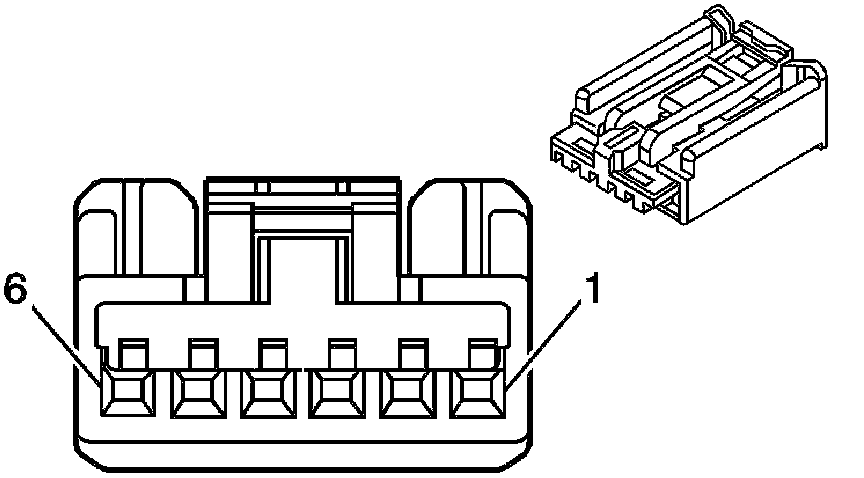

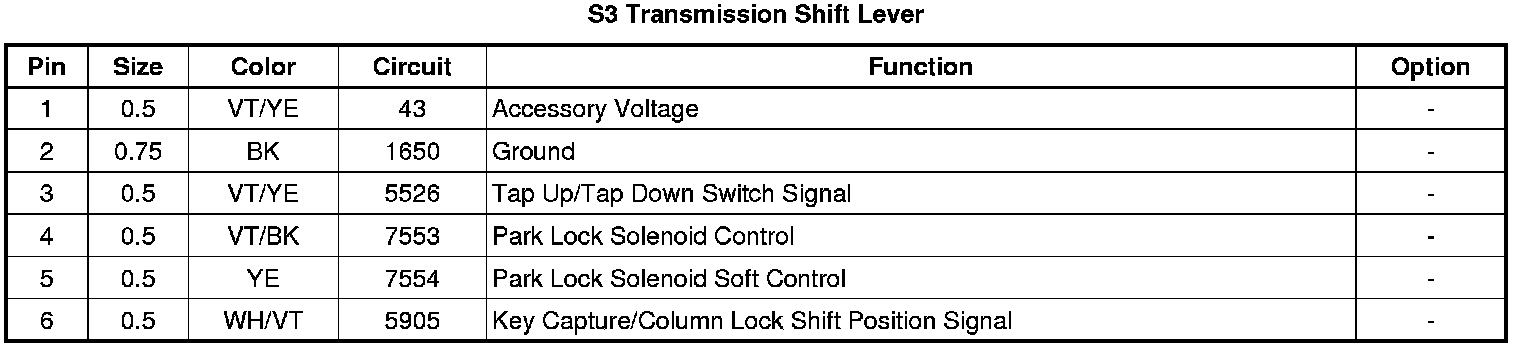

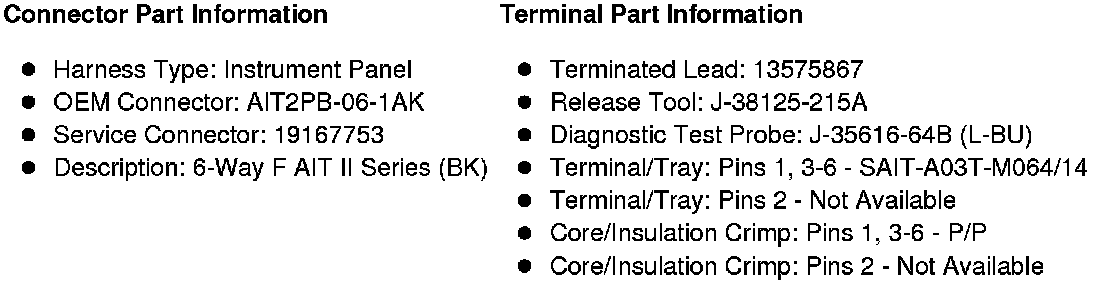

S3
Transmission
Shift Lever
