Seat Belt Retractor Pretensioner - Driver

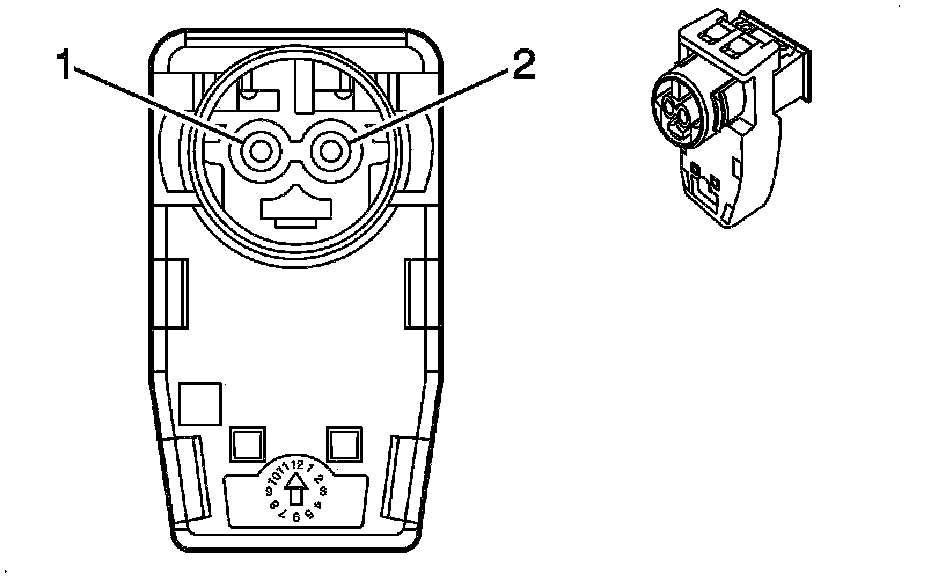

Component Connector End Views

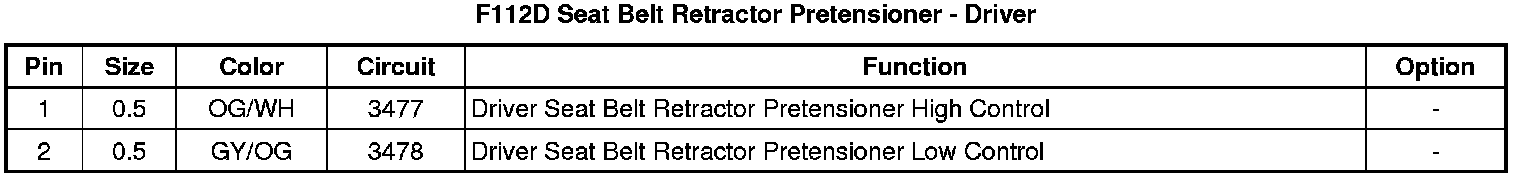

F112D Seat Belt Retractor Pretensioner - Driver
