Passenger Instrument Panel Air Bag

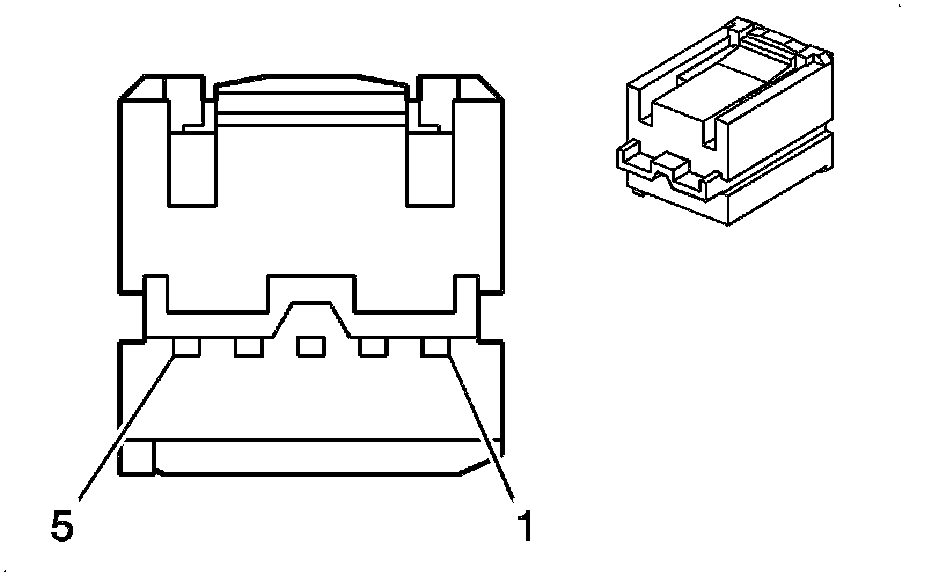

Component Connector End Views

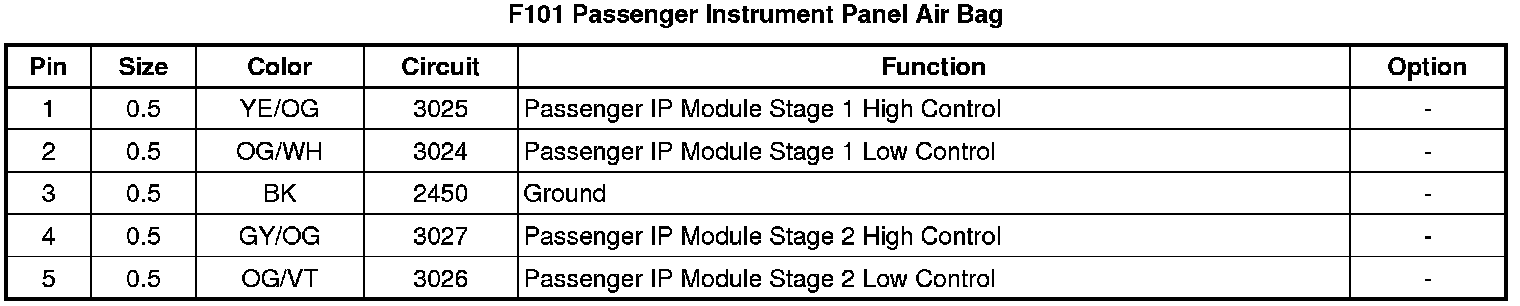

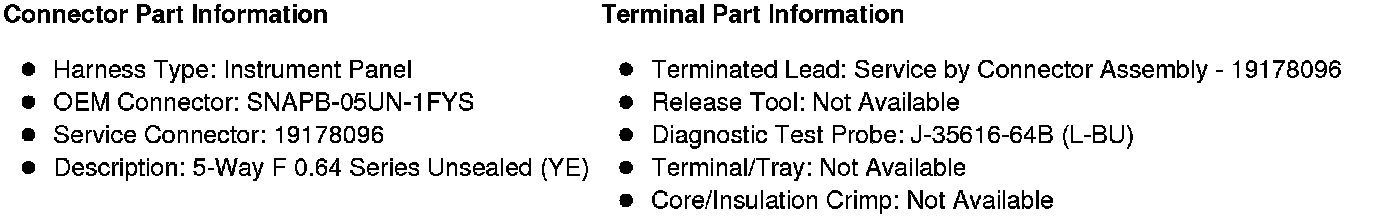

F101 Passenger Instrument Panel Air Bag
