Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Instrument Cluster

Instrument Cluster

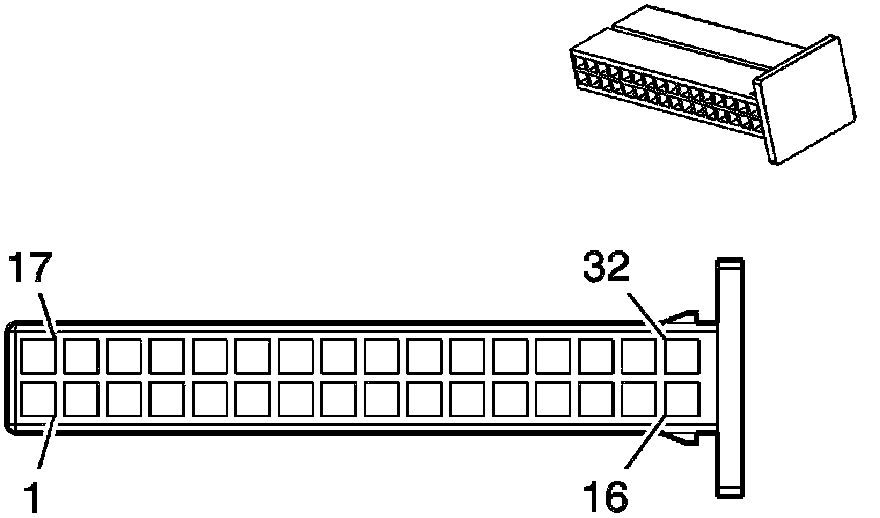

Component Connector End Views

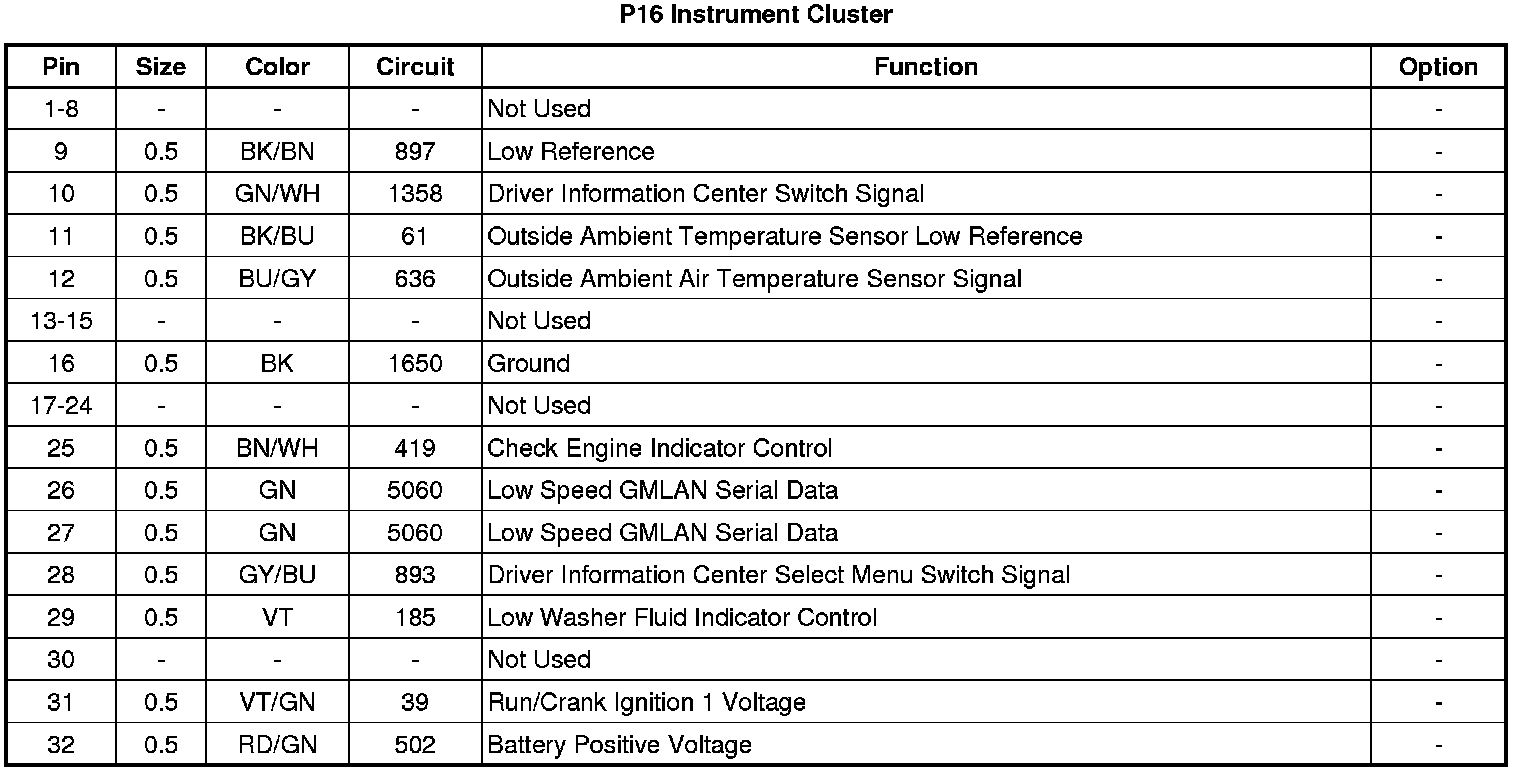

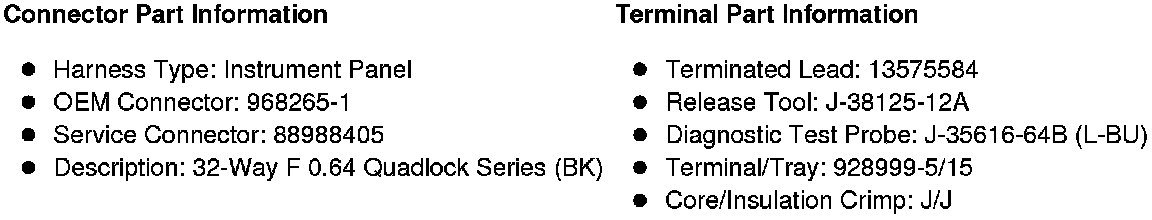

P16 Instrument Cluster
